VARO POWERPLUS GARDENPRO POWXG1032 Manual

VARO POWERPLUS GARDENPRO POWXG1032 Manual

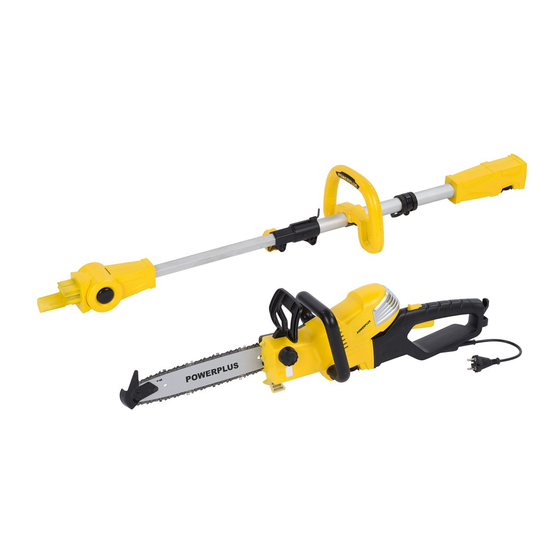

Multi function chainsaw 900w

Advertisement

Quick Links

1
APPLIANCE ....................................................................................... 3
2
DESCRIPTION (FIG 1) ....................................................................... 3
3
PACKAGE CONTENT LIST .............................................................. 3
4
SYMBOLS .......................................................................................... 4
5
GENERAL POWER TOOL SAFETY WARNINGS ............................ 4
5.1
Working area ............................................................................................................. 4
5.2
Electrical safety ......................................................................................................... 5
5.3
Personal safety ......................................................................................................... 5
5.4
Power tool use and care ........................................................................................... 5
5.5
Service ....................................................................................................................... 6
6
7
KICKBACK......................................................................................... 8
8
TRANSPORTING THE CHAINSAW .................................................. 8
9
BEFORE STARTING UP ................................................................... 8
10
INSTRUCTIONS FOR CUTTING ....................................................... 9
10.1
Tree logging .............................................................................................................. 9
10.2
Branches removal ..................................................................................................... 9
10.3
Trunk trimming .......................................................................................................... 9
11
STARTING UP THE MACHINE ......................................................... 9
11.1
Assembly of chain bar and chain ............................................................................. 9
11.2
Chain tensioning and adjustment check ............................................................... 10
11.3
Check of the chain oil level .................................................................................... 10
12
OPERATION .................................................................................... 10
12.1
To start ..................................................................................................................... 10
12.2
To stop ..................................................................................................................... 10
13
SAW CHAIN SHARPENING ............................................................ 10
14
CLEANING AND MAINTENANCE .................................................. 11
14.1
Guide bar maintenance ........................................................................................... 11
14.2
Sprocket tip lubrication: ......................................................................................... 11
14.3
Guide bar maintenance: ......................................................................................... 11
Copyright © 2016 VARO
POWXG1032
P a g e
| 1
EN
www.varo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWERPLUS GARDENPRO POWXG1032 and is the answer not in the manual?

Questions and answers

Summary of Contents for VARO POWERPLUS GARDENPRO POWXG1032

  • Page 1: Table Of Contents

    To stop ........................10 SAW CHAIN SHARPENING ............10 CLEANING AND MAINTENANCE ..........11 14.1 Guide bar maintenance ................... 11 14.2 Sprocket tip lubrication: ..................11 14.3 Guide bar maintenance: ..................11 Copyright © 2016 VARO P a g e www.varo.com...
  • Page 2 Guide bar ......................... 12 14.6 Chain maintenance ....................13 TROUBLESHOOTING ..............14 TECHNICAL DATA ................14 NOISE ....................15 STORAGE ..................15 WARRANTY ..................15 ENVIRONMENT ................16 DECLARATION OF CONFORMITY ..........16 Copyright © 2016 VARO P a g e www.varo.com...
  • Page 3: Appliance

    1 Telescopic bar 1 Guide bar cover 1 Auxiliary handle 1 Oil bottle 100ml (empty) 1 Handle press board 1 Spanner 1 Manual When parts are missing or damaged, please contact your dealer. Copyright © 2016 VARO P a g e www.varo.com...
  • Page 4: Symbols

    Power tools create sparks which may ignite the dust or fumes.  Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it. Copyright © 2016 VARO P a g e www.varo.com...
  • Page 5: Electrical Safety

    Store power tools, when not in use, out of the reach of children and do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users. Copyright © 2016 VARO P a g e www.varo.com...
  • Page 6: Service

    Never expose the chainsaw to rain or bad weather. Make sure there is enough light at the place of work. Do not use power tools in the vicinity of combustible liquids or gases. Copyright © 2016 VARO P a g e...
  • Page 7 On slopes the saw operator should stand to the upper or left or right side the trunk or lying tree, never to the bottom side.  Watch out for trunks rolling towards you. Kick-back! Copyright © 2016 VARO P a g e www.varo.com...
  • Page 8: Kickback

    Customer Service. (Be sure to read the section “Filling in chain oil and chain lubrication” on this point). Copyright © 2016 VARO P a g e www.varo.com...
  • Page 9: Instructions For Cutting

    Note: the guide bar retaining nuts are installed only hand tight at this point because saw chain adjustment is required. Follow instructions in section saw chain tension adjustment. Warning: always wear heavy duty gloves when handling saw chain or making saw chain adjustments Copyright © 2016 VARO P a g e www.varo.com...
  • Page 10: Chain Tensioning And Adjustment Check

     To switch the machine off, release the on/off switch trigger. 13 SAW CHAIN SHARPENING See fig 11 Copyright © 2016 VARO P a g e | 10 www.varo.com...
  • Page 11: Cleaning And Maintenance

    To help minimize bar wear, the following guide bar maintenance procedures are recommended. Warning: always wear protective gloves during maintenance operations. Do not carry out maintenance when the engine is hot. Copyright © 2016 VARO P a g e | 11 www.varo.com...
  • Page 12: Chain Sharpening

    Oil passages - oil passages on the bar should be cleaned to ensure proper lubrication of the bar and chain during operation. Copyright © 2016 VARO P a g e | 12...
  • Page 13: Chain Maintenance

    For the inexperienced chain saw user, we recommend that the saw chain be professionally sharpened by the nearest professional service center. If you feel comfortable sharpening your own saw chain, special tools are available from the professional service center. Copyright © 2016 VARO P a g e | 13...
  • Page 14: Troubleshooting

    9.5m/s Carbon brush motor Adjustable angle Automatic chain oiler Shaft diameter 32.6mm Chain type oregon Soft grip Safety guard Shaft type Telescopic Shaft length 1055mm Extended shaft length 1610mm Copyright © 2016 VARO P a g e | 14 www.varo.com...
  • Page 15: Noise

    Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase. Copyright © 2016 VARO P a g e | 15 www.varo.com...
  • Page 16: Environment

    EN ISO 11680-1:2011 EN55014-1: 2006 EN55014-2: 1997 EN61000-3-2: 2014 EN61000-3-3: 2013 Keeper of the Technical Documentation: Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V. The undersigned acts on behalf of the company CEO, Philippe Vankerkhove Regulatory Affairs – Compliance Manager 02/06/2015 Copyright ©...
