Summary of Contents for Eldes ESIM4

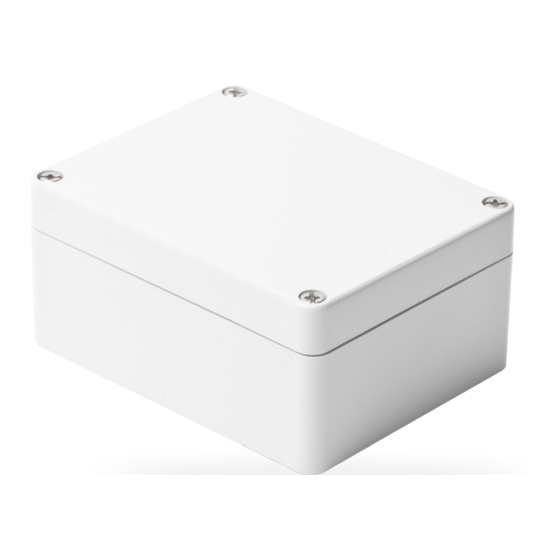

- Page 2 The device is working in SLEEP mode 3. Installation The system box should be fixed with four screws to the wall. Since the ESIM4 has integrated GSM antenna, it should 2.3. Wiring diagrams not be installed into the metal box. Four 1.5V Lithium AA Type batteries should be inserted to supply power for the Inputs Z1 and Z2 are connected to security unit PGM outputs if PGM are implemented as open collector ESIM4.
