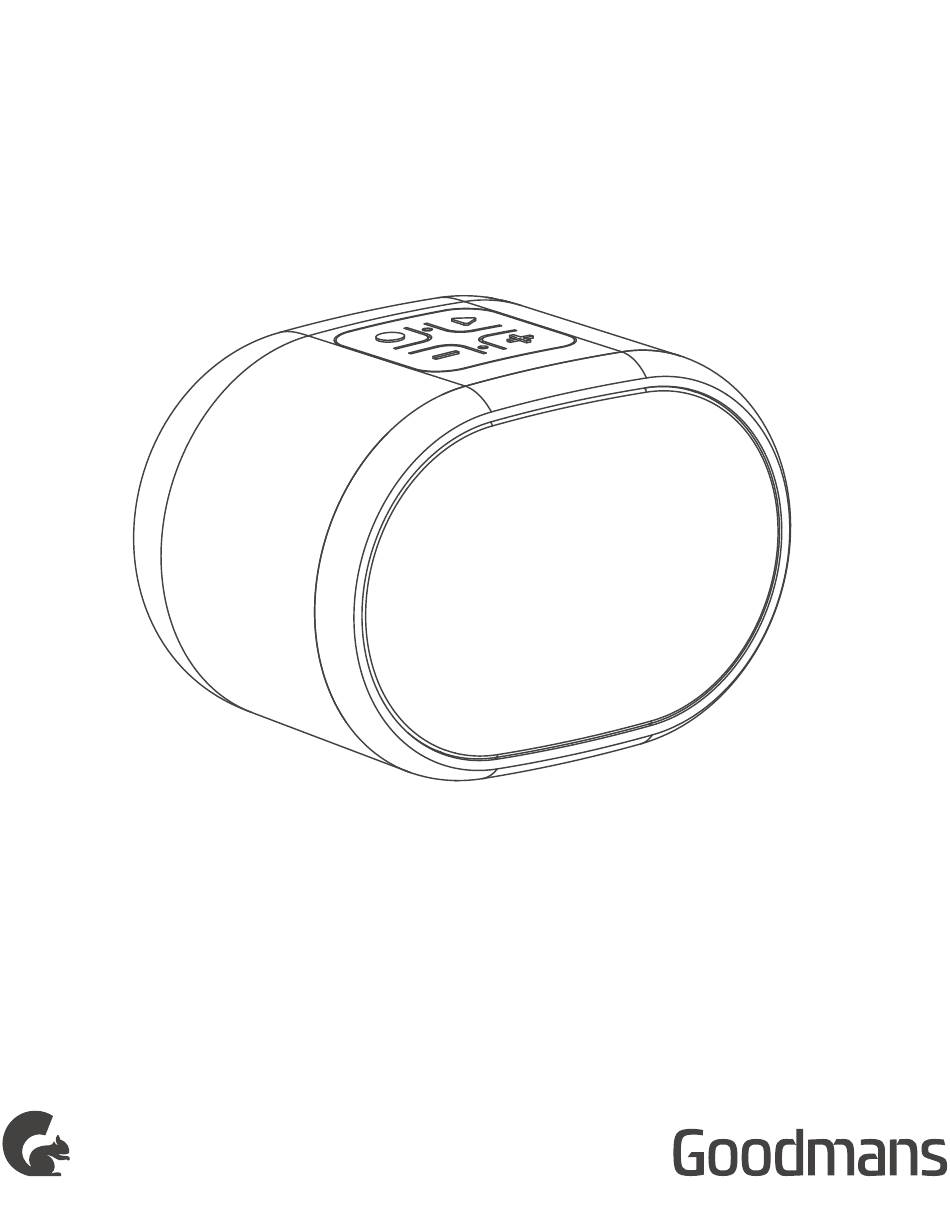

- Page 1 PORTABLE BLUETOOTH SPEAKER MODEL: 359704 USER MANUAL...
-
Page 2: Quick Setup
Welcome Your Portable Bluetooth Speaker In The Box Top View Front View Back View Quick Setup Charging Your Portable Bluetooth Speaker Pairing with a Bluetooth Device Playing Your Music Using the Line in Connection Using the USB Function Using the TF Card Function Troubleshooting Technical Specifications EC Declaration... - Page 3 Welcome Thank you for choosing this Goodmans product. We’ve been making electrical products for the British people for over 90 years. Each of our products have been carefully designed to be great at what they do and this one is no exception. We hope you enjoy your Portable Bluetooth Speaker.
-
Page 4: Top View
2.2 Top View Power ON / OFF Button Press and hold the button for 3 seconds to turn power ON or OFF. PLAY/PAUSE/CALL Press the button to Play / Pause / answer / end a call. Press and hold the button to refuse a call. Press the button twice to redial the last call. -
Page 5: Front View
2.3 Front View Speaker 2.4 Back View LINE IN Used to connect the speaker to devices without Bluetooth. USB Port Insert USB for playback music. TF Card Insert TF card for playback music. Micro USB Charging Port Used for charging the battery. - Page 6 Quick Setup 3.1 Charging Your Portable Bluetooth Speaker 1. Your Portable Bluetooth Speaker has a built in rechargeable battery. Before using it for the first time please fully charge the battery. 2. Insert the charging cable into the micro USB port on the unit. 3.
-
Page 7: Pairing With A Bluetooth Device
2. Using your Bluetooth phone or Bluetooth device, turn on Bluetooth and search for Bluetooth devices. 3. Select “GOODMANS MINI SPKR” from the list of devices. If you are asked for a pass code enter “0000”. 4. When successfully paired, you will hear “connected”. -
Page 8: Using The Usb Function
3.4 Using the Line-in Connection 1. If your device doesn’t have Bluetooth, you can use the Line-in connection. 2. Press and hold the power button to turn your speaker on and connect the line in cable to the Portable Bluetooth Speaker and connect the other end to your music device. - Page 9 3.6 Using the TF Card Function 1. Press and hold the power button to turn your speaker on. 2. Insert a TF card into the TF card slot. It will automatically play the music. Note: When you connected Line-in cable or insert USB / TF card, your Portable Bluetooth Speaker will automatically disconnect with your Bluetooth devices.
-
Page 10: Troubleshooting
Troubleshooting Problem What to do I can’t turn on my Recharge the built-in battery. Speaker I can’t pair the Turn on the Bluetooth Speaker. Bluetooth Speaker with my Bluetooth Make sure Bluetooth mode is selected device. and the blue indicator light is flashing. If the Blue indicator light is not flashing, it is already paired to another device. -
Page 11: Technical Specifications
Technical Specifications 359704 Model Number Bluetooth V 5.0 Bluetooth Specification DC 5V / 1000mA Input Voltage 3.7V / 1200mAh Built-in Battery 1 x 3W Speaker Output 80Hz - 18KHz Frequency Range L82(L) x 56(W) x 56(H) mm Dimension EC Declaration This product is intended for use within UK This Product complies with the below listed EU directives. - Page 12 Information on Waste Disposal for Consumers of Electrical & Electronic Equipment This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment (WEEE). Any WEEE marked waste products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
