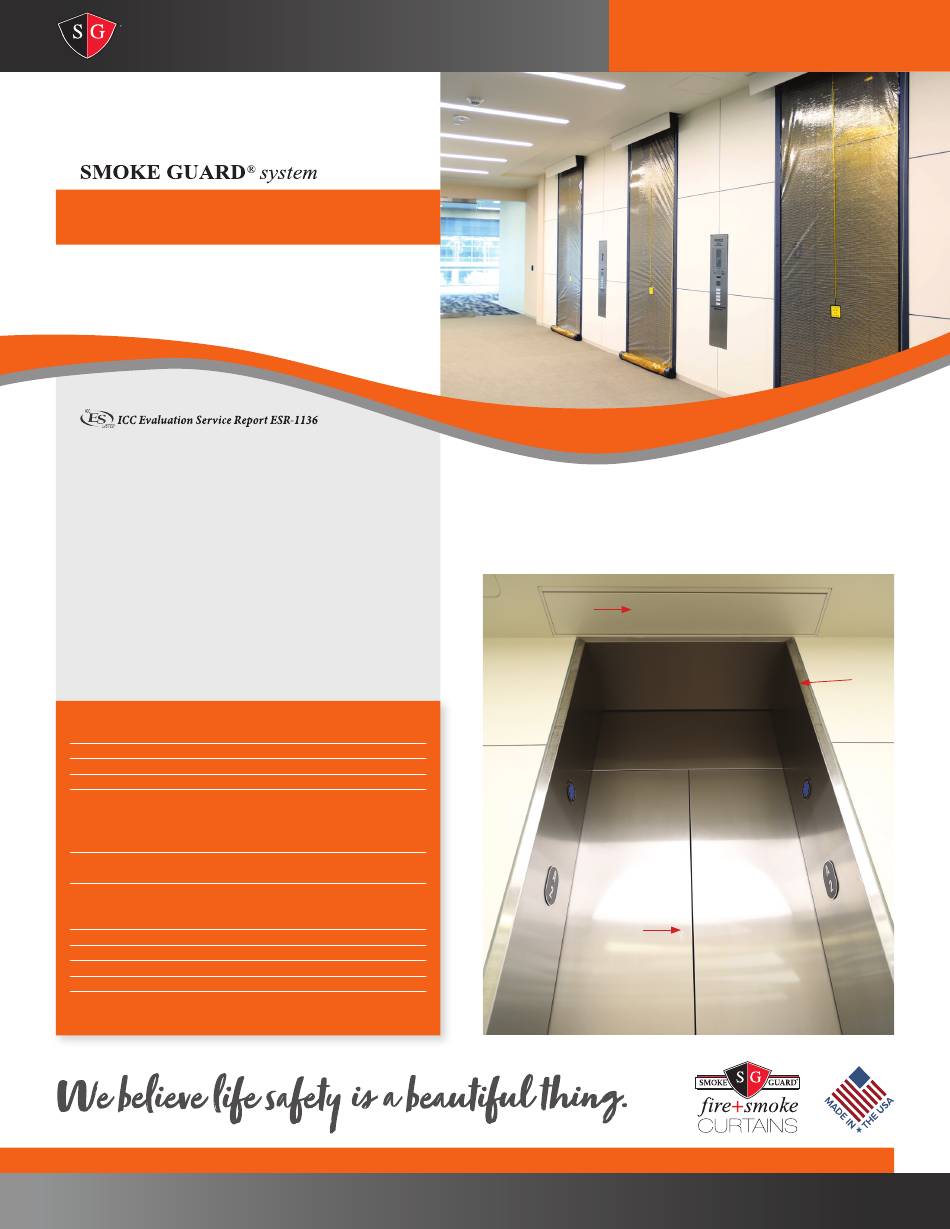

Smoke Guard 200 Quick Start Manual

Models 200/400
Elevator Smoke Curtain

System Description.

The Smoke Guard system
Models 200/400 (M200/M400) create a code
compliant smoke- and draft-control assembly
when paired with common fire-rated elevator
doors. The Smoke Guard DuraNet™ screen
assembly consists of a reinforced transparent
material connected to flexible magnetic strips.
These magnets adhere to either required
full-length ferrous metal rails (M200) or the
existing ferrous elevator door frame (M400) as
the system deploys creating a tight seal. M200/
M400 units use standard 120 VAC building
power and may be connected to standby power.

Dimensions

• Housing lengths: 55" and 64"
• Housing height: 10.5"
• Housing depth: 10"
• Return depth: 1"

Standards

• UL 1784 "Air Leakage Tests of Door Assemblies"
listed by Intertek
• UL 864 "Control Units for Fire Protective Signaling Systems"
listed by Intertek

Code References

• 2003 IBC Section 707.14.1
• 2006 IBC Section 707.14.1
• 2009 IBC Section 708.14.1
• 2012 IBC Section 713.14.1
• 2015 IBC Section 3006.1
• NFPA 105 "Installation of Smoke Control
Door Assemblies"
SGSO-1 • Rev. 2 • COPYRIGHT 2020 SMOKE GUARD,

Codes and Standards.

The M200/M400 systems work in
conjunction with fire-rated elevator doors to exceed the NFPA
and IBC requirements for a smoke and draft control assembly.
This enables the elevator to open directly onto the corridor.
System housing
Fire-rated
elevator door
