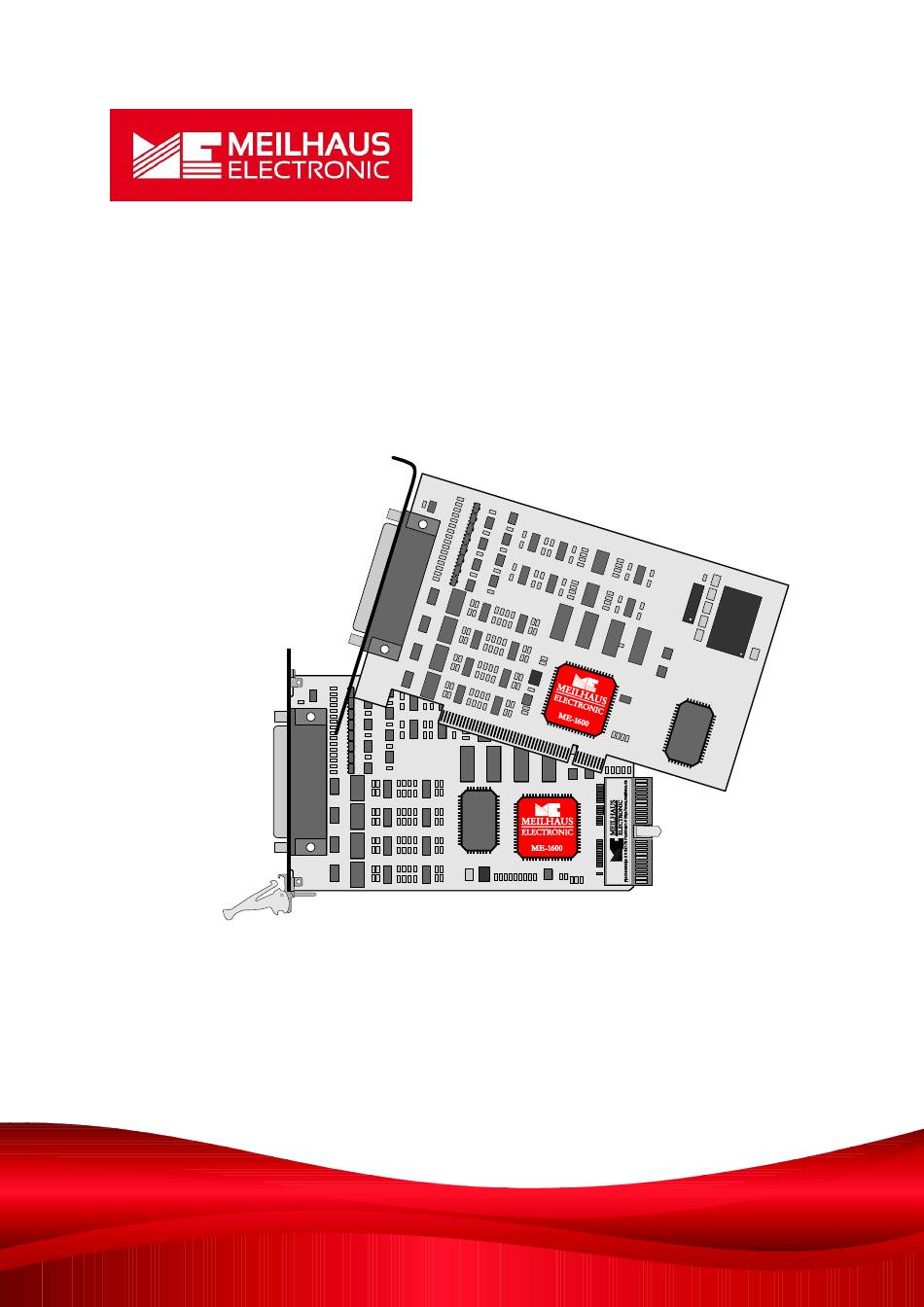

- Page 1 Meilhaus Electronic Manual ME-1600 Series (PCI- and CompactPCI-Versions) 12-bit D/A-Conversion Board with up to 16 Channels and optional Current Outputs...
- Page 2 Electronic assumes no responsibility for its use, any infringements of patents or other rights of third parties which may result from use of this manual or the product. Meilhaus Electronic assumes no responsibility for any problems or damage which may result from errors or omissions.
-
Page 3: Table Of Contents
Content Introduction ............5 Important Notes ............... 5 1.1.1 Use in Accordance with the Requirements ....... 5 1.1.2 Improper Application ............6 1.1.3 Unforseeable Misapplications .......... 6 1.1.4 Warning ................ 6 Package Contents ............. 7 Features ................7 System Requirements ............8 Software Support ............. - Page 4 Technical Questions ..............21 D1 Hotline ................21 Index ..................22...
-
Page 5: Introduction
Important Notes 1.1.1 Use in Accordance with the Requirements The PC boards of the ME series are designed for acquisition and output of analog and digital signals with a PC. Depending on type install the models of the ME series into:... -
Page 6: Improper Application
73/23/EWG. When putting the device into op- eration, especially with voltages greater than 42 V, please follow the appropriate standards, installation instructions and national safety standards. Meilhaus Electronic GmbH assumes no responsi- bility for damage in case of faulty installation, operation or handling. -
Page 7: Package Contents
Package Contents We take great care to ensure your delivery is complete. Nonethe- less, please check the list enclosed to verify the contents of your delivery. You should find included: D/A conversion board of the ME-1600 family for PCI- or CompactPCI-bus. ... -
Page 8: System Requirements
(32 bit, 33 MHz, 5 V). The board is supported by the Meilhaus Electronic Intelligent Driver System (ME-iDS). Software Support The ME-series is supported by the Meilhaus Electronic Intelligent Driver System (ME-iDS). The ME-iDS is a unique driver system cov- ering different devices and operating systems. It supports Win- dows 2000/XP/Vista and Windows 7, 8.1, 10 and contains a uni-... -
Page 9: Starting Up
First choose a di- rectory on your computer (e.g. C:\Temp\Meilhaus\ME-iDS). Use the Meilhaus Electronic Intelligent Driver System (ME-iDS) for programming your new data acquisition hardware. For installation and operation of the driver system, please follow the documenta- tion in electronic form included with the software package. -
Page 10: Hardware
Hardware Block Diagram * Depending on the version not all functional groups included in the block diagram above are available: 4 voltage outputs (U _0…3). ME-1600/4U: ME-1600/8U: 8 voltage outputs (U _0…7). ME-1600/12U: 12 voltage outputs (U _0…11). 16 voltage outputs (U _0…15). -
Page 11: D/A Section
D/A Section The DAC-boards of the ME-1600 family can output voltages (0…10 V, ±10 V) and optionally currents (0…20 mA, 4…20 mA). Each 4 channels are integrated into one 12-bit DAC-component (see also chapter programming from page 14 up). Attention: To guarantee a defined power-up condition please start your host computer first and do not power-up your external wiring until the driver started. -
Page 12: Voltage Outputs
Note: After changing the output range (e.g. from 0…10 V to ±10 V) the value written to the output register of the DAC will be newly interpreted and output immediately. For the pin configuration of the 78-pin female D-Sub see „Pinout of the 78-pin D-Sub female connector”... - Page 13 For operation of the constant-current-source an external voltage supply U is necessary, depending on the load resistor R and the current I to be kept constant. An extra charge of voltage of U 5 V for the output circuitry must be taken into account. Example: The load resistor R should be 1 kΩ...
-
Page 14: Programming
Programming For programming the device please use the Meilhaus Electronic In- telligent Driver System (ME-iDS) included in your package. The ME- iDS is a unique driver system covering different devices and operat- ing systems. It supports Windows 2000 and higher and contains a... -
Page 15: Single Value Output
IOUT 4…7 only ME-1600/16U8I DAC_C subdevice 8…11 UOUT 8…11 ME-1600/12U, (ME_TYPE_AO) ME-1600/16U, ME-1600/16U8I DAC_D subdevice 12…15 UOUT 12…15 ME-1600/16U, (ME_TYPE_AO) ME-1600/16U8I For wiring of the analog outputs please read chapter 3.2 on page 4.1.1 Single Value Output The analog output of a value (voltage/current) is done in operation mode „Single“. -
Page 16: Current Output
single channels is done by repeatedly calling the functions . Pass the constant ME_TRIG_CHAN_SYNCHRONOUS in parameter <TrigChan> of the function to prepare a channel for synchronous output. For the last channel to be included in the synchronous out- put you must pass the constant ME_IO_SINGLE_TYPE_ TRIG_SYN- CHRONOUS in parameter <Flags>... -
Page 17: Appendix
Appendix Specifications PCI-Interface Bus system Standard PCI (32 bit, 33 MHz, 5 V); (depends on model) CompactPCI (32 bit, 33 MHz, 5 V) Plug&Play-operation resources are assigned automatically Voltage Outputs Number 4, 8, 12 or 16 (depends on version) D/A converter Quad type, Burr-Brown DAC7624U Resolution 12 bit... - Page 18 General Information Power consumption at ME-1600/16U: typ. 1.5 A +5 V VCC-loading at the D-Sub approx. 2 A (depends on PC power supply) connector Physical size ME-1600 PCI: 174 mm x 98 mm (without mounting bracket and connector ) ME-1600 cPCI: 3-U-CompactPCI board Connectors 78-pin D-Sub female connector Operating temperature...
-
Page 19: B Pinout
Pinout Pinout D-Sub Connector *Depending on the version not all pins of the 78-pin D-Sub con- nector are available. -
Page 20: C Accessories
Accessories We recommend to use high-quality connector cables with single- shielded lines per channel. For further accessories please refer to the current Meilhaus Elec- tronic catalog and the internet: www.meilhaus.de/en/pc-boards/accessories/... - Page 21 Download-Server and Driver Update: To download current driver versions for Meilhaus Electronic devices as well as manuals in PDF format, please go to: www.meilhaus.org/driver Service Department with RMA Process: In case you need to return a board for repair purposes, we strongly ask you attach a detailed description of the error as well as infor- mation regarding your computer/system and the software used.
-
Page 22: Single Value Output
Index Accessories Operation Mode “Transparent” Appendix Output Ranges Block Diagram Package Contents Pinout Programming Current Outputs Single Value Output Software Installation Software Support D/A Section 11, 14 Specifications Starting up System Requirements Features Technical Questions Test Program Hardware Hotline Use in Accordance with the Requirements Important Notes Improper Application Voltage Outputs...
