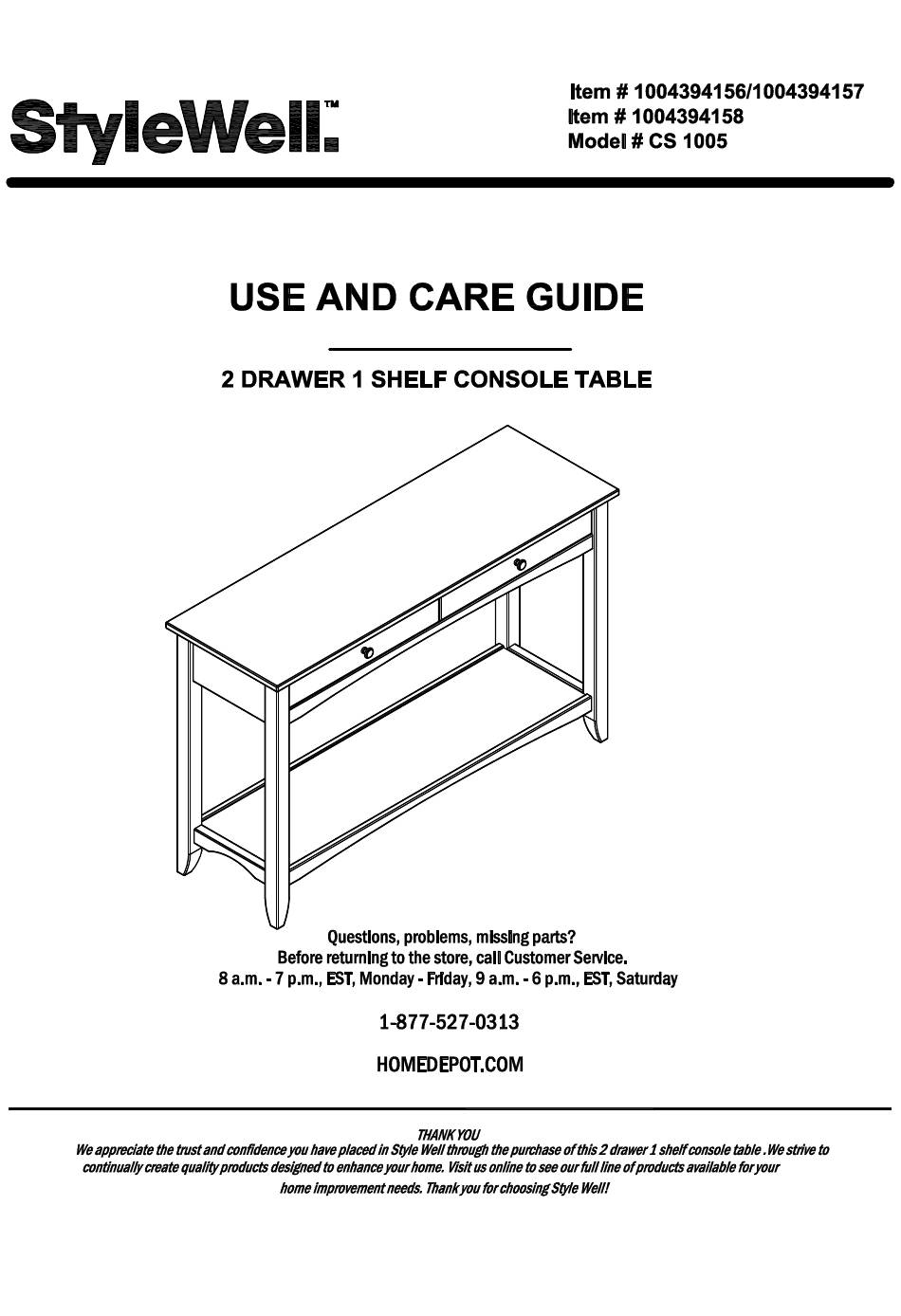

StyleWell CS 1005 Use And Care Manual

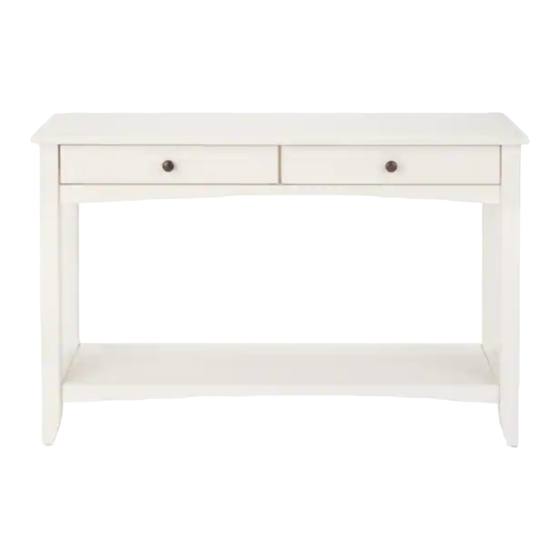

2 drawer 1 shelf console table
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS 1005 and is the answer not in the manual?

Questions and answers

Related Manuals for StyleWell CS 1005

Summary of Contents for StyleWell CS 1005

  • Page 2: Table Of Contents

    Table of Contents Tools Required ................. 3 Table of Contents ............2 Safety Information ............2 Hardware Included ..............3 Warranty ................. 2 Pre-assembly (continued) ..........4 1 Year Warranty ................ 2 Package Contents ..............4 What is Covered ............... 2 Assembly ...............

  • Page 3: Pre-Assembly

    Pre-assembly PLANNING ASSEMBLY Remove all Packaging materials , staples and packing straps form the carton . Refer to Parts List and Hardware List , and ensure parts and hardware are correct before assembly . Contact customer service for missing parts . Place all wooden parts on a clean , flat , and soft surface (e.g.carpet or rug) to prevent scratch and damage to parts .

  • Page 4: Pre-Assembly (Continued)

    Pre-assembly (continued) PACKAGE CONTENTS Part Quantity Descrlption Table Top Left side panel Right side panel Divider panel Back panel Rail panel Bottom panel Edge strip Drawer front panel Drawer back panel Drawer left side panel Drawer right side panel Drawer bottom panel...

  • Page 5: Assembly

    Assembly Lock the cam bolts and wood dowels Insert the cam bolts (CC) and wood dowels (AA&BB) into the left side panel (B) and right side panel (C) as below shown. HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
  • Page 6 Assembly (continued) Lock cam bolts and wood dowels Insert wood dowers (AA) into holes on the rail panel (F) as below shown. Lock cam bolts (CC) into 2 edge strip (H). Place top panel (A) on a flat and protected surface,lock cam bolts (CC) into it HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
  • Page 7 Assembly (continued) Insert wood dowers (AA) into holes on the bottom panel (G) and back panel (E) Insert wooden dowel (AA&BB) into divider panel (D) HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
  • Page 8 Assembly (continued) Connect edge strip (H) and bottom panel (G) with cam lock (DD) as below shown HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
  • Page 9 Assembly (continued) Connect bottom panel (G), rail panel (F)and back panel (E) with cam lock (DD). HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
  • Page 10 Assembly (continued) Connect right side panel (C) with cam lock (DD) from step 7 HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
  • Page 11 Assembly (continued) Lock screw (EE) to tighten back panel and divider panel as shown HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
  • Page 12 Assembly (continued) Connect top panel (A) with cam lock (DD) as below shown HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
  • Page 13 Assembly (continued) Install the drawer Lock cam bolts (CC) into drawer front panel(I),connect drawer side panel (K&L) to front panel with cam lock(DD) insert the bottom panel(M),and tighten the drawer back panel(J) with screw(EE), assemble the handshandle (KK) with screw (JJ). DDX2 CC CC HOMEDEPOT.COM...
  • Page 14 Assembly (continued) Use screwdriver to tighten the strap(FF) with screw(GG) and washers (II) as shown HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
  • Page 15 Assembly (continued) Use the screwdriver to tighten strap with screw (EE) ,washers (II) and wall anchor (HH) into the wall,insert wooden dowel(BB) to prevent drawer slipping out HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.

  • Page 16: Maintenance

    Maintenance Keep the product away from direct heat and sunlight . Prolonged exposure to heat sources may cause scorching, or even cause color to fade . Regular vacuuming or light brushing helps to remove dirt and prevent soil build-up, which increases the appearance of wear . Periodically (every 90 days) make sure that the screws arefully tightened .
  • Page 17 Questions, problems, missing parts? Before returning to the store, call Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use.
