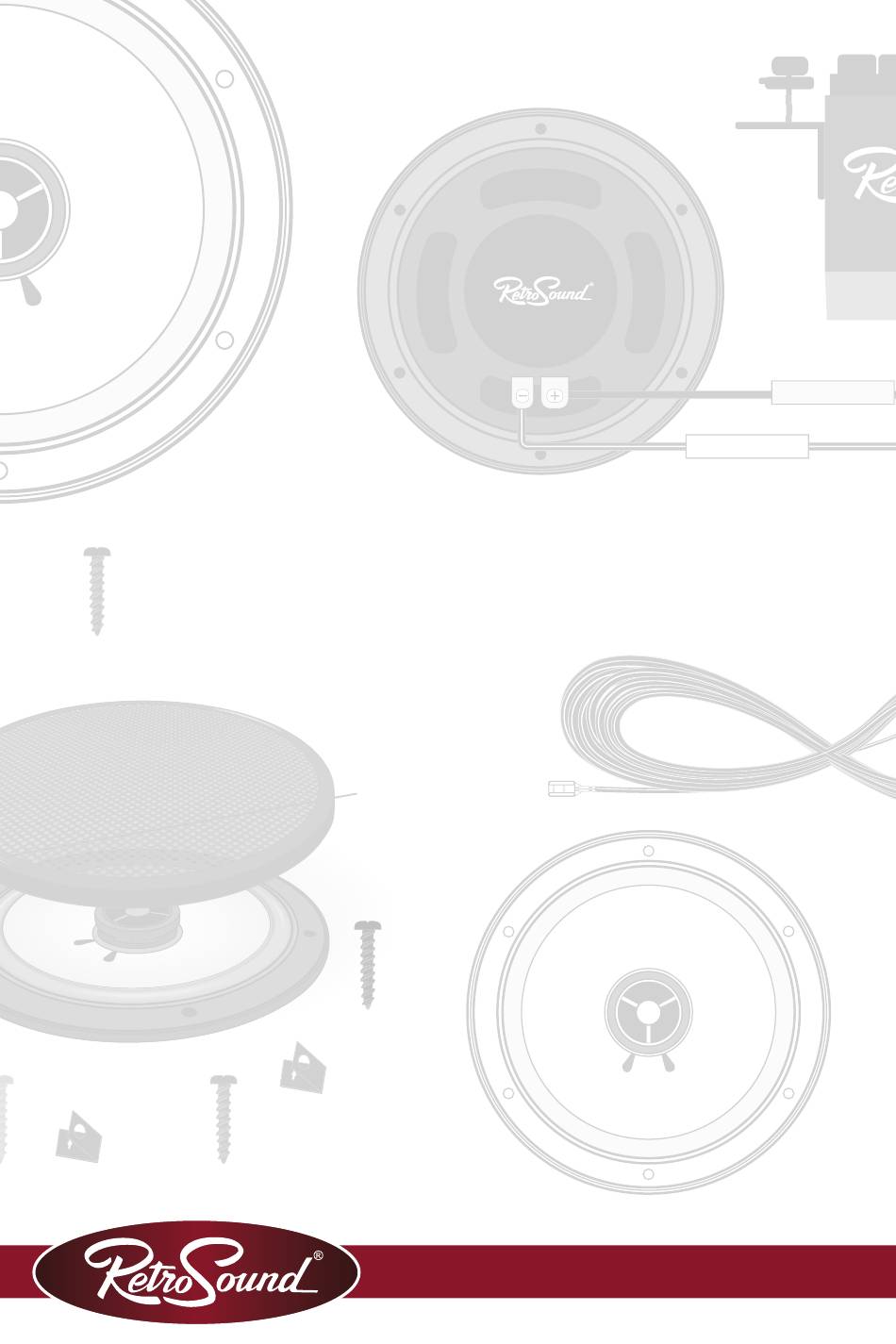

- Page 1 POSITIVE NEGATIVE POSITIVE TERMINAL NEGATIVE TERMINAL (SMALL) STEREO SPEAKERS STEREO SPEAKERS USER MANUAL MODERN SOUND FOR YOUR CLASSIC...
- Page 2 WELCOME Thank you for purchasing RetroSound® Stereo Speakers. RetroSound® Stereo Speakers offer high-quality sound at an exceptional value and are specifically designed for optimal performance in your classic vehicle. Precautions It is best to consult a professional installation specialist to help with your installation.
- Page 3 INSTALLATION Included in your speaker box are two speakers, two speaker grills (on select models), two sets of speaker wire, and mounting hardware. In addition, you may need a Phillips screwdriver, handheld drill, 1/8-inch drill bit, wire strippers, wire crimpers, or wire cutters to complete this installation. Screws (x8) Speaker Wire Speakers (x2)
- Page 4 INSTALLATION Step #4 Connect the Speakers Feed the speaker wires through the speaker opening and connect to the speaker terminals. Connect the negative wire to the negative (-) speaker terminal and positive to the positive (+) speaker terminal. POSITIVE NEGATIVE POSITIVE TERMINAL (LARGE) NEGATIVE TERMINAL (SMALL) help.retromanufacturing.com...
- Page 5 INSTALLATION TIP: How to Remove Speaker Grills To remove speaker grills either pull up on the grills ring (Type A) or push down on the grills ring (Type B). Type A Type B PULL UP PUSH DOWN Step #5 Mount the Speakers Fit the speaker into the cutout and secure it using the supplied screws.
- Page 6 SPECIFICATIONS SPECIFICATIONS STANDARD SERIES STANDARD SERIES MODEL MODEL S-42 S-42 S-52 S-52 S-412 S-412 S-62 S-62 Nominal Diameter (inch) Nominal Diameter (inch) 5.25 4x10 Description Description 2-Way 2-Way 3-Way 2-Way Nominal Impedance Nominal Impedance 4ohm 4ohm 4ohm 4ohm Frequency Response...
- Page 7 WARRANTY Your unit comes with a manufacturer’s warranty covering any defects in materials and workmanship. Retro Manufacturing, LLC (collectively referred to as “the warranter”), at its option, will either (a) repair your unit with new or refurbished parts or (b) replace it with a new or refurbished unit.
- Page 8 7470 Commercial Way | Henderson, NV 89011 help.retromanufacturing.com w w w . r e t r o m a n u f a c t u r i n g . c o m MODERN SOUND FOR YOUR CLASSIC retromanufacturing Published: 08/11/21 | ©2021 Retro Manufacturing, LLC www.retromanufacturing.com...
