- Page 1 STEREO DASH STEREO DASH REPLACEMENT SPEAKERS REPLACEMENT SPEAKERS USER MANUAL ADIO CHASSIS GROUND FRONT (+) LEFT CHANNEL POSITIVE TERMINAL (LARGE) NEGATIVE TERMINAL (S RIGHT CHANNEL NEGATIVE TERMINAL (SMALL) MODERN SOUND FOR YOUR CLASSIC...

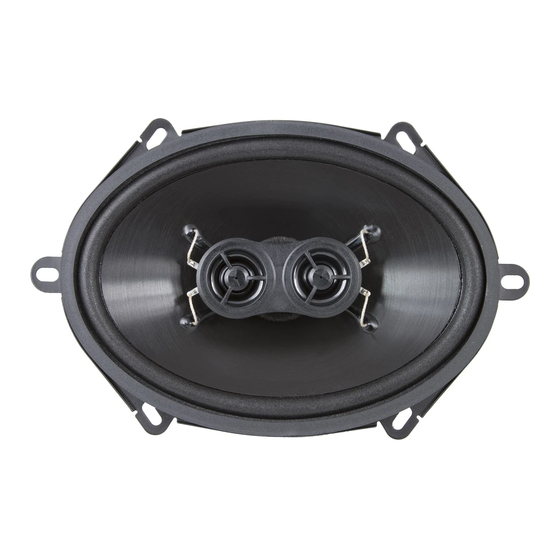

- Page 2 Triax™ Stereo Replacement Dash ® Speaker. RetroSound® Triax™ Dash Replacement Speakers feature a dual voice coil design with two flush mount tweeters (left and right) to deliver a stereo mix from a single speaker location. These speakers offer high power handling with excellent bass response in a slim design for when space is at a premium.
- Page 3 RETROSOUND WIRING DIAGRAM RetroSound Triax™ dash speakers allow you to connect both the left and ® right stereo channels to a single speaker, offering a stereo mix from a single speaker location. WARNING: This wiring method is for aftermarket radios rated at 4 ohms RetroSound ®...
- Page 4 OEM WIRING DIAGRAM RetroSound Triax™ speakers can also be wired in series using the included 8ohm wiring kit for factory radios requiring an 8ohm speaker. RADIO WARNING: These wiring methods are only for OE factory radios rated at 8 to 10 ohms...
- Page 5 UNIVERSAL SPEAKER BRACKET Universal Speaker Bracket RS-UB1KT Universal Speaker Bracket RS-UB1KT This 14-inch bracket, when installed in the threaded mounting point at the rear of our dash speaker, allows you to make your own custom speaker bracket. You can also modify the bracket to solve challenging installations where no other options are available.
- Page 6 SPECIFICATIONS STANDARD SERIES STANDARD SERIES Specifications are subject to change without notice MODEL MODEL D-52 D-52 D-62 D-62 D-572 D-572 D-412 D-412 Nominal Diameter (inch) Nominal Diameter (inch) 5.25 5 x 7 4 x 10 Description Description Nominal Impedance Nominal Impedance 4+4ohm 4+4ohm 4+4ohm...
- Page 7 LIMITED WARRANTY Your unit comes with a manufacturer’s warranty covering any defects in materials and workmanship. Retro Manufacturing, LLC (collectively referred to as “the warranter”), at its option, will either (a) repair your unit with new or refurbished parts or (b) replace it with a new or refurbished unit.
- Page 8 7470 Commercial Way | Henderson, NV 89011 help.retromanufacturing.com w w w . r e t r o m a n u f a c t u r i n g . c o m MODERN SOUND FOR YOUR CLASSIC retromanufacturing Published: 06/23/21 | ©2021 Retro Manufacturing, LLC www.retromanufacturing.com...
