American Standard RENAISSANCE 2732 Series Installation Instructions

RENAISSANCE
HIGH GLOSS ACRYLIC
INSTALLATION INSTRUCTIONS
2732 SERIES BATHING POOL
32-3/4"
(832mm)
19-3/4"(H)
(502mm)
18-1/4"(C)
(464mm)
DIMENSIONS OF FIXTURES ARE NOMINAL AND MAY VARY WITHIN THE RANGE
OF TOLERANCES ESTABLISHED BY ANSI STANDARDS CSA B45.5/IAPMO Z124.

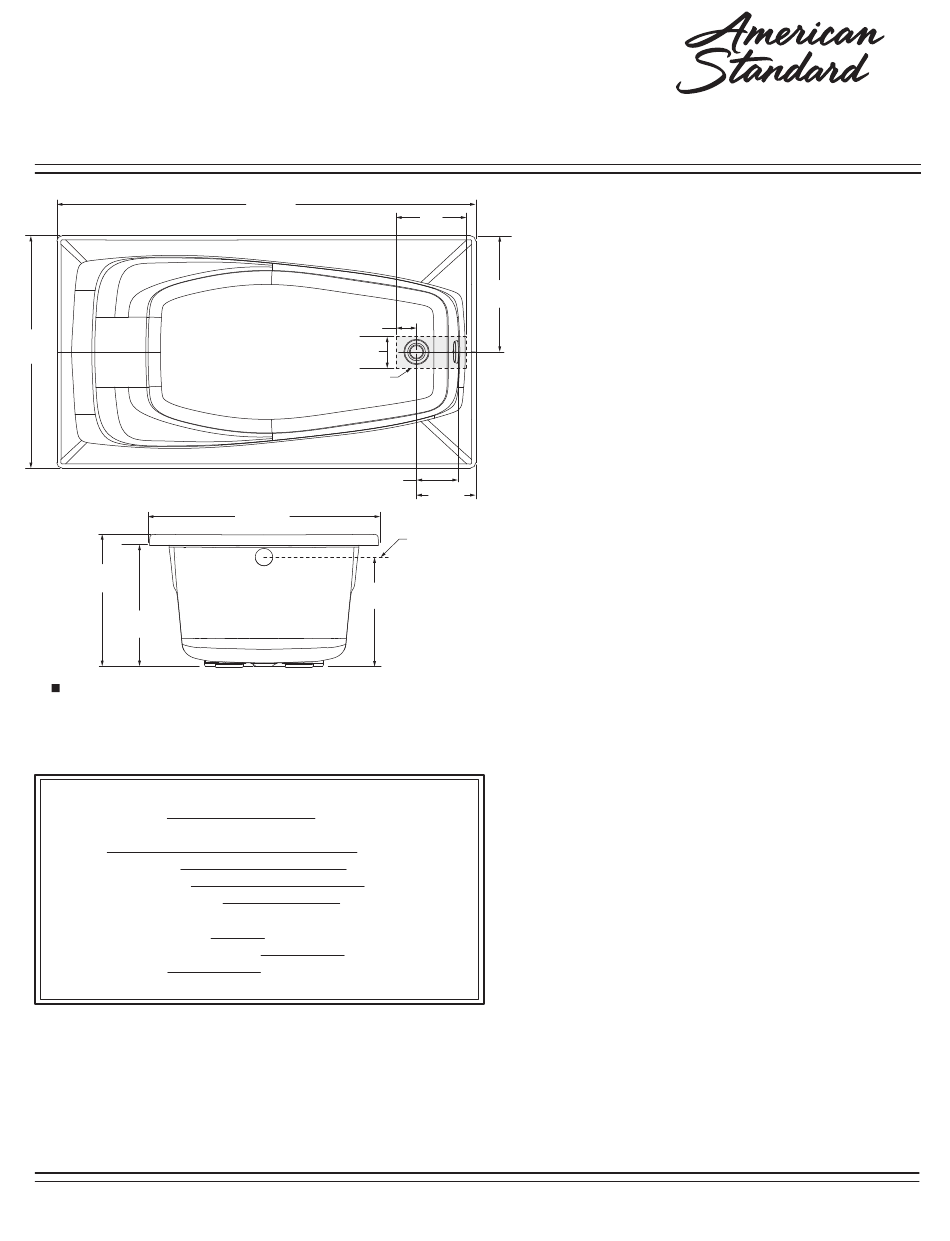

GENERAL SPECIFICATIONS FOR 2732 BATHING POOL
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
NOTE: Deck-mounted fittings are not recommended.
FOR AFTER-SALES SERVICE CALL 1 (800) 442-1902
© AS America, Inc. 2016
All product names listed herein are trademarks of AS America, Inc. unless otherwise noted.
®
60"
(1524mm)
(305mm)
3"
(76mm)
6"
(152mm)
CUT OUT IN FLOOR
FOR DRAIN
5-7/8"
(149mm)
32-3/4"
(832mm)
C/L OF
OVERFLOW
16-1/2"
(419mm)
60 x 32-3/4 x 19-3/4 In.
(1524 x 832 x 502mm)
55 Lbs. (25 Kg.)
524 Lbs. (237 Kg.)
55 Gal. (208 L.)
42-5/8 x 19-1/4 In.
(1082mm x 489mm)
52 x 26-1/2 In. (1321mm x 673mm)
13-3/4 In. (350mm)
43 Lbs./Sq. Ft. (213 Kgs/Sq. m.)
T HA NK YOU...
12"
for selecting an American Standard bath. Your new bath
is shipped to you after careful inspection.
For product quality or installation issues, we would like
to hear from you. Please do not hesitate to call American
16-1/2"
(419mm)
Standard at 800-442-1902.
List of Optional Components
(not included and sold separately):
• Tile Bead Kit 751755-100
- helpful when installing in an alcove with tile walls
• Apron Kit 9260.018
- Acrylic apron/skirt for alcove installation
8-1/2"
List of Required Components (not included):
(216mm)
• Drain 1599.500.020 Deep Soak (recommended)
- White finish
• Wall-mounted tub or tub/shower faucet
List of Required Tools and Supplies:
Tools
• Level
• Tape Measure
• Pipe Wrench
• Slip Joint Pliers
• Screw Driver
• Standard Woodworking Tools
• Personal Safety Equipment
• Caulking Gun
GENERAL INSTALLATION INFORMATION
Carefully uncrate and inspect your new bath for any
shipping damage. If such damage is found, report it
immediately. After inspection and during installation,
protect the bath from construction damage using a drop
cloth. Before installation, and before enclosing with
wallboard, tile, etc., the bath must be filled with water
to check for leaks that may have resulted from
shipping damage or mishandling! Fittings (bath filler,
shower arm, drain, etc.) are not provided with the bath
and must be ordered separately. Framing and enclosing
materials are provided by others.
Supplies
• Nails
• Putty
• Caulking (waterproof)
• 1 x 4 Stringers
• Drop Cloth
• Cement, Plaster, Grout
752480-100 Rev. H 8/16
