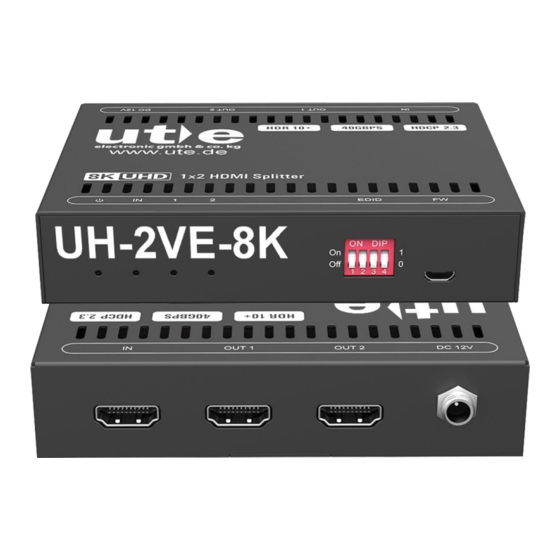

UTE UH-2VE-8K User Manual

8k 1x2 hdmi 2.1 splitter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
UH-2VE-8K
8K 1x2 HDMI 2.1 Splitter
All Rights Reserved
Version: UH-2VE-8K_2021V1.0
www.ute.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UH-2VE-8K and is the answer not in the manual?

Questions and answers

Related Manuals for UTE UH-2VE-8K

Summary of Contents for UTE UH-2VE-8K

  • Page 1 User Manual UH-2VE-8K 8K 1x2 HDMI 2.1 Splitter All Rights Reserved Version: UH-2VE-8K_2021V1.0 www.ute.de...
  • Page 2 UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter Statement Thanks for purchasing this product, please read this user manual carefully before using this product. Pictures are shown in this manual for reference only. Different models and specifications are subject to real product.
  • Page 3 UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter Safety Precaution To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Do not dismantle the housing or modify the module to avoid electrical shock or ⚫...

  • Page 4: Table Of Contents

    UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter Contents 1 Introduction ....................... 1 Product Introduction ..................1 Features......................1 Packing List ....................1 2 Panel Description ...................... 2 Front Panel ....................2 Rear Panel ..................... 3 3 System Connection ....................4 Usage Precautions ..................4 System Diagram UH-2VE-8K .................

  • Page 5: Introduction

    1 Introduction 1.1 Product Introduction Thanks for choosing the 1x2 8K HDMI 2.1 Splitter UH-2VE-8K, which can distribute one HDMI input to two outputs. The splitter supports HDMI video resolution up to 8K@60Hz 4:2:0 10bit, HDR 10, HDR 10+, Dolby Vision, and multichannel audio formats.

  • Page 6: Panel Description

    UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter 2 Panel Description 2.1 Front Panel Figure 2-1 UH-2VE-8K Front Panel ① POWER LED: The LED illuminates green when the unit is powered on. ② INPUT LED: The LED illuminates blue when there is HDMI input.

  • Page 7: Rear Panel

    UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter 2.2 Rear Panel OUT 1 OUT 2 DC 12V Figure 2-2 UH-2VE-8K Rear Panel ① INPUT: Type-A female HDMI input port to connect a HDMI source. ② OUTPUTS: Two type-A female HDMI output ports to connect HDMI displays.

  • Page 8: System Connection

    3) All of the power switches, plugs, sockets and power cords should be insulated and safe. 3.2 System Diagram UH-2VE-8K The following diagram illustrates the typical input and output connection that can be utilized with 8K 1x2 HDMI2.1 Splitter UH-2VE-8K: Figure 3-1 Connection and System Diagram U.T.E. electronic GmbH & Co. KG www.ute.de...

  • Page 9: Dip Switch Operation

    UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter 4 DIP Switch Operation 4.1 EDID Management The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with the connected display. By default, the source device obtains its EDID from the first connected display.

  • Page 10: User Defined Edid Setting

    Represents the audio format. ⚫ Example: EC_11_720P_LPCM.bin Power on the splitter UH-2VE-8K, and then connect the splitter to the PC with USB cable (not included). The PC will automatically detect a U-disk named of “BOOTDISK”. Double-click the U-disk, a file named of “READY.TXT” would be showed.

  • Page 11: Firmware Upgrade

    UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter 5 Firmware Upgrade Please follow the below steps to upgrade firmware by the Micro-USB port: Step1. Connect the splitter to the PC with USB cable (not included). Step2. Power on the splitter, and then the PC will automatically detect a U-disk named of “BOOTDISK”.

  • Page 12: Technical Specification

    UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter 6 Technical Specification Video Input Input (1) HDMI Input Connector (1) Type-A female HDMI HDMI Input Resolution Up to 8K@60Hz 4:2:0 10bit HDMI Standard Supported HDR and HDR10+ Supported Dolby Vision HDCP Version 2.3, 2.2, 1.4 compliant...
  • Page 13 UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter General Bandwidth 40Gbps 8K@60Hz 4:2:0 ≤ 3m, 4K@60Hz 4:4:4 ≤ 5m, HDMI V2.1 Cable Length 4K@60Hz 4:2:0 ≤ 10m, 1080p ≤ 15m Operation Temperature -5 to +55℃ (+23° to +131°F) Storage Temperature -25 to +70℃ (-13° to +158°F)

  • Page 14: After-Sales / Customer Service

    UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter 7 After-sales / Customer Service Any transport costs are borne by the users during the warranty. The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice.
  • Page 15 UH-2VE-8K: 8K60 1x2 HDMI 2.1 Splitter 5) Technical Support: Email to our after-sales department or make a call, please inform us the following information about your cases. ⚫ Product version and name. ⚫ Detailed failure situations. ⚫ The formation of the cases.
  • Page 16 U.T.E. electronic GmbH & Co. KG Tel: +49-2302-28283-0 Fax: +49-2302-28283-10 Email: info@ute.de Website: www.ute.de...
