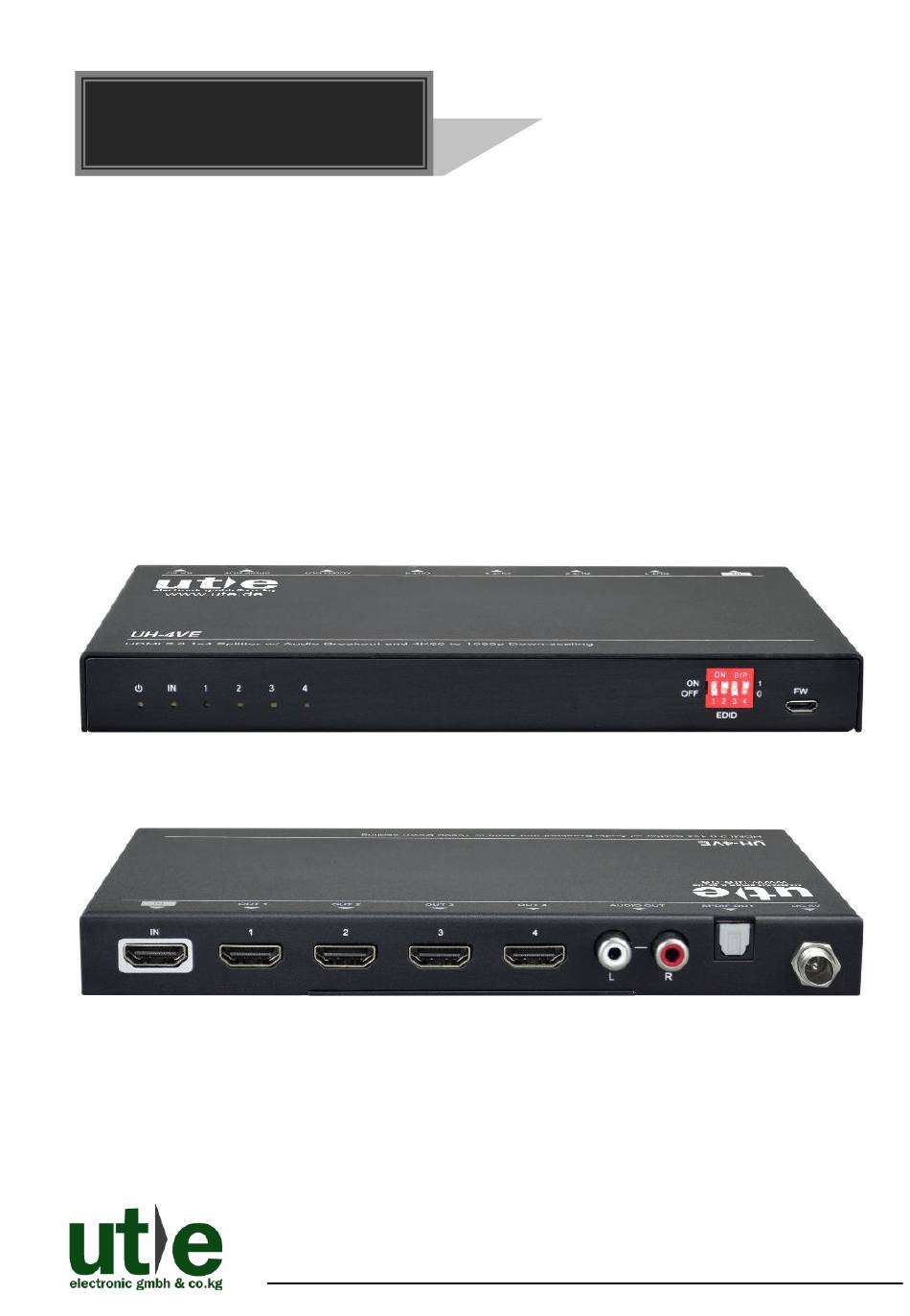

- Page 1 User Manual UH-4VE HDMI 2.0 1x4 Splitter with Audio Breakout and 4K to 1080P Down-scaling All Rights Reserved Version: UH-4VE_2018V1.0 www.ute.de...
- Page 2 UH-4VE: HDMI 2.0 1x4 Splitter w. Audio Breakout and Down- scaling U.T.E. electronic GmbH & Co. KG www.ute.de...
- Page 3 UH-4VE: HDMI 2.0 1x4 Splitter w. Audio Breakout and Down- scaling Preface Read this user manual carefully before using the product. Pictures are shown in this manual for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
- Page 4 UH-4VE: HDMI 2.0 1x4 Splitter w. Audio Breakout and Down- scaling SAFETY PRECAUTIONS To ensure the best performance from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ⚫...
-
Page 5: Table Of Contents
UH-4VE: HDMI 2.0 1x4 Splitter w. Audio Breakout and Down- scaling Table of Content 1. Introduction ......................... 1 1.1 Product Introduction ..................1 1.2 Features ......................1 1.3 Packing List ....................... 2 2. Panel Description ......................2 2.1 Front Panel ......................2 2.2 Rear Panel ...................... -
Page 6: Introduction
1. Introduction 1.1 Product Introduction Thanks for choosing the one input to four output HDMI2.0 Splitter UH-4VE. The splitter supports HDMI video resolution up to 4K@60Hz 4:4:4, 1080P 3D and multichannel audio formats. Besides passing EDID information from the display, there are multiple built-in EDID settings can be selected by the 4-pin DIP switch on the front panel. -
Page 7: Packing List
UH-4VE: HDMI 2.0 1x4 Splitter w. Audio Breakout and Down- scaling 1.3 Packing List 1x UH-4VE: HDMI 2.0 1x4 Splitter ⚫ 2x Mounting Ears with 4 Screws ⚫ 4x Plastic Cushions ⚫ 1x Power Adapter (5V DC 1A) ⚫ 1x User Manual ⚫... -
Page 8: Rear Panel
UH-4VE: HDMI 2.0 1x4 Splitter w. Audio Breakout and Down- scaling 2.2 Rear Panel Figure 2-2 UH-4VE Rear Panel ① IN: Type-A female HDMI input port to connect HDMI source. ② OUT 1 ~ OUT 4: Four Type-A female HDMI output port to connect HDMI displays. -
Page 9: System Connection
UH-4VE: HDMI 2.0 1x4 Splitter w. Audio Breakout and Down- scaling 3. System Connection 3.1 Usage Precautions 1) Make sure all components and accessories included before installation. 2) System should be installed in a clean environment with proper temperature and humidity. - Page 10 UH-4VE: HDMI 2.0 1x4 Splitter w. Audio Breakout and Down- scaling The switch represents “0” when in the lower (OFF) position, and it represents “1” while putting the switch in the upper (ON) position. Switch 1~3 are used for EDID setting. The DIP switch status and its corresponding setting are shown at the back of the product.
-
Page 11: Hdcp Mode
ON (1) Active output for broader video solution. 5. Video Resolution Down-scaling The UH-4VE supports video resolution down-scaling, the 4K input can be automatically degraded to 1080P output for compatibility with 1080P display, shown in the below chart. Input Output... -
Page 12: Firmware Upgrade
Please follow the below steps to upgrade firmware by the Micro-USB port: Step1. Connect the splitter to the PC with USB cable. Step2. Power on the HDMI 2.0 1x4 Splitter UH-4VE, and then the PC will automatically detect a U-disk named of “BOOTDISK”. -
Page 13: Technical Specification
UH-4VE: HDMI 2.0 1x4 Splitter w. Audio Breakout and Down- scaling 7. Technical Specification Video Input Input (1) HDMI Input Connector (1) Female type-A HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 HDMI Standard HDCP Version 2.2, 1.4 compliant Video Output... - Page 14 UH-4VE: HDMI 2.0 1x4 Splitter w. Audio Breakout and Down- scaling before clipping) <0.3dB, 1KHz sine at 0dBFS level (or max level before L-R Level Deviation clipping) Frequency Response <±0.5dB 20Hz ~ 20KHz Deviation 1KΩ and higher (supports 10x paralleled 10KΩ loads)
-
Page 15: Panel Drawing
UH-4VE: HDMI 2.0 1x4 Splitter w. Audio Breakout and Down- scaling 8. Panel Drawing Figure 8-1 Panel Drawing of UH-4VE U.T.E. electronic GmbH & Co. KG www.ute.de... -
Page 16: Troubleshooting & Maintenance
UH-4VE: HDMI 2.0 1x4 Splitter w. Audio Breakout and Down- scaling 9. Troubleshooting & Maintenance Problems Potential Causes Solutions The connecting cables may Check whether the cables not be connected correctly are connected correctly and Colour losing or no video or it may be broken. -
Page 17: After-Sales/ Customer Service
UH-4VE: HDMI 2.0 1x4 Splitter w. Audio Breakout and Down- scaling 10. After-sales/ Customer Service Any transport costs are borne by the users during the warranty. The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. - Page 18 UH-4VE: HDMI 2.0 1x4 Splitter w. Audio Breakout and Down- scaling 5) Technical Support: Email to our after-sales department or make a call, please inform us the following information about your cases. ⚫ Product version and name. ⚫ Detailed failure situations.
- Page 19 UH-4VE: HDMI 2.0 1x4 Splitter w. Audio Breakout and Down- scaling U.T.E. electronic GmbH & Co. KG www.ute.de...
- Page 20 U.T.E. electronic GmbH & Co. KG Tel: +49-2302-28283-0 Fax: +49-2302-28283-10 Email: info@ute.de Website: www.ute.de...
