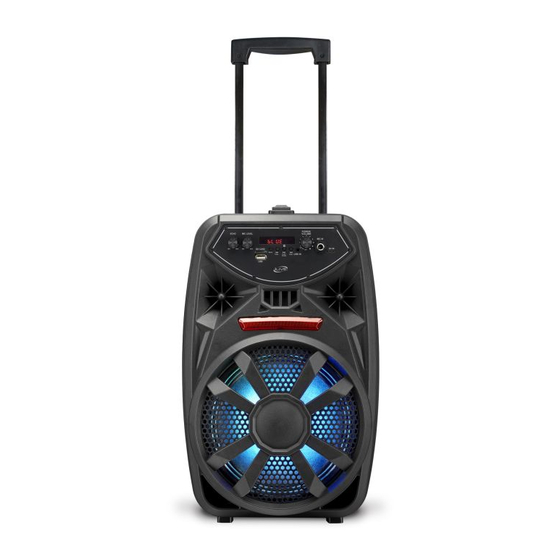

iLive ISB380 v2425-01 User Manual

Portable Wireless Tailgate Speaker
User's Guide for Model ISB380 v2425-01
Important Safety Instructions
FCC Warnings
Features
Bluetooth 5.0 wireless - range 60 ft.
Voice prompts announce speaker functions
Single 8" speaker
Retractable pull handle and wheels
LED display
Digital FM radio with auto scan
Microphone input
Microphone echo control
3.5mm Line In
Micro SD and USB media ports - supports MP3
file format
Built-in rechargeable battery
Battery life: approx. 2.5 hrs at 50% volume
Includes
USB cable for battery recharge
User's Guide
Carry Handle
Additional Warnings and Precautions
CAUTION
WARNING
CAUTION:
WARNING:
WARNING:
WARNING:
Overview
Control Panel
1. Echo: Adjust microphone echo effect.
2. Microphone Volume: Adjust microphone
volume level.
3. Display: Shows battery level, FM radio
frequency, audio track info, and source info for
the speaker and microphones.
4. Power/Volume: Turn to power ON and adjust
volume level.
5. Microphone Input: When in use, the
microphone will always be heard, regardless of
the source input.
6. DC Power Input & Charge Indicator LED:
Use to charge the internal battery and power
the speaker.
1
Retractable
Pull Handle
Wheels
7.
8.
9.
10.
11.
12. Line In (3.5mm Input)
2 3
7 8 9 10 11
WARNING
WARNING:
Micro SD Card Port
USB Media Port
Mode: Press to change audio source between
Bluetooth, Line In, and FM. Long press to turn
the light On/Off.
/Tune± : Short press to skip audio
tracks (BLUETOOTH/USB) or radio presets (FM).
Long press to scan for the next available FM
radio station (FM).
/ Pair/ : Press and hold to begin pairing
to a Bluetooth device (BLUETOOTH). Press to
play or pause tracks (BLUETOOTH, USB).
4 5 6
12
