CLS PiXelbar 36
CLS PiXelbar 36
- 1-
www.cls-led.com
CLS Manuals
CLS Atmosphere LED-panel
INTRODUCTION:

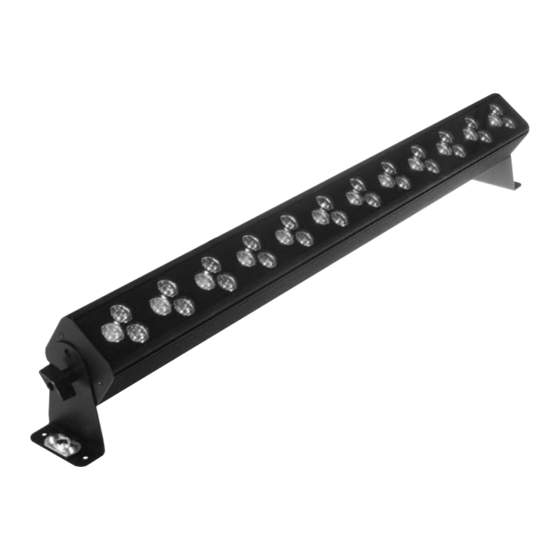

Thank you for selecting the CLS PiXelbar 36. The CLS PiXelbar 36 is a universal DMX-controlled luminary
that uses 36 Luxeon® I LEDs to create an even light-output. Its numerous rigging facilities makes it the
perfect choice for rental companies worldwide.
The CLS PiXelbar 36 features:
• Built-in electronic power supply
• DMX input & output
• DMX 512 controlable
• 20 built-in fixed colours
• 9 built-in fade programs
Included items
The CLS PiXelbar 36 is shipped in one package containing the following items:
• 1 CLS PiXelbar 36
• 1 neutrik input power connection plug
• 2 floor brackets
• 1 user manual
Optional accessories
• 25° lens (standard mounted on the fixture)
• CLS PiXelbar optional 25 x 45° lens
• CLS PiXelbar optional lens holder 25 / 25 x 45°
• Diffuser / frost filter
• PiXelbar floor bracket
• Special G-clamp with wingbolt, black
• CLS Omega bracket for coupling of PiXelbar
• CLS cable 80cm XLR 3P complete
• CLS cable 1,5mtr XLR 3P complete
• CLS cable 3mtr XLR 3P complete
• CLS cable 5mtr XLR 3P complete
• CLS cable 10mtr XLR 3P complete
• CLS cable 15mtr XLR 3P complete
• CLS cable 20mtr XLR 3P complete
NOTE: It is important to read this manual before you install ore use this product.
Version 1.2 March 2009
(item nr. 875600)
(item nr. 946411)
(item nr. 875750)
(item nr. 875700)
(item nr. 875705)
(item nr. 875720)
(item nr. 875730)
(item nr. 875750)
(item nr. 875760)
(item nr. 704811)
(item nr. 911200)
(item nr. 911201)
(item nr. 911203)
(item nr. 911205)
(item nr. 911206)
(item nr. 911207)
(item nr. 911209)
- 2 -
www.cls-led.com
Advertisement
Table of Contents
Related Manuals for CLS PiXelbar 36
Summary of Contents for CLS PiXelbar 36
- Page 1 CLS Atmosphere LED-panel INTRODUCTION: Thank you for selecting the CLS PiXelbar 36. The CLS PiXelbar 36 is a universal DMX-controlled luminary that uses 36 Luxeon® I LEDs to create an even light-output. Its numerous rigging facilities makes it the perfect choice for rental companies worldwide.
- Page 2 Wiring diagram OPERATION DETERMINATIONS The CLS PiXelbar 36 is made for indoor use only. If the unit has been exposed to drastic temperature changes, do not switch it on immediately. The arising condensation might damage your unit. Leave the unit switched off till it has reached room temperature.
- Page 3 * The slave units must be set on DMX add. 001 when running the Master / Slave function. The Slave unit follows the Master unit’s functions. When the PiXelbar 36 is in slave mode and receiving DMX from the M enu Master unit, the display shows --- and the DMX LED is burning.
- Page 4 CLS-LED BV. Other legal information can be found in our General conditions to be found on the back of your CLS-LED BV invoice or on our website www.cls-led.com/Conditions.pdf...
