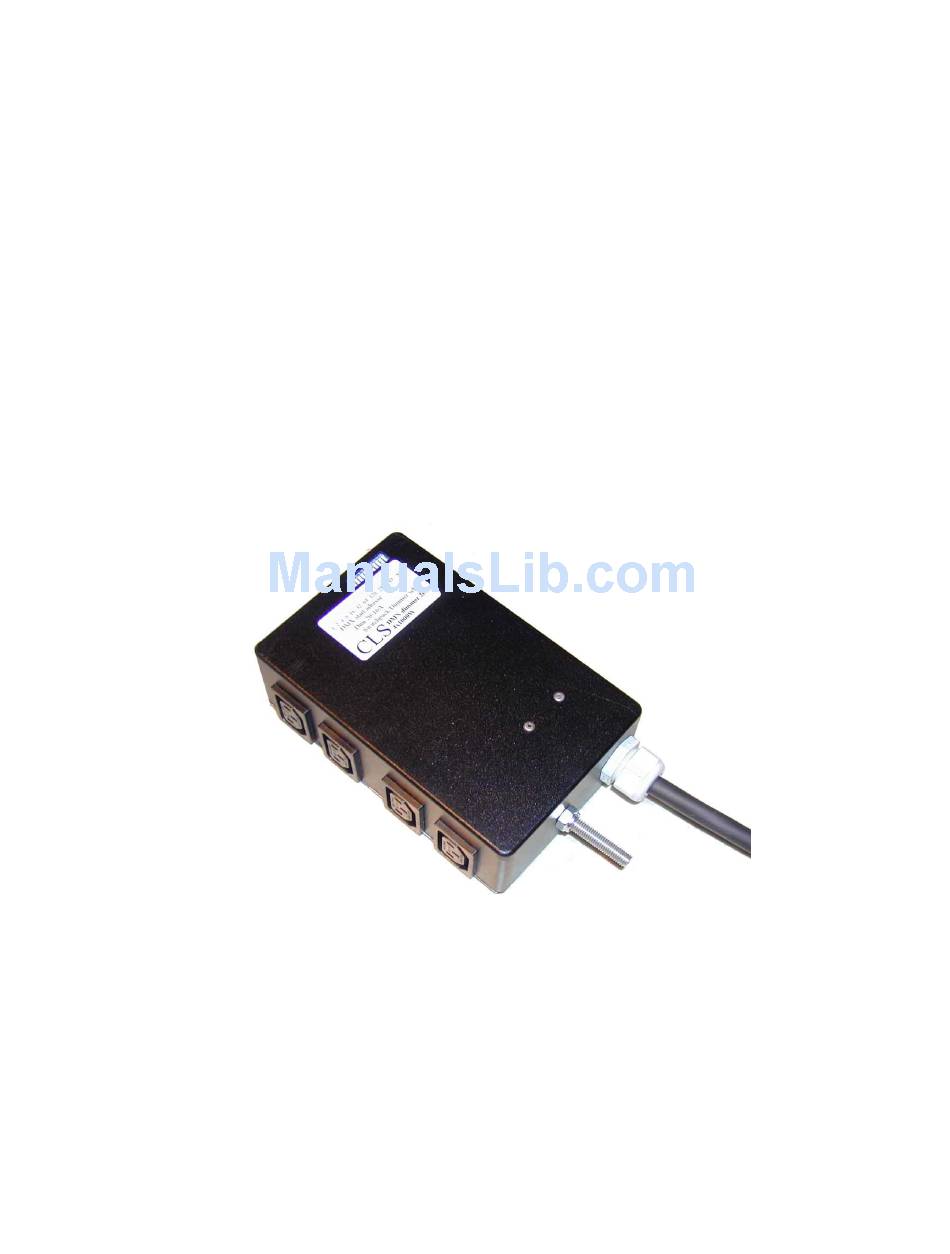

- Page 1 DMX4 4 Channels DMX Dimmer User Manual 2000 Made in Norway by Compact Light System AS www.cls.no - office@cls.no Produced for CLS by Siemens productionsystem, SONEC AS, OSLO...
- Page 2 The CLS DMX 4 Channel Dimmer The CLS DMX4 dimmer Specifications: DMX 512(1990) standard protocol 4x1000W-Total max load: 20A Noiseless on PA Mounting in the truss/lightstands etc. together with the lamps CLS Low-Heat-System DMX in/out by Neutriks 3-pin XLR Dip-switch settings for:...
- Page 3 4xPar64 with CP62=4x1000W=4000W total. Normally you need a connector for 20A to run all of them on full power. The CLS DMX4 dimmer has a special function. If you turn on the Dip-switch nr. 10, you will be able to use it on a 16A outlets without any risk of blowing the 16A fuse.
- Page 4 Channel Dimmer. Remember that the unit use 4 channels. If you set the first channel as number 1, The CLS DMX 4 Channel Dimmer will use channel 1-4. The second unit should be set to number 5. The CLS DMX 4 Channel Dimmer will then use channel 5-8.
- Page 5 The CLS DMX 4 Channel Dimmer Directions for use: The CLS DMX 4 Channel Dimmer is a high class quality product, and it is constructed solid to be used "on the road" for years. It looks very small to be used proffesional in theatres and big stages, but that's just the look.
