CONDTROL SCAN User Manual page 4

ELECTRICAL WIRING AND
EN
HARDWARE SCANNER

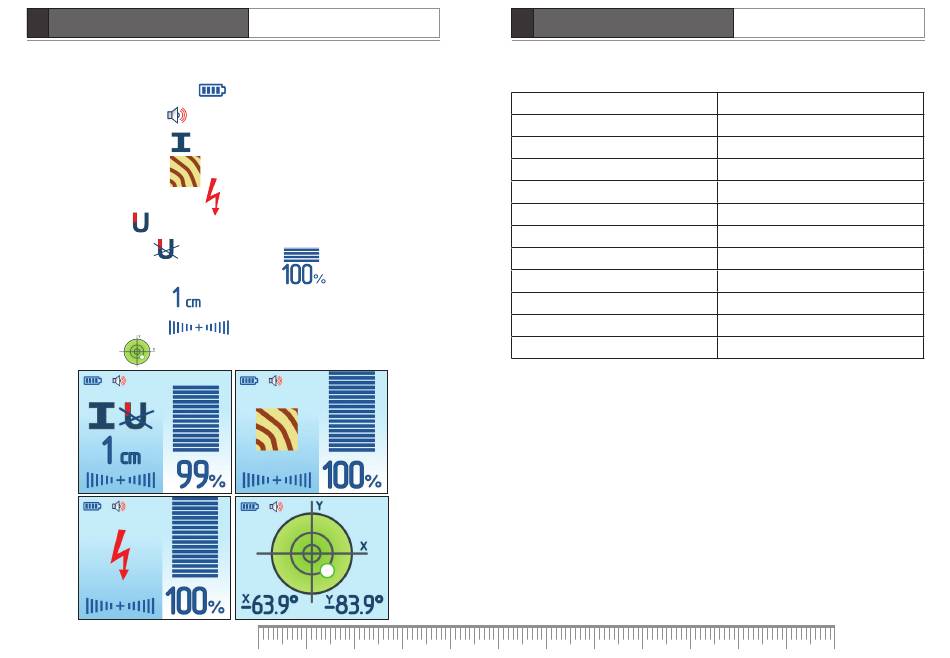

Display
- Indication of battery charge level
- Indication of sound signal
- Metal detection mode icon
- Wood detection mode icon
- Live wires detection mode icon
- Ferrous metal icon
- Non-ferrous metal icon
- Detected object approximation degree (0-100 %)
- Metal detection depth (cm)
- Detection of object center
- Digital vial mode
6
CONDTROL SCAN
User Manual
ELECTRICAL WIRING AND
EN
HARDWARE SCANNER
TECHNICAL SPECIFICATIONS
Maximum scanning depth*
Ferrous metals
Non-ferrous metals (cooper)
Copper conductors(live)**
Wood
Automatic shutdown
Operating temperature
Storage temperature
Power supply
Operating lifetime
Dimensions
Weight
* Depends on material and size of objects as material and condition of structure.
** Less scanning depth for wires/conductors that are not "live".
OPERATION
Inserting/replace the battery
Remove the battery cover. Insert the batteries, observing correct polarity. Put the
battery cover back. Use 9 V alkaline batteries only. Remove the batteries when the
product is not used for a long time to avoid corrosion and battery depletion.
CONDTROL SCAN
User Manual
100 mm
80 mm
50 mm
20 mm
5 min
–10 °C ... +50 °C
–20 °C ... +70 °C
1 x 9 V 6LR61 (alkaline)
6 h
196*76*25 mm
0,145 kg
7
