PRODUCT SAFETY NOTE: Products marked with a
# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.
NOTES:
1. Parts that are not assigned part numbers (---------)
are not available.
2. Tolerance of Capacitors and Resistors are noted
with the following symbols.
C.....±0.25%
D.....±0.5%
G.....±2%
J......±5%
M.....±20%
N.....±30%
DTV MODULE CBA UNIT
Ref. No.
Description
DTV MODULE CBA UNIT
MMA CBA
Ref. No.
Description
MMA CBA
Consists of the following:
MAIN CBA
CRT CBA
MAIN CBA
Ref. No.
Description
MAIN CBA
Consists of the following:
CAPACITORS
C12
ELECTROLYTIC CAP . 100µF/10V M
C16
ELECTROLYTIC CAP . 1µF/50V M
C21
CERAMIC CAP .(AX) B K 1000pF/50V
C31
ELECTROLYTIC CAP . 100µF/10V M
C34
ELECTROLYTIC CAP . 0.47µF/50V M
C35
CHIP CERAMIC CAP . B K 0.01µF/50V
C36
CHIP CERAMIC CAP . B K 1000pF/50V
C37
ELECTROLYTIC CAP . 1µF/50V M
CHIP RES. 1/10W J 0 Ω
C38
CHIP RES. 1/10W J 0 Ω
C39
C49
PCB JUMPER D0.6-P5.0
C50
CHIP CERAMIC CAP . CJ C 3pF/50V
C51
CHIP CERAMIC CAP . B K 1000pF/50V
C52
CHIP CERAMIC CAP . F Z 0.01µF/50V
C53
ELECTROLYTIC CAP . 100µF/10V M
C54
CHIP CERAMIC CAP . B K 1000pF/50V
C55
CHIP CERAMIC CAP . F Z 0.01µF/50V
C57
CHIP CERAMIC CAP . B K 0.047µF/50V
C58
CHIP CERAMIC CAP . B K 0.033µF/50V
C59
CERAMIC CAP .(AX) CH K 2.7pF/50V
C60
CHIP CERAMIC CAP . CH D 5pF/50V
CHIP RES. 1/10W J 0 Ω
C71
CHIP RES. 1/10W J 0 Ω
C72
20070613

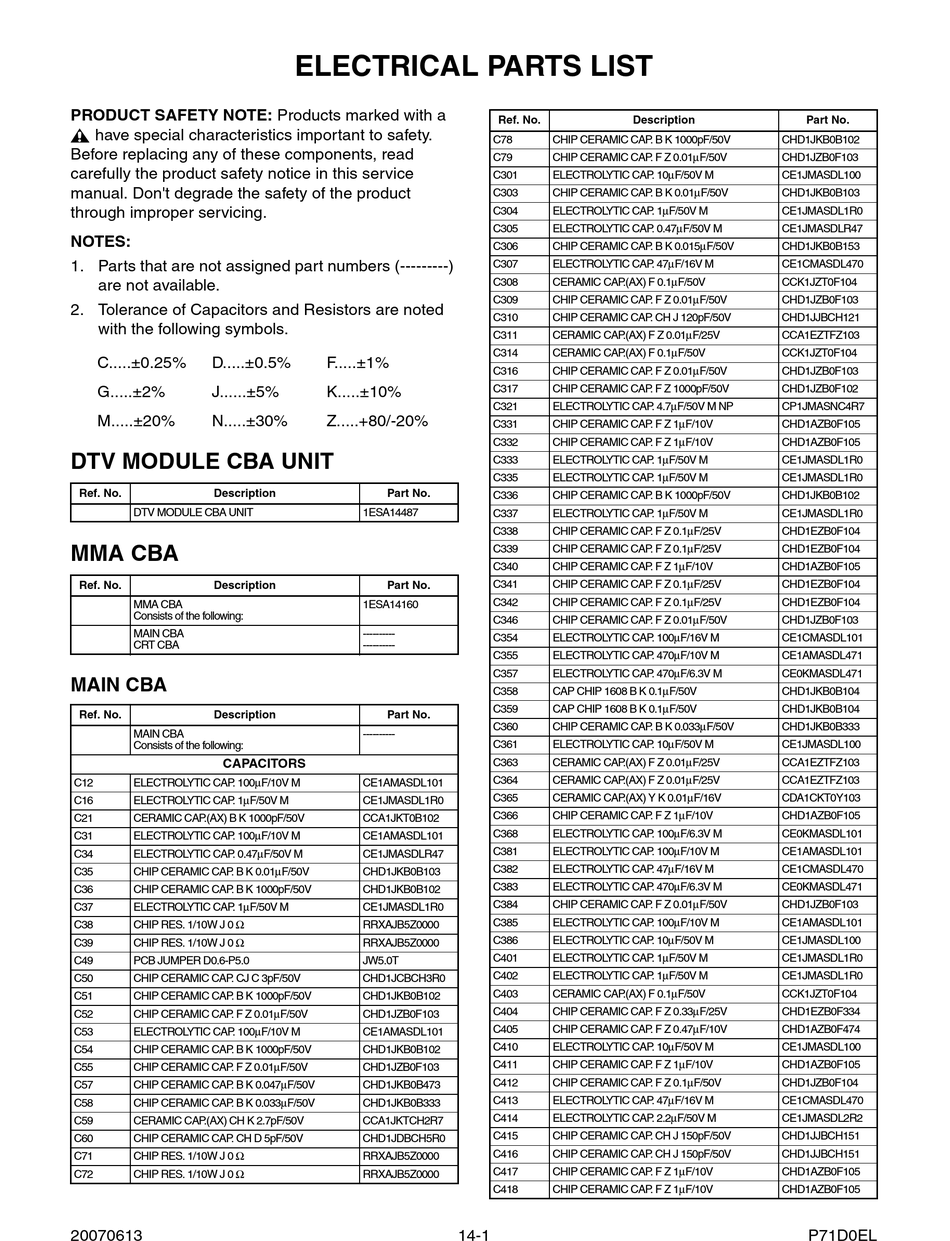

ELECTRICAL PARTS LIST
F.....±1%
K.....±10%
Z.....+80/-20%
Part No.
1ESA14487
Part No.
1ESA14160
----------
----------
Part No.
----------
CE1AMASDL101
CE1JMASDL1R0
CCA1JKT0B102
CE1AMASDL101
CE1JMASDLR47
CHD1JKB0B103
CHD1JKB0B102
CE1JMASDL1R0
RRXAJB5Z0000
RRXAJB5Z0000
JW5.0T
CHD1JCBCH3R0
CHD1JKB0B102
CHD1JZB0F103
CE1AMASDL101
CHD1JKB0B102
CHD1JZB0F103
CHD1JKB0B473
CHD1JKB0B333
CCA1JKTCH2R7
CHD1JDBCH5R0
RRXAJB5Z0000
RRXAJB5Z0000
14-1
Ref. No.
Description
C78
CHIP CERAMIC CAP . B K 1000pF/50V
C79
CHIP CERAMIC CAP . F Z 0.01µF/50V
C301
ELECTROLYTIC CAP . 10µF/50V M
C303
CHIP CERAMIC CAP . B K 0.01µF/50V
C304
ELECTROLYTIC CAP . 1µF/50V M
C305
ELECTROLYTIC CAP . 0.47µF/50V M
C306
CHIP CERAMIC CAP . B K 0.015µF/50V
C307
ELECTROLYTIC CAP . 47µF/16V M
C308
CERAMIC CAP .(AX) F 0.1µF/50V
C309
CHIP CERAMIC CAP . F Z 0.01µF/50V
C310
CHIP CERAMIC CAP . CH J 120pF/50V
C311
CERAMIC CAP .(AX) F Z 0.01µF/25V
C314
CERAMIC CAP .(AX) F 0.1µF/50V
C316
CHIP CERAMIC CAP . F Z 0.01µF/50V
C317
CHIP CERAMIC CAP . F Z 1000pF/50V
C321
ELECTROLYTIC CAP . 4.7µF/50V M NP
C331
CHIP CERAMIC CAP . F Z 1µF/10V
C332
CHIP CERAMIC CAP . F Z 1µF/10V
C333
ELECTROLYTIC CAP . 1µF/50V M
C335
ELECTROLYTIC CAP . 1µF/50V M
C336
CHIP CERAMIC CAP . B K 1000pF/50V
C337
ELECTROLYTIC CAP . 1µF/50V M
C338
CHIP CERAMIC CAP . F Z 0.1µF/25V
C339
CHIP CERAMIC CAP . F Z 0.1µF/25V
C340
CHIP CERAMIC CAP . F Z 1µF/10V
C341
CHIP CERAMIC CAP . F Z 0.1µF/25V
C342
CHIP CERAMIC CAP . F Z 0.1µF/25V
C346
CHIP CERAMIC CAP . F Z 0.01µF/50V
C354
ELECTROLYTIC CAP . 100µF/16V M
C355
ELECTROLYTIC CAP . 470µF/10V M
C357
ELECTROLYTIC CAP . 470µF/6.3V M
C358
CAP CHIP 1608 B K 0.1µF/50V
C359
CAP CHIP 1608 B K 0.1µF/50V
C360
CHIP CERAMIC CAP . B K 0.033µF/50V
C361
ELECTROLYTIC CAP . 10µF/50V M
C363
CERAMIC CAP .(AX) F Z 0.01µF/25V
C364
CERAMIC CAP .(AX) F Z 0.01µF/25V
C365
CERAMIC CAP .(AX) Y K 0.01µF/16V
C366
CHIP CERAMIC CAP . F Z 1µF/10V
C368
ELECTROLYTIC CAP . 100µF/6.3V M
C381
ELECTROLYTIC CAP . 100µF/10V M
C382
ELECTROLYTIC CAP . 47µF/16V M
C383
ELECTROLYTIC CAP . 470µF/6.3V M
C384
CHIP CERAMIC CAP . F Z 0.01µF/50V
C385
ELECTROLYTIC CAP . 100µF/10V M
C386
ELECTROLYTIC CAP . 10µF/50V M
C401
ELECTROLYTIC CAP . 1µF/50V M
C402
ELECTROLYTIC CAP . 1µF/50V M
C403
CERAMIC CAP .(AX) F 0.1µF/50V
C404
CHIP CERAMIC CAP . F Z 0.33µF/25V
C405
CHIP CERAMIC CAP . F Z 0.47µF/10V
C410
ELECTROLYTIC CAP . 10µF/50V M
C411
CHIP CERAMIC CAP . F Z 1µF/10V
C412
CHIP CERAMIC CAP . F Z 0.1µF/50V
C413
ELECTROLYTIC CAP . 47µF/16V M
C414
ELECTROLYTIC CAP . 2.2µF/50V M
C415
CHIP CERAMIC CAP . CH J 150pF/50V
C416
CHIP CERAMIC CAP . CH J 150pF/50V
C417
CHIP CERAMIC CAP . F Z 1µF/10V
C418
CHIP CERAMIC CAP . F Z 1µF/10V
Part No.
CHD1JKB0B102
CHD1JZB0F103
CE1JMASDL100
CHD1JKB0B103
CE1JMASDL1R0
CE1JMASDLR47
CHD1JKB0B153
CE1CMASDL470
CCK1JZT0F104
CHD1JZB0F103
CHD1JJBCH121
CCA1EZTFZ103
CCK1JZT0F104
CHD1JZB0F103
CHD1JZB0F102
CP1JMASNC4R7
CHD1AZB0F105
CHD1AZB0F105
CE1JMASDL1R0
CE1JMASDL1R0
CHD1JKB0B102
CE1JMASDL1R0
CHD1EZB0F104
CHD1EZB0F104
CHD1AZB0F105
CHD1EZB0F104
CHD1EZB0F104
CHD1JZB0F103
CE1CMASDL101
CE1AMASDL471
CE0KMASDL471
CHD1JKB0B104
CHD1JKB0B104
CHD1JKB0B333
CE1JMASDL100
CCA1EZTFZ103
CCA1EZTFZ103
CDA1CKT0Y103
CHD1AZB0F105
CE0KMASDL101
CE1AMASDL101
CE1CMASDL470
CE0KMASDL471
CHD1JZB0F103
CE1AMASDL101
CE1JMASDL100
CE1JMASDL1R0
CE1JMASDL1R0
CCK1JZT0F104
CHD1EZB0F334
CHD1AZB0F474
CE1JMASDL100
CHD1AZB0F105
CHD1JZB0F104
CE1CMASDL470
CE1JMASDL2R2
CHD1JJBCH151
CHD1JJBCH151
CHD1AZB0F105
CHD1AZB0F105
P71D0EL
