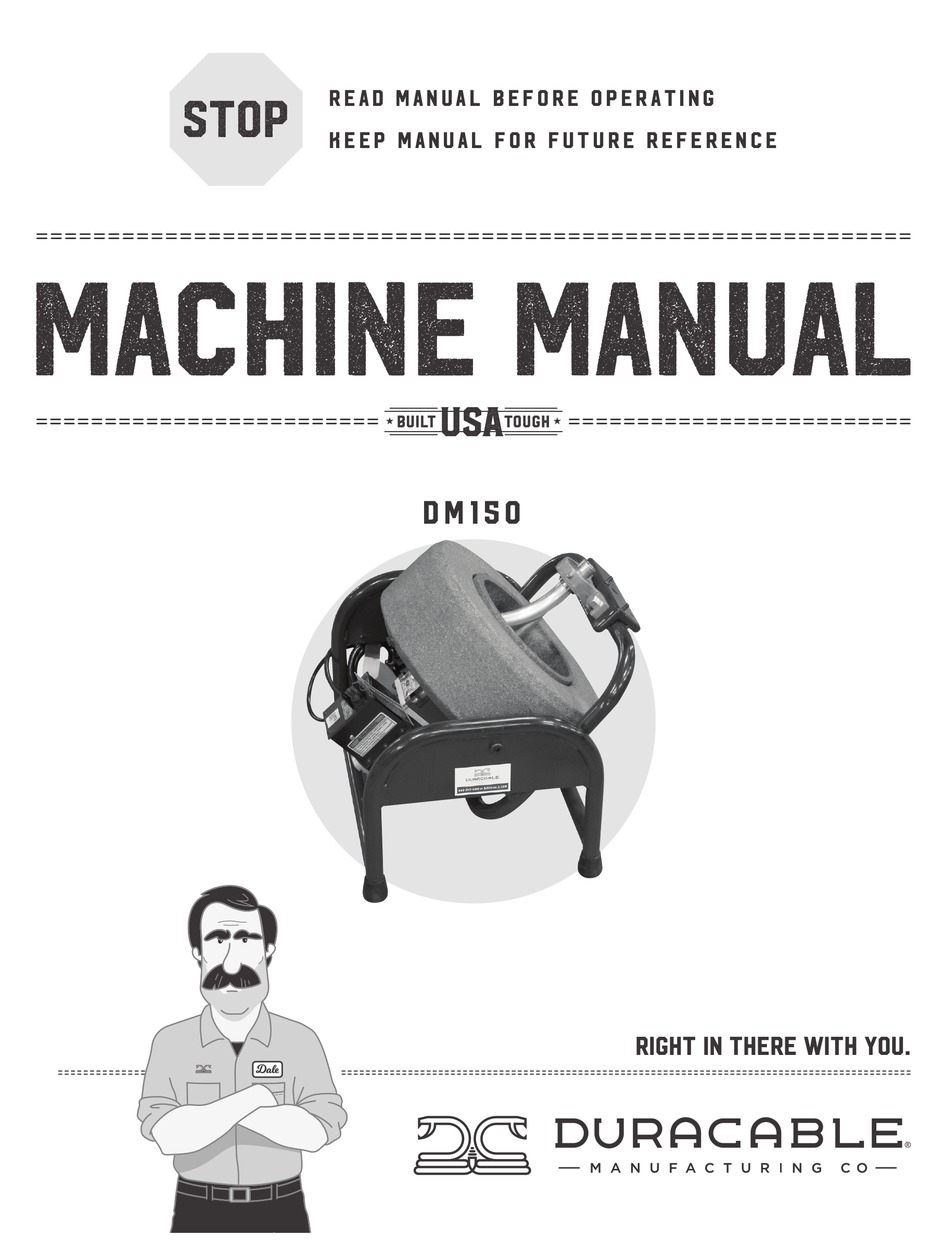

- Page 1 R e a d m a n u a l b e f o r e o p e r a t i n g stop k e e p m a n u a l f o r f u t u r e r e f e r e n c e d m 1 5 0 Right in there with you.
- Page 2 WARRANTY Duracable Manufacturing Company warrants the DM150 machine to be free from defects in material and workmanship for a period of two years from the date of purchase. Warranty service can be obtained by contacting Duracable Manufacturing Company at the address listed below. If a defect is covered by warranty, Duracable Manufacturing Company will repair or replace the defective machine or component without charge for labor or materials (freight is not included).
-
Page 3: Safety Labels
DM150 MACHINE MANUAL Safety Labels Duracable Manufacturing uses three signal words on its WARNING safety labels and instructions. These words have the following definitions: A ‘Warning’ label indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury, and DANGER includes hazards that are exposed when guards are removed. -
Page 4: Information And Specifications
Unpacking Your Machine retrieve cable. Use a material that cannot be easily grabbed by The DM150 is shipped to you pre-assembled and ready for use, the cable. Most leather gloves and certain rubber gloves work with the following parts: the base machine, a reel, a revolving well. - Page 5 1/4 HP Motor 230 RPM Direct Drive 14” Reel 1/2” x 75’ Cable Optional Handle 2-Year Warranty DM150 with 14” Enclosed Polyethylene Reel Continuous Weld Uni-body Frame USES: 1-1/4” to 4” lines, Residential, Sinks, Bathtubs, Shower Drains, Roof Vents, Floor Drains...
- Page 6 The air foot pedal is standard equipment The DM150 is shown with the 14PRWLK reel. (See options on the next page.) and allows the operators to turn the machine on and off with their foot while their hands stay on the cable.
- Page 7 1/2” x 75’ 25216 Guide Tube 11036 Quick-Lock Guide Tube Bracket Assembly 14PRW 14” Polyethylene Reel with Inner Reel 14PROW 14” Oversized Polyethylene Reel with Inner Reel 52040 Machine Cart The Model DM150 is shown above with the 14PRWLK reel.
- Page 8 DM150 MACHINE MANUAL DM150 Schematic...
- Page 9 DM150 MACHINE MANUAL DM150 Schematic The entire line item in bold identifies the name of an entire assembly. The “Z” shaped arrow identifies all the parts that make up that assembly. You can purchase the entire assembly, or just the individual parts.
- Page 10 DM150 MACHINE MANUAL 14PRWLK (14” Polyethylene Reel) Schematic for DM150 Item Qty. Part# Description .438 ID x 1.012 OD Thrust Bearing FLNUT5 .25-20 Flange Nut 1" Pillow Block Bearing SHCS32 .25-20 x .625 SBHCS WA47 .25 Body Washer 771403 8 & 14" Plastic Drum Hub - Plate 38RAW-L .678 ID-L Wide Mouth Left Revolving Arm Assembly...
- Page 11 DM150 MACHINE MANUAL 14PROWLK (14” Oversized Polyethylene Reel) Schematic for DM150 Item Qty. Part# Description .438 ID x 1.012 Thrust Bearing FLNUT5 .25-20 Flange Nut 1" Pillow Block Bearing SHCS32 .25-20 x .625 SBHCS WA47 .25 Body Washer 771403 8 & 14" Plastic Drum Hub - Plate SKTS2 .313 OD x .25 LG Socket Shoulder Screw...
-
Page 12: Electrical Schematic
FORWARD - CCW The wiring diagram for the basic DM150 is shown above. If you experience any electrical difficulties in operating your machine, or you notice any frayed or inadequate wiring, or wiring that does not conform to the diagram, discontinue use of your machine... -
Page 13: Electrical Safety
DM150 MACHINE MANUAL Electrical Safety Handle with Care Ground Fault Circuit Interrupters (GFCI) Although electricity is one of the safest energy forms, we A GFCI works by detecting changes in electrical current flow. tend to forget how powerful and dangerous it can be if not It breaks the circuit before serious injury can occur. - Page 14 DM150 MACHINE MANUAL How to splice duraflex cable ® 1. Cut a few inches off of each 3. Apply Loctite Retaining 2. Spray Loctite Primer in and 4. Insert splice core into cable cable end and remove any burrs Compound to splice core.
- Page 15 DM150 MACHINE MANUAL Notes...
- Page 16 D M 1 5 0 M a c h i n e M a n u al d m 1 5 0 3 0 0 A S H WO RT H ROA D W E ST D E S M O I N E S , I OWA 5 0 2 6 5 D U R A C A B L E .
