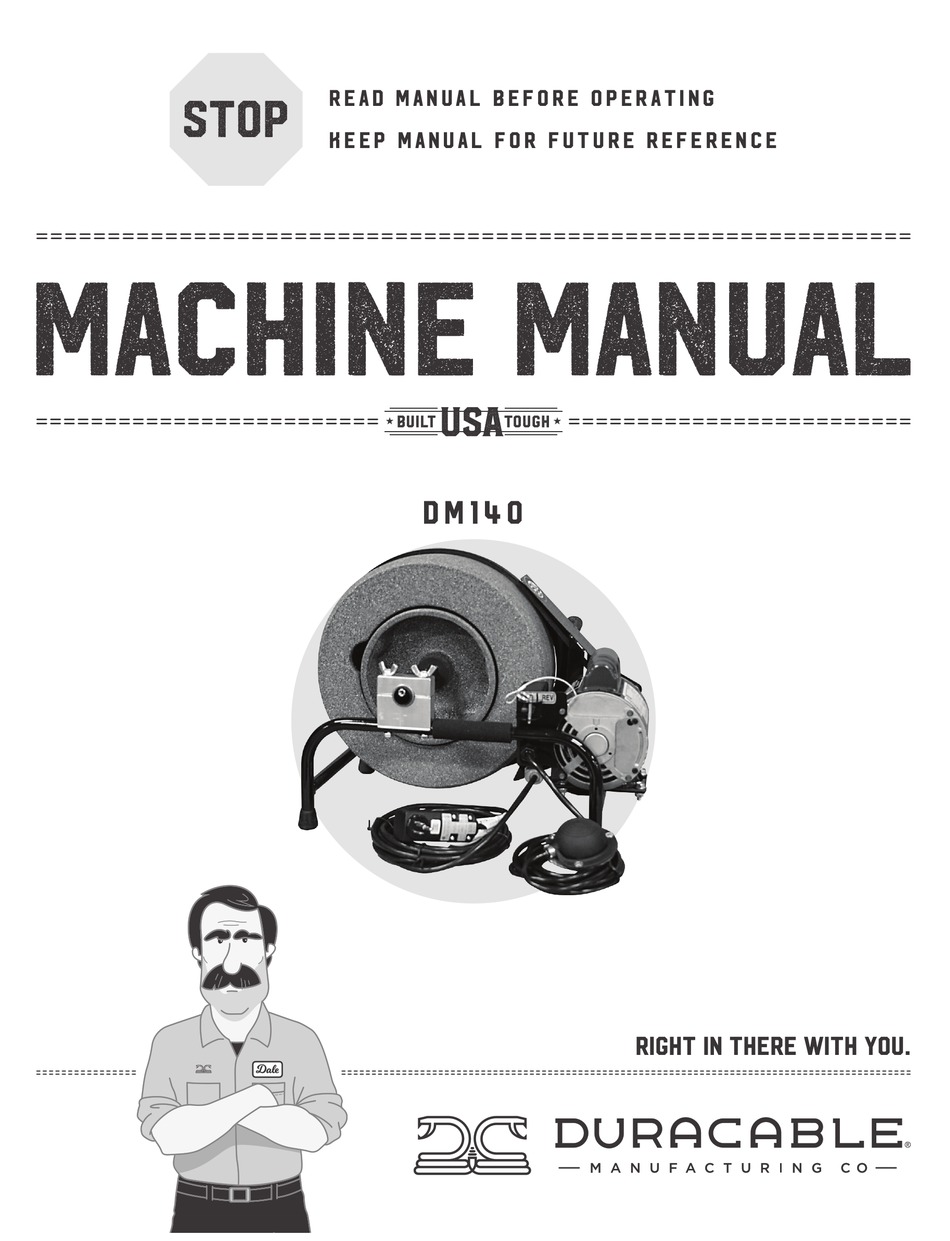

- Page 1 R e a d m a n u a l b e f o r e o p e r a t i n g stop k e e p m a n u a l f o r f u t u r e r e f e r e n c e d m 1 4 0 Right in there with you.
-
Page 2: Warranty
WARRANTY Duracable Manufacturing Company warrants the DM140 machine to be free from defects in material and workmanship for a period of two years from the date of purchase. Warranty service can be obtained by contacting Duracable Manufacturing Company at the address listed below. If a defect is covered by warranty, Duracable Manufacturing Company will repair or replace the defective machine or component without charge for labor or materials (freight is not included). -
Page 3: Safety Labels
DM140 MACHINE MANUAL Safety Labels Duracable Manufacturing uses three signal words on its WARNING safety labels and instructions. These words have the following definitions: A ‘Warning’ label indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury, and DANGER includes hazards that are exposed when guards are removed. -
Page 4: Information And Specifications
Unpacking Your Machine drains. Use it for this purpose - do not use it for other purposes. The Model DM140 is shipped to you fully assembled and ready to use. The base machine, reel, cable, and the revolving arm are Use gloves to protect your hands. - Page 5 Information and Specifications DM140 1/4 HP Motor 200 RPM Pulley Drive 14” Reel 3/8” x 75’ Cable 2-Year Warranty Continuous Weld Uni-body Frame USES: 1-1/4” to 3” lines, Residential, Sinks, Model DM140 with 14013 Bathtubs, 14” Enclosed Polyethylene Reel Shower Drains...

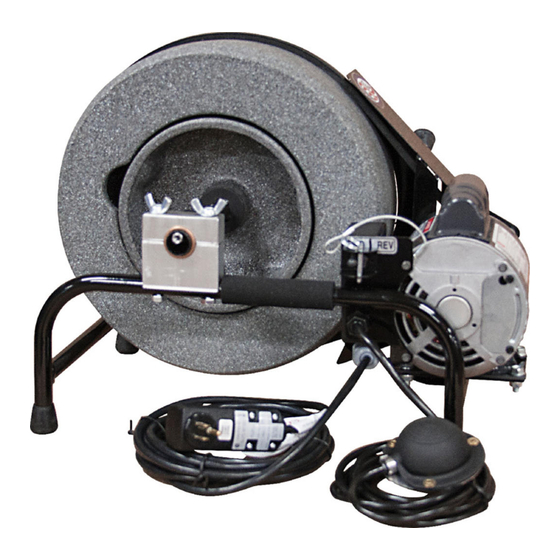

- Page 6 The Model DM140 is shown above with the 14013 reel. (See options on the next page.) The Ground Fault Circuit Interrupter (GFCI) is built into the electrical cord for added safety.
- Page 7 200 RPM Air Foot Pedal 14013 11005 1/4 HP Motor 25074 Air Foot Pedal (rubber) with 10’ Tubing 25061 Air Switch with Strain Relief Nut 25003 Forward/Reverse Switch The Model DM140 is shown above (left and right) with the 14013 reel.
- Page 8 DM140 MACHINE MANUAL DM140 Schematic...
- Page 9 DM140 MACHINE MANUAL DM140 Schematic Item Qty. Part# Description 1400-02 Clamp Block #1 1400-03 Clamp Block #2 1400-04 Conduit Box Mounting Plate 14010A V-Belt Pulley 4L 2” OD X 1/2 Bore Size 14010C 4L - Section V-Belt Trade Size 4L520 14013 14”...
- Page 10 DM140 MACHINE MANUAL 14013 (14” Polyethylene Reel for 3/8” cable) Schematic for DM140 ITEM PART QTY. NUMBER 14RAW-R .866 ID-CW 771406 14" PRO BIG 771408 8.19 OD X 3 14012 14" DRUM H MM60 STANDARD T MM70 SET SCREW S...
- Page 11 DM140 MACHINE MANUAL ITEM NO. Q 14011P (14” Flat Polyethylene Reel for 1/4” cable) Schematic for DM140 NOTES: PROPRIETARY AND THE INFORMATION IN THIS DRAWING PROPERTY OF ROT CORPORATION. ANY REPRODUCTI OR AS A WHOLE W WRITTEN PERMISSI ROTO-ROOTER CO IS PROHIBITED.
- Page 12 #8 - RED The wiring diagram for the basic DM140 is shown above. If you experience any electrical difficulties in operating your machine, or you notice any frayed or inadequate wiring, or wiring that does not conform to the diagram, discontinue use of your machine...
-
Page 13: Electrical Safety
HP motors. Larger gauge cords can be run greater distances, but are not practical because of their size and weight. The Model DM140 machine must be grounded to protect the operator from shock. This is accomplished by using the Ground •... - Page 14 DM140 MACHINE MANUAL How to splice duraflex cable ® 1. Cut a few inches off of each 3. Apply Loctite Retaining 2. Spray Loctite Primer in and 4. Insert splice core into cable cable end and remove any burrs Compound to splice core.
- Page 15 DM140 MACHINE MANUAL Notes...
- Page 16 D M 1 4 0 M a c h i n e M a n u al d m 1 4 0 3 0 0 A S H WO RT H ROA D W E ST D E S M O I N E S , I OWA 5 0 2 6 5 D U R A C A B L E .
