Fike FIK-W-MONITOR Installation And Maintenance Instructions

INSTALLATION AND MAINTENANCE INSTRUCTIONS
FIK-W-MONITOR
Wireless Monitor Module
SPECIFICATIONS
Maximum Operating Voltage:
Maximum Current Draw:
Average Operating Current:
EOL Resistance:
Maximum IDC Wiring Resistance:
Maximum IDC Voltage:
Maximum Average IDC Current:
Maximum Transmit RF Power:
Radio Frequency Range:
Temperature Range:
Humidity:
Battery Type:
Battery Life:
Battery Replacement:
Dimensions:
Accessories:
BEFORE INSTALLING
This information is included as a quick reference installation guide. Refer to
the control panel installation manual and the SWIFT Wireless Manual for de-
tailed system information. If the modules will be installed in an existing op-
erational system, inform the operator and local authority that the system will
be temporarily out of service. Disconnect power to the control panel before
installing the modules.
NOTICE: This manual should be left with the owner/user of this equipment.
GENERAL DESCRIPTION
The FIK-W-MONITOR Monitor Module is intended for use with a wireless
gateway or wireless fire alarm control panel (FACP) to interface with a device
having contacts used to signal status conditions. The input to the monitor
module is non-latching and does not require a reset. The device communi-
cates through a robust, bi-directional mesh network to the gateway and/or
FACP. Rotary dial switches are provided for setting the module's address. The

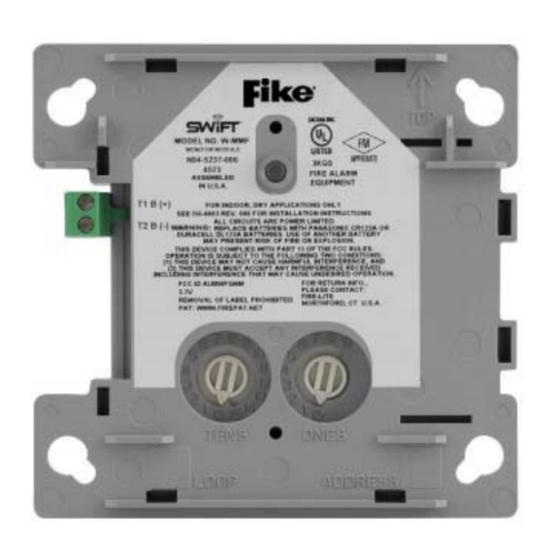

module has a panel controlled LED indicator. (See Figure 1.)
FACEPLATE
The faceplate includes a magnet for activation and tamper resistance. (See
Figure 2.) The faceplate magnet activates communication to the panel, there-
fore, the faceplate must be installed for the module to work properly. The
magnet also activates a supervisory tamper fault at the panel if the nameplate
is removed. Do NOT remove this magnet. The faceplate for a wireless module
CANNOT be replaced with the faceplate of a standard wired module.
BATTERY REPLACEMENT
Low battery levels on the wireless devices are displayed as a trouble in the
FACP. Therefore when the message "TROUBLE BATTERY LOW" is displayed,
replace the battery in the device. This message is an indication that approxi-
mately one week of battery life remains.
COMPATIBILITY REQUIREMENTS
To ensure proper operation, this module shall be connected to a compatible
Fike Series system control panel (list available from Fike).
To replace the batteries in a wireless device use the following steps:
1. Have 4 CR123A (or DL123A) batteries available
2. Remove the faceplate from the module.
3. Open the battery compartment refer to Figure 3.
4. Remove the used batteries and replace with new batteries. The battery com-
partment is designed such that the batteries can only align in the appropri-
ate direction. Do not force the batteries into the openings.
5. Replace the battery compartment cover.
6. Replace the faceplace.
3.3 VDC
5.0 mA (LED on)
210 µA, 3.9k EOL
3.9K Ohms
10 Ohms
3.2 Volts
5.5 µA
17 dBm
902-928 MHz
32°F to 120°F (0°C to 49°C)
10% to 93% Non-condensing
4 Panasonic CR123A or 4 Duracell DL123A
2 year minimum
Upon TROUBLE BATTERY LOW display and/or during annual maintenance
4¼ in. H x 4¼ in. W x 1½ in. D
SMB500-WH Electrical Box (preferred mounting option)

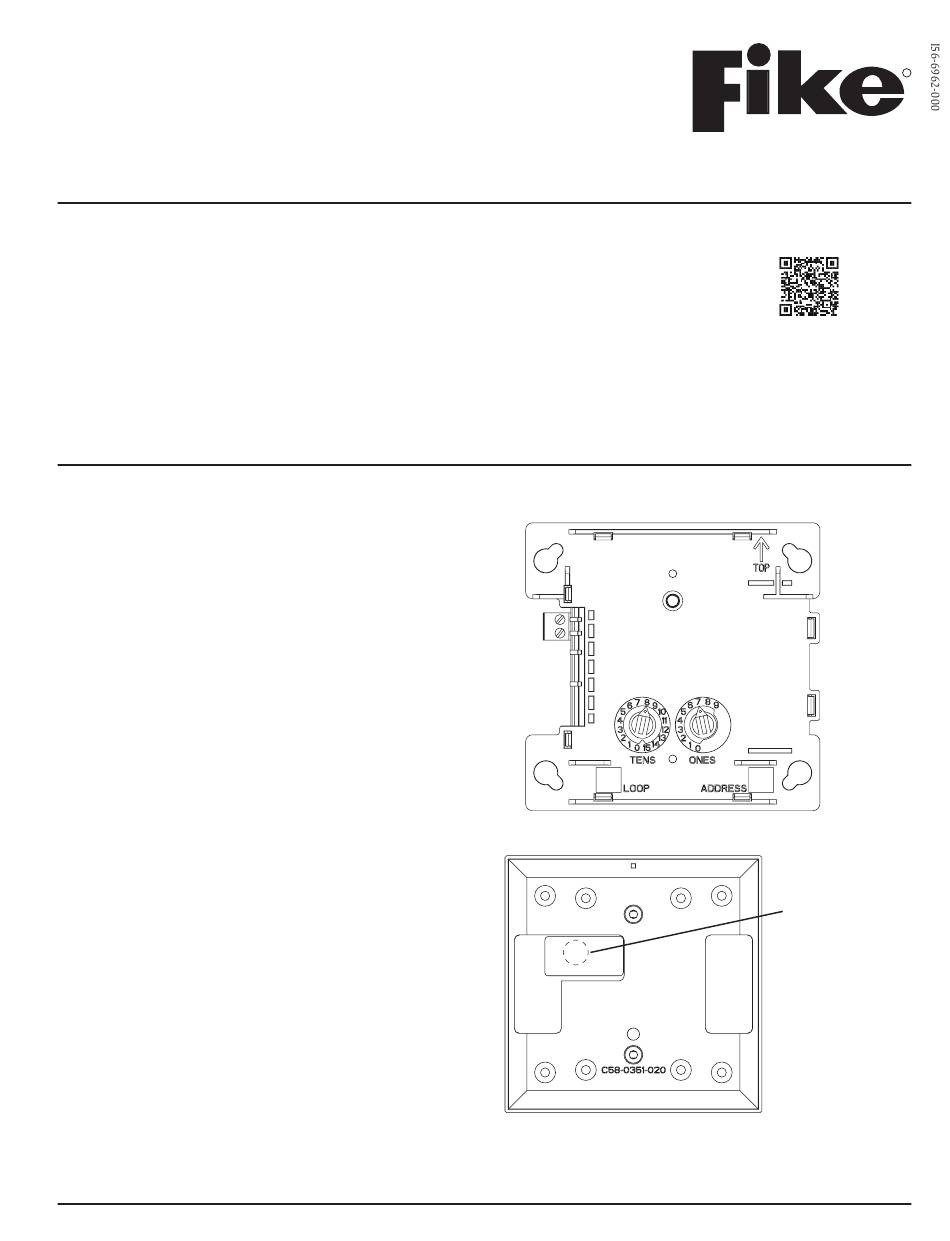

FIGURE 1. CONTROLS AND INDICATORS
FIGURE 2. FACEPLATE INTERIOR
1
704 SW 10th Street
Blue Springs, MO 64015
Phone: 816.229.3405; Fax: 816.228.9277
www.fike.com
For system/product documentation including
installation, operation, and maintenance,
scan QR code or enter URL provided.
http://www.fike.com/06-912
C1095C-00
MAGNET LOCATION
(DO NOT REMOVE)
C1098-00
I56-6962-000
1/19/2021
