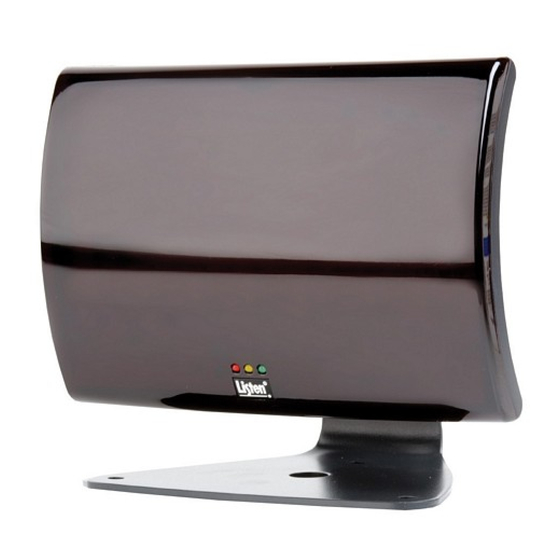

LA-140 Quick Reference Card
Power (Red):
This red LED is lit when
there is power to the radiator.
© 2015 Listen Technologies Corporation
No Connection (Yellow):
This yellow LED indicates a coaxial
cable fault. If illuminated, the radiator
is either not connected to a powered
transmitter or another radiator.
All Rights Reserved 04092015
®
Carrier Present (Green):
This green LED is lit when there is
signal present to the radiator.
During normal operation the red
and green LEDs will be continuously
lit (unless SW1 is off).
Advertisement
Related Manuals for Listen LA-140
Summary of Contents for Listen LA-140
- Page 1 LA-140 Quick Reference Card Power (Red): No Connection (Yellow): Carrier Present (Green): This green LED is lit when there is This red LED is lit when This yellow LED indicates a coaxial there is power to the radiator. cable fault. If illuminated, the radiator signal present to the radiator.
- Page 2 Default: ON Transmitter. Default: ON Default: ON be set properly. See manual. For further details regarding your Listen products please visit our website at www.listentech.com © 2015 Listen Technologies Corporation All Rights Reserved 04092015 ®...
