Summary of Contents for DCM SOLUTION ESV710

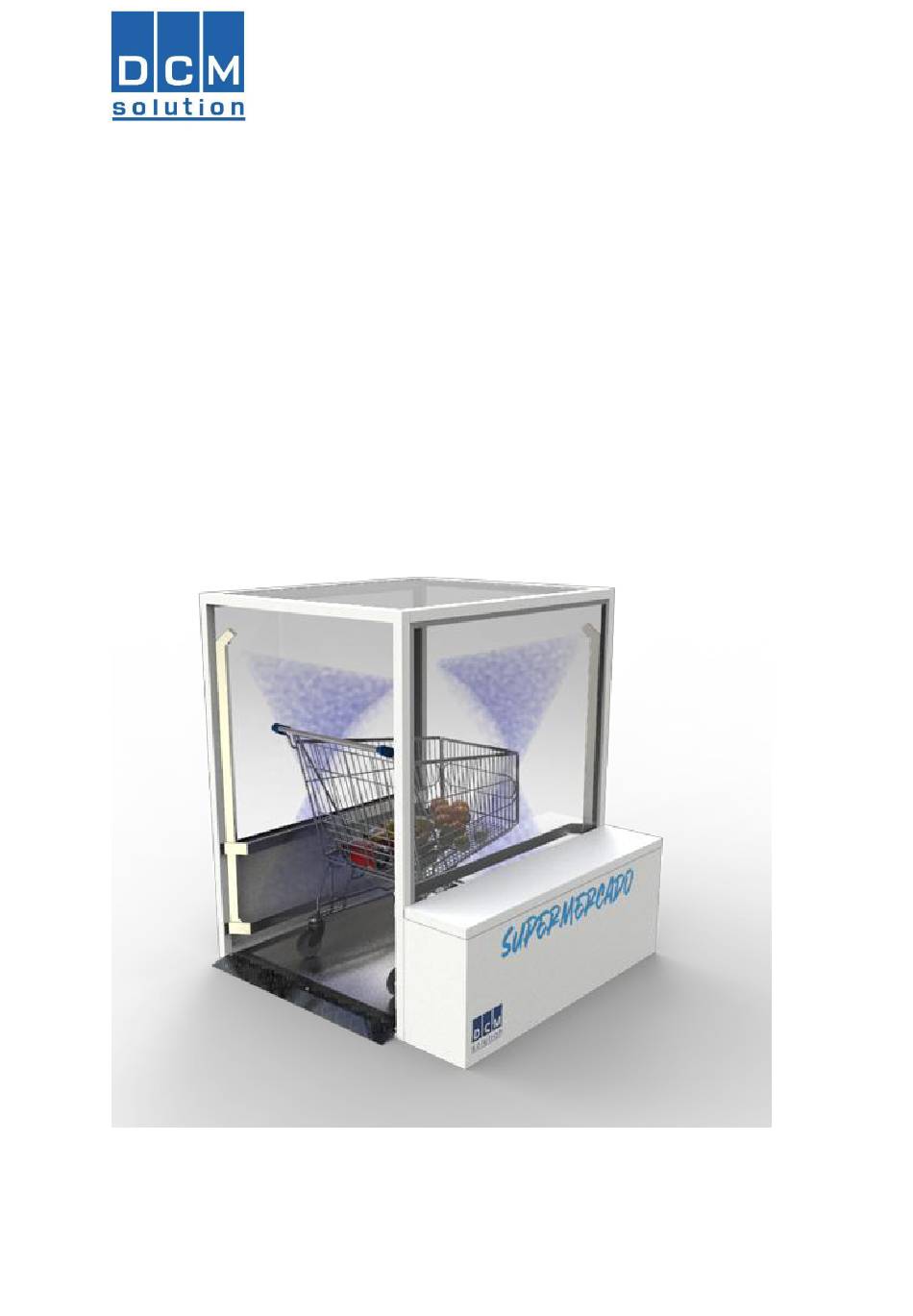

- Page 1 DCM Solution S.A. Sanitizing tunnel ESV710 Installation Manual All information contained in this document, including illustrations and specifications are reliable at the date of its publication but is subject to change without notice. Versión: 1.0 05/01/2021...
- Page 2 DCM Solution S.A., assumes no liability for any inaccuracy, error or omission in this manual. Under any circunstances, DCM Solution S.A., will be liable for direct, indirect, special, incidental or consequential damages resulting from any defect or omission of this manual, even if the possibility of damage was advised.
-
Page 3: Table Of Contents
ESV710 Sanitizing tunnel Table of contents Introduction _______________________________________________ 4 Object description __________________________________________ 4 General _______________________________________________ 4 Technical specification __________________________________ 4 2.2.1 Standard characteristics _______________________________ 4 2.2.2 Optionals ___________________________________________ 4 2.2.3 Models ____________________________________________ 4 2.2.4 Electric power supply _________________________________ 5 2.2.5 Electric consumption __________________________________ 5 2.2.6... -
Page 4: Introduction
Stainless steel cabinet Automatic ignition by presence sensor 2.2.3 Models ESV710 : SAE 1010 painted with epoxy sanitizing tunnel for supermaket carts ESV711 : Stainless steel sanitizing tunnel for supermarket carts www.dcm.com.ar Installation Manual Page.: 4of20... -
Page 5: Electric Power Supply
ESV710 Sanitizing tunnel 2.2.4 Electric power supply Voltage 12VDC @ 5A 2.2.5 Electric consumption Electric consumption 50 W max 2.2.6 Environmental conditions Operating Temperature +0 °C to +40 °C Storage Temperature -10 °C to +55 °C Relative Humidity 95% non-condensible maximum 2.2.7 Weight... -
Page 6: Dimensions
ESV710 Sanitizing tunnel 2.2.8 Dimensions Characterist Length 1290 Width 1320 Height 1480 www.dcm.com.ar Installation Manual Page.: 6of20... -
Page 7: Technical Information
ESV710 Sanitizing tunnel 3 Technical information 3.1 Location of the components www.dcm.com.ar Installation Manual Page.: 7of20... -
Page 8: Installation
ESV710 Sanitizing tunnel 4 Installation 4.1 Required tools Industrial hammer drill 10mm Widia Solid CarbideDrill for concrete 4 10mm expansion metal plugs (type FISCHER steel MR10). 14 and 17mmwrench. Mm Hexkey set. Please carefully read all sections before starting the installation. -
Page 9: Unpacking
ESV710 Sanitizing tunnel 4.3 Unpacking 1. Place the package on the floor without turning it around. 2. Take the upper cover off. 3. Remove the styrofoam and grasp the platform. www.dcm.com.ar Installation Manual Page.: 9of20... - Page 10 ESV710 Sanitizing tunnel 4. Place the platform where the sanitizer will be installed. 5. Take the ceiling out of the box and leave it aside. 6. Remove the sidewalls from the box. 7. Discard packaging. www.dcm.com.ar Installation Manual Page.: 10of20...
- Page 11 ESV710 Sanitizing tunnel NOTE: You will find each item in its position. For each step you will have to unscrew it, put the part and screw it back. www.dcm.com.ar Installation Manual Page.: 11of20...
-
Page 12: Assembly
ESV710 Sanitizing tunnel 4.4 Assembly 1. Join the sidewalls to the platform as shown in the illustrations and screw. www.dcm.com.ar Installation Manual Page.: 12of20... - Page 13 ESV710 Sanitizing tunnel 2. Place the ceiling in position and screw. 3. Take the hoses located at each inferior corner of the top frame and connect them to their respective coupling. www.dcm.com.ar Installation Manual Page.: 13of20...
- Page 14 ESV710 Sanitizing tunnel To connect the hose to the coupling push the blue part of the coupling and hold it down while inserting the hose. 4. Connect the draining hose coming out from the full sidewall to the platform ecoupling.
-
Page 15: Wiring
ESV710 Sanitizing tunnel 5 Wiring 5.1 Pre requisites For equipment a power supply of 12Vdc 5Amp (not provided) should be used. For greater electrical safety of the installation it is necessary to comply with the following: Power to equipmentmust come from an electrical board (not provided). -
Page 16: Start Up
ESV710 Sanitizing tunnel 6 Start up 6.1 Filling the tank Fill the tank directly through the filter placed on the top of the tank. 6.2 Purge Connect the unit to the power source with 12vDC. Check if the main circuitis in the same position as shown in the image. -
Page 17: Pressure Valve
ESV710 Sanitizing tunnel 6.3 Pressure valve In case of willing to correct the pressure, you can change it through the pressure valve as shown in the pressure valve page. www.dcm.com.ar Installation Manual Page.: 17of20... -
Page 18: Operation
ESV710 Sanitizing tunnel 7 Operation Put the carton the platform and push the ON/OFF button. Wait until it finishes or press the button again to stop it manually. Spraying duration: 7 seconds. www.dcm.com.ar Installation Manual Page.: 18of20... -
Page 19: Maintenance
ESV710 Sanitizing tunnel 8 Maintenance 8.1 Spray nozzle cleaning 1. Pull out the nozzle from the product while holding down the blue part. 1. Disassemble the nozzle very carefully as it has tiny components inside. 2. Clean all the components (Do not use chemical solvents). -
Page 20: Platform Draining
ESV710 Sanitizing tunnel 8.2 Platform draining Check that the position of the knobs are in "platform position" and press the draining button. 8.3 Principal tank draining If it is needed to drain the principal tank put the knobs in "principal tank draining position"...
