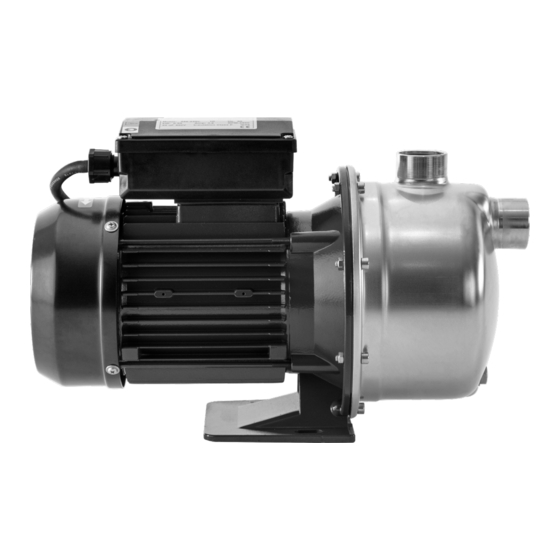

- Page 1 XBGR Series Installation, Operation and Maintenance Manual Australia Phone: 13 19 14 Email: enquiriesau@xyleminc.com www.xylem.com/au New Zealand AS4020 Certified Phone: 0800 33 19 14 Suitable for Email: enquiriesnz@xyleminc.com Compliant Drinking Water www.xylem.com/nz...
-
Page 2: Table Of Contents
XBGR Series Installation, Operation and Maintenance Manual CONGRATULATIONS! You are now a proud owner of a quality Goulds Water Technology product. For best results, please read this instruction and Operation Manual (IOM) carefully before installing and using this product. TABLE OF CONTENTS Safety Precautions ................ -
Page 3: General Information
0.37 XBGR075 0.75 0.55 XBGR100 1.04 0.75 In the Interest of technical development, Xylem reserves the right to modify specifications without notice. Maximum Inlet Water Pressure Maximum Total Head PUMP MODEL MAXIMUM INLET WATER PRESSURE PUMP MODEL MAXIMUM TOTAL HEAD XBGR050 2.6 Bar... -
Page 4: Handling
1. HANDLING The product must be lifted and handled with care. Do not lift the pump by the power cable. 2. APPLICATIONS The XBGR Series pump is designed to handle clean non-aggressive water free of dissolved gasses. The XBGR Series may be used in garden, irrigation and domestic applications where the pump is permanently installed. -
Page 5: Safety Instructions
8. SAFETY INSTRUCTIONS Pay attention to the working limits. Improper use may damage the pump and other property, may cause injury or death. The pump is not suitable for use with flammable or dangerous liquids. Make sure that the rated voltage and the mains voltage are compatible with the nameplate. Connect to the power mains using a multi-pole power switch with a switch-contactgap of at least 3mm. -
Page 6: Dimensional Specification
DIMENSIONAL SPECIFICATIONS XBGR050 Dimensions (mm) XBGR075, XBGR100 Dimensions (mm) -
Page 7: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTION The pump does not The suction or discharge pipes may be Check the pipes. deliver any flow blocked. The suction pipes are leaking air. Seal the pipes. The pump has The Impeller is damaged and / or corroded. The impeller must be replaced. -
Page 8: Goulds Pumps Limited Warranty
Suitable for Compliant Drinking Water www.xylem.com/au www.xylem.com/nz Lowara, Bell & Gossett and AC Fire Pump are trademarks of Xylem Inc. Goulds is a registered trademark of Goulds Pumps, Inc and is used under this license. AU ED 12/2020 (Australian Edition)
