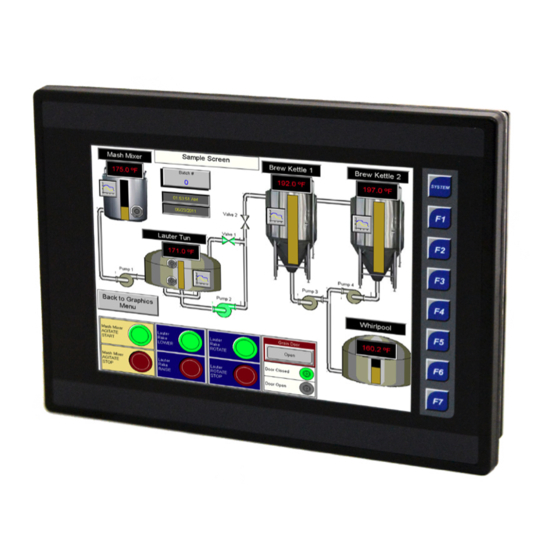

HORNER EXL10 Quick Reference Manual

EXL10 OCS QUICK REFERENCE GUIDE
General Specifications
Required Power (Steady State) 650mA @ 24VDC
Required Power (Inrush)
Primary Power Range
Relative Humidity
Typical Power Backlight 100%
Power Backlight 50%
Power Backlight OFF
Clock Accuracy
Real Time Clock
Operating Air Temp
Storage Temp
Weight (without I/O)
Altitude
Rated Pollution Degree
Certifications
(UL/CE)

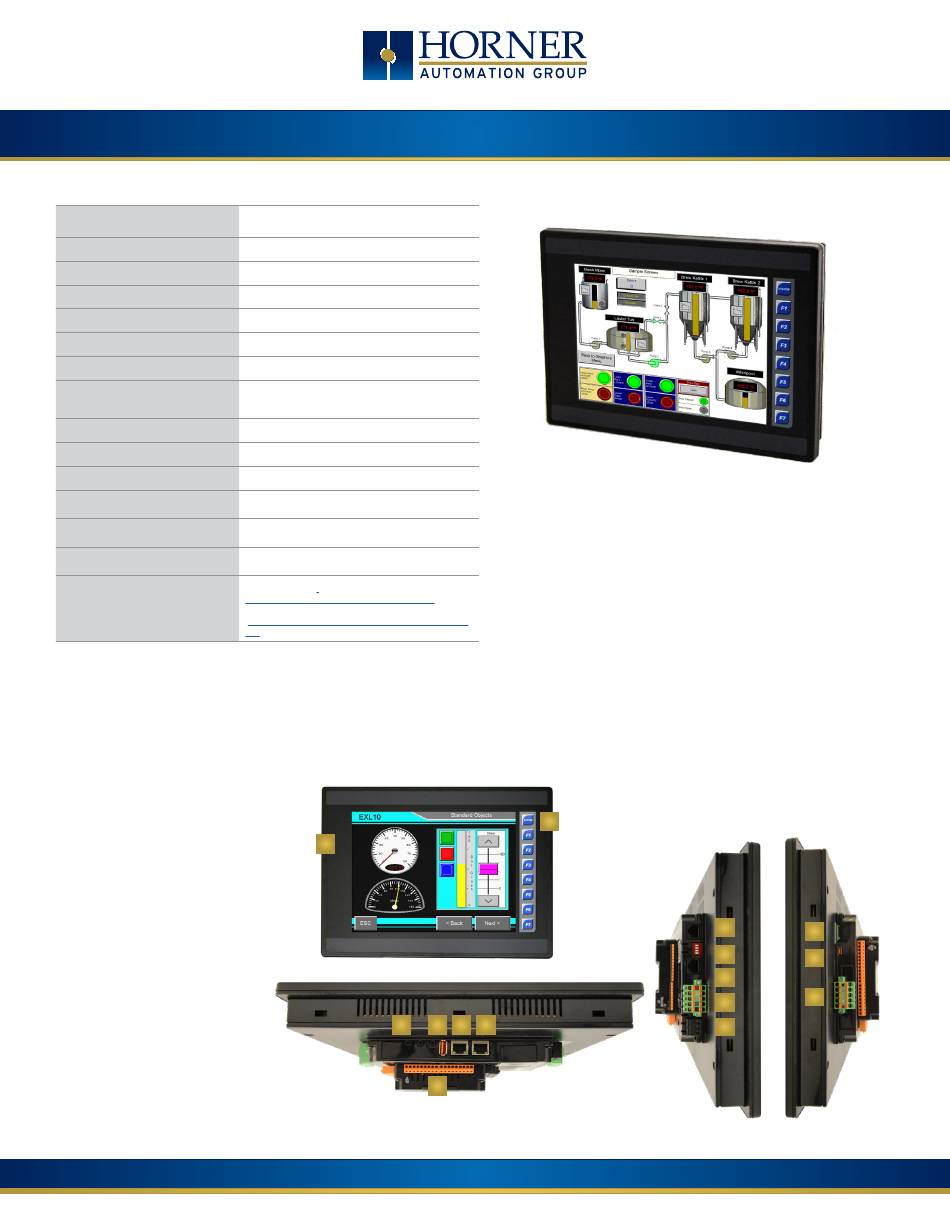

EXL10 Overview
1. Touchscreen
2. Function Keys
3. Audio Out/In
4. USB 2.0 'A': Flash Storage
5. LAN1 Port
6. LAN2 Port
7. Built-In I/O
8. MJ1/MJ2: RS-232
& 1/2 Duplex RS-485
9. Dip Switches
10. MJ3: RS-232/485
11. CAN1: Can I/O & Fieldbus Port
12. Power: 10-30VDC In
13. microSD: Data Storage
14. USB mini 'B': Programming
15. CAN 2: CAN I/O
NOTE: See Precaution #12 on page 4 about USB and grounding.
Indianapolis, USA | Cork, Ireland | Calgary, Canada | Bangalore, India | Oakleigh, Australia | Tianjin, China | Esteio, Brazil
Please visit our website for a complete listing and to learn more about certified Horner Automation products.
This document is the property of Horner Automation Group, and is subject to change.
25A for < 1ms @ 24VDC, DC switched
10 - 30VDC
5 to 95% non-condensing
12.432W @ 24VDC
9.312W @ 24VDC
6.048W @ 24VDC
+ / - 20 ppm maximum at 25°C
(+/- 1 min/month)
Battery Backed, Rechargeable Lithium
-10°C to +60°C
-20°C to +60°C
3.9375 lbs (1786g)
Up to 2000m
Evaluated for Pollution Degree 2 Rating
North America:
https://hornerautomation.com/certifications/
Europe:
http://www.horner-apg.com/en/support/certification.
aspx
1
3
2
4 5 6
7
page 1 of 4
8
13
9
14
10
15
11
12
MAN1197-02-EN
