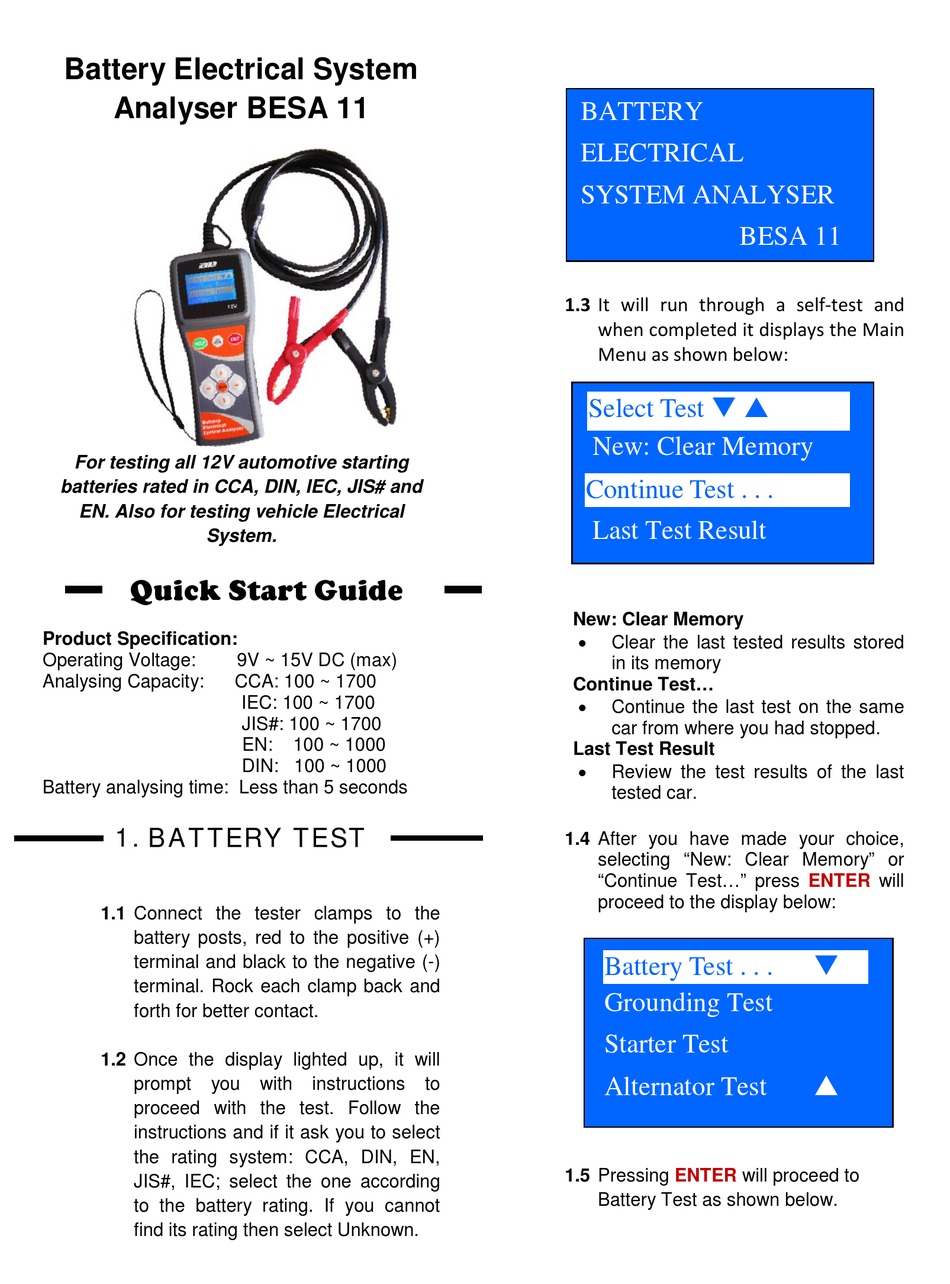

AETOOL BESA 11 Quick Start Manual

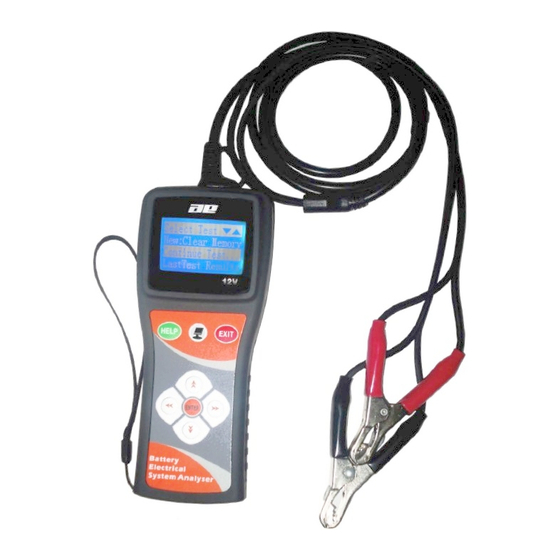

Battery Electrical System
Analyser BESA 11
For testing all 12V automotive starting
batteries rated in CCA, DIN, IEC, JIS# and
EN. Also for testing vehicle Electrical
System.
Quick Start Guide
Product Specification:
Operating Voltage:
Analysing Capacity:
Battery analysing time: Less than 5 seconds
1. BATTERY TEST
1.1 Connect the tester clamps to the
battery posts, red to the positive (+)
terminal and black to the negative (-)
terminal. Rock each clamp back and
forth for better contact.
1.2 Once the display lighted up, it will
prompt you
proceed with the test. Follow the
instructions and if it ask you to select
the rating system: CCA, DIN, EN,
JIS#, IEC; select the one according
to the battery rating. If you cannot
find its rating then select Unknown.
9V ~ 15V DC (max)
CCA: 100 ~ 1700
IEC: 100 ~ 1700
JIS#: 100 ~ 1700
EN: 100 ~ 1000
DIN: 100 ~ 1000
with instructions
BATTERY
ELECTRICAL
SYSTEM ANALYSER
1.3 It will run through a self-test and
when completed it displays the Main
Menu as shown below:
Select Test  
New: Clear Memory
Continue Test . . .
Last Test Result
New: Clear Memory
•
Continue Test...
•
Last Test Result
•
1.4 After you have made your choice,
selecting "New: Clear Memory" or
"Continue Test..." press
proceed to the display below:
to
1.5 Pressing
Battery Test as shown below.
BESA 11
Clear the last tested results stored
in its memory
Continue the last test on the same
car from where you had stopped.
Review the test results of the last
tested car.
Battery Test . . .
Grounding Test
Starter Test
Alternator Test
ENTER will proceed to
ENTER will


