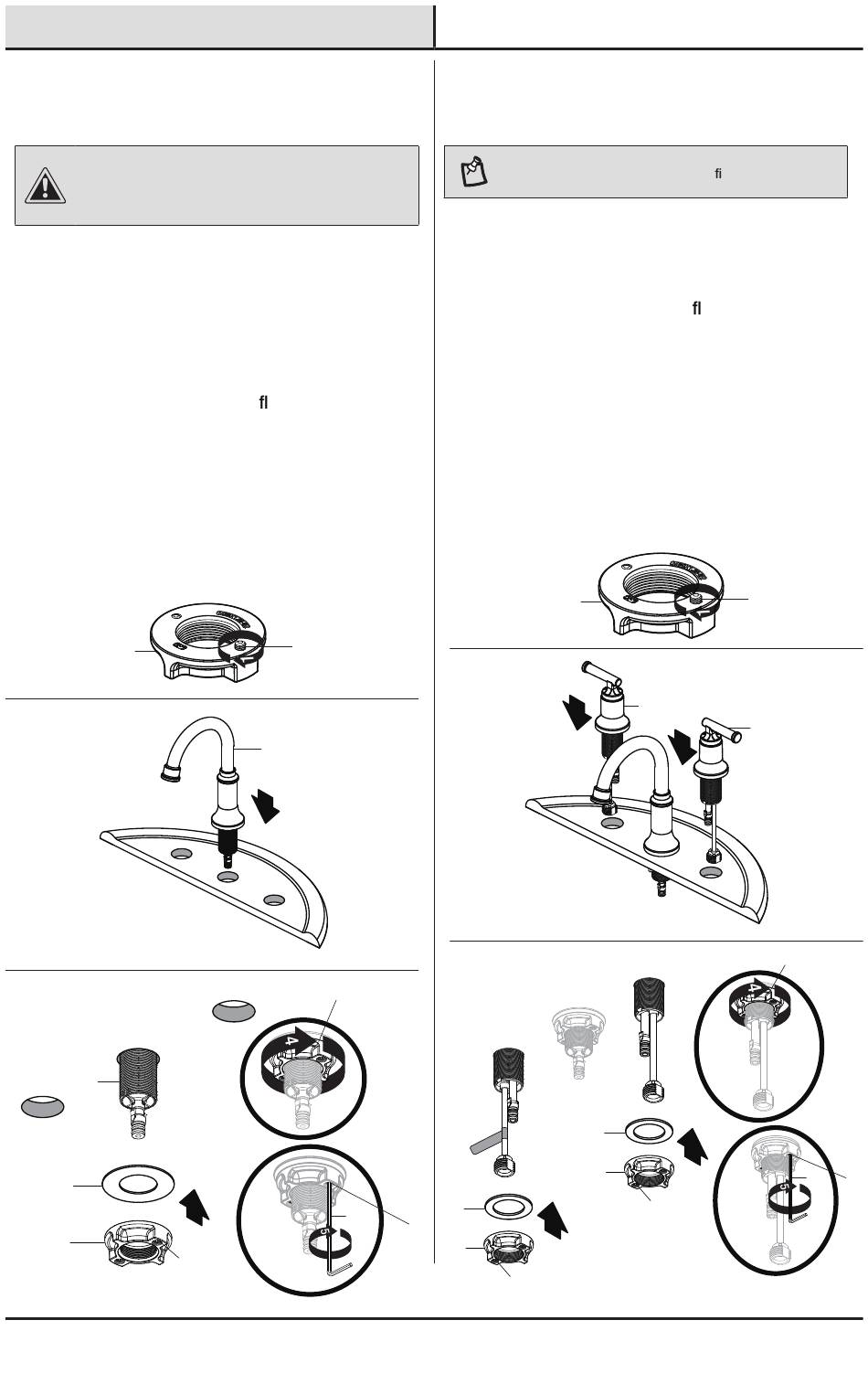

Installing the faucet assembly
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□
Shut off the water supply. Remove the old
faucet.
□
Clean the mounting surface.
□
Remove the preassembled nut (H) and
washer (G) from the new faucet (A).
□
Loosen the screws (I) on the nut (H) until the
ends of the screws (I) are ush with the face
of the nut (H).
□
Place the faucet (A) through the mounting
holes in the sink.
□
Secure the faucet (A) to the sink using the
washer (G) and nut (H) provided. Securely
tighten the screws (I) on the nut (H) with the
Hex wrench (Hex: 2.38 mm, K) provided.
H
A
G
H
I
A
2
H
3
I
2
Installing the faucet handles
□
Remove the preassembled nuts (E) and washers
(D) from the hot and cold faucet handles (B and C).
□
Loosen the screws (F) on the nuts (E) until the
ends of the screws (F) are ush with the face of
the nuts (E).
□
Insert the hot faucet handle (B) to the left of the
spout and cold faucet handle (C) to the right of
the spout.
□
Attach the faucet handles (B and C) underneath
the sink using the washers (D) and nuts (E).
Securely tighten the screws (F) on the nuts (E)
with the Hex wrench (Hex: 2.38 mm, K) provided.
