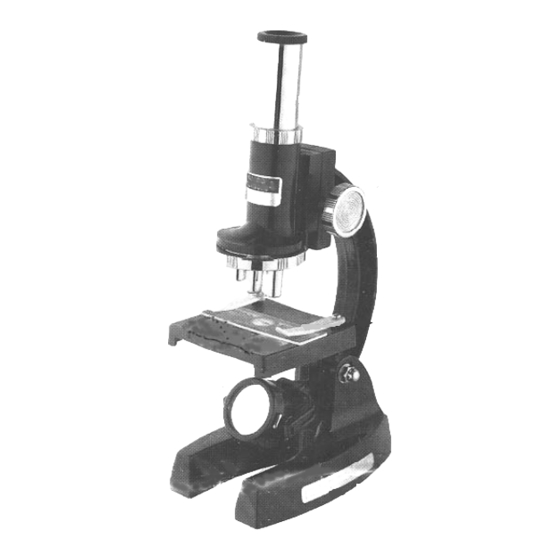

Orbitor OR7031 User Manual

47 piece 1200x die-cast metal microscope set

under the supervision of an adult. This toy contains sharp edges.

Always wash your hands carefully after handling any samples and always dispose of any samples

in a safe manner. When working with samples keep your hands away from your mouth and eyes.

Read all instructions before use. Follow them and keep them for future reference. Keep small

children and animals away from any experiments or projects. Store your microscope set out of

reach of small children. Eye protection is not included.

Welcome to the Microscopic World

We take great pleasure in introducing you to the world of the microscope. Your new microscope is

an instrument with lenses for making very small objects appear much larger so they can be

studied. There are millions of tiny living plants and animals that can be easily seen with your

microscope.

In today's technological world every science from the most fundamental biology to the highly skilled

field of astro-physiology use microscopes. Microscopes are used by geologists, archaeologists,

police departments and even astronomers when they study fallen meteorites. Your microscope will

let you see the basic building blocks of life on our Earth.

Your microscope has been designed to provide hours of enjoyment. Have Fun!

Parts of Your Microscope

We constantly improve and update our products. Sometimes, as a result of these improvements, what is seen on the

package, or in the instructions may differ somewhat in color or content from the product in the package.

orbitor 47 Piece

1200X DIE-CAST METAL MICROSCOPE SET

WARNING: Only for use by children over 8 years old. Only for use

1 Eyepiece

2 Focusing Knob

3 Body Tube

4 Revolving Turret

5 Objective Lens

6 Arm

7 Stage

8 Clip

9 Mirror

10 Illuminator Lamp

11 Base (Battery Case)

Table of Contents

Need help?

Do you have a question about the OR7031 and is the answer not in the manual?

Page 1 orbitor 47 Piece 1200X DIE-CAST METAL MICROSCOPE SET WARNING: Only for use by children over 8 years old. Only for use under the supervision of an adult. This toy contains sharp edges. Always wash your hands carefully after handling any samples and always dispose of any samples in a safe manner.
Page 2 Helpful Hints 1) The most important parts of your microscope are the lenses. Handle them with care. If the lenses are dirty or dusty you can clean them with a soft cotton cloth or a special lens cleaning tissue. Do not wipe them with a finger or a regular facial tissue. 2) If you are not going to use your microscope for a week or more take out the two AA batteries that power the illuminator.
Page 3 7) Turn the focusing knob until the objective lens is almost touching the slide. Don’t let the lens touch the slide as you may break the slide and damage the lens. Now look through the eyepiece and slowly turn the focusing knob back until you see the sample clearly. How to Make a Prepared Slide Samples for examination should be very thin so that light can pass through them.
Page 4 BATTERY INFORMATION: This unit uses two AA batteries. Always use fresh batteries. If the unit will not be used for an extended term remove the batteries. Do not try and recharge non-rechargeable batteries. Do not take batteries apart. Do not short circuit the terminals. Do not dispose of batteries in fire. They may explode.
