Summary of Contents for Oypla 4010

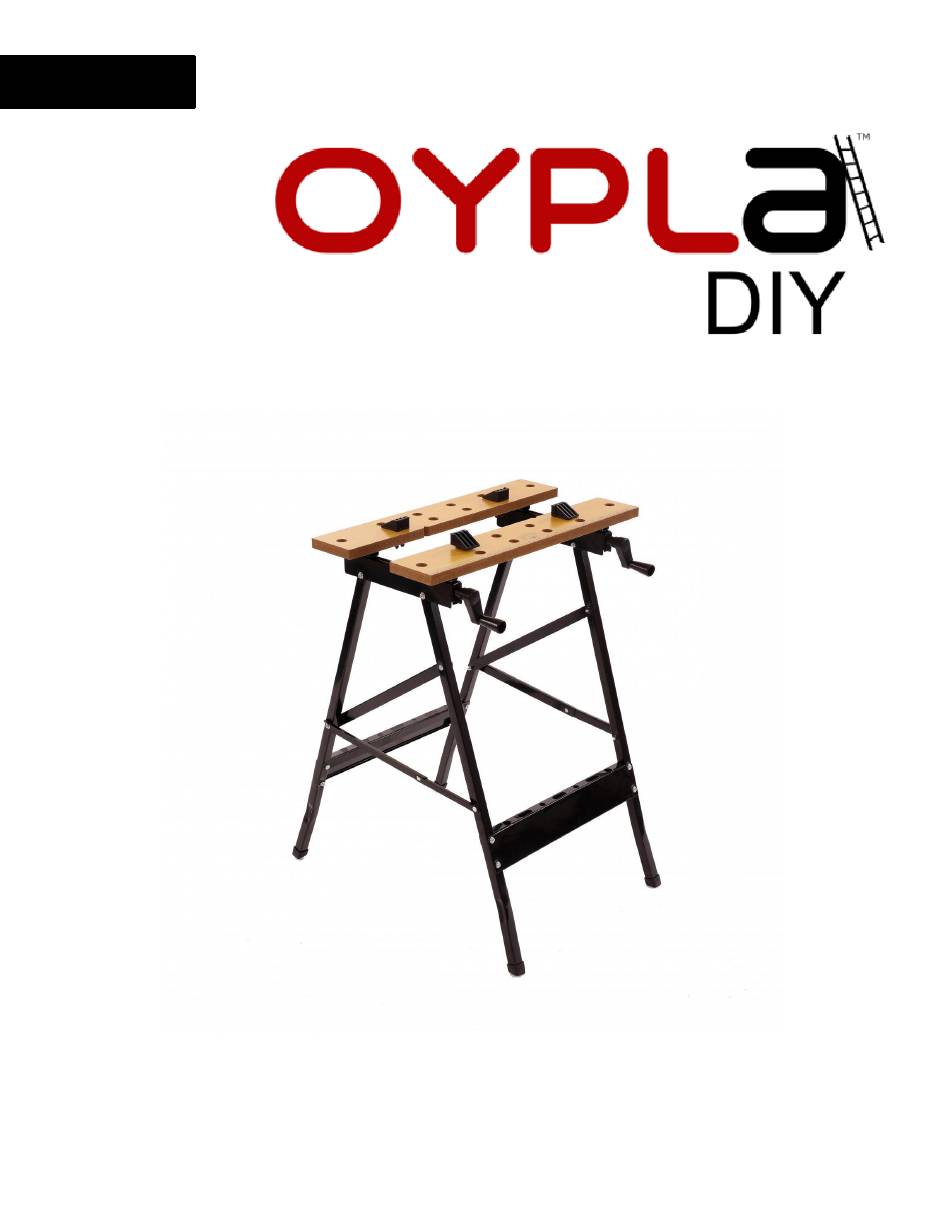

- Page 1 User Manual Workbench USER MANUAL Model No: 4010...
- Page 2 Clean only with a damp cloth. Do not use strong industrial cleaning substances. If the product is damaged or has any defects, please contact cservice@oypla.com Never exceed the maximum load capacity of 100kg, or it may result in product failure and/or personal injury. USER MANUAL Model No: 4010...
- Page 3 4.8mm x 16mm Slide Base Small Screws and Nuts (Hex M6 x P1.0) Washers 20 (6 Spare) Large Screws and Nuts (Nylon M6 X P1.2 Cross Bar Leg Frame Plastic Feet Pads Leg Frame Support Poles USER MANUAL Model No: 4010...
- Page 4 Step 2: Now, attach the slide base to the upside down table tops using all 16 wood screws (2). Again see photos for help as each slide base must attach to both table tops. USER MANUAL Model No: 4010 USER MANUAL Model No: 4010...
- Page 5 (8) as seen in the photos below – Repeat these steps for the remaining support pole. Step 5: Simply turn the assembled product over and insert all four feet pads (9) to the bottom of each leg. Once done turn back over. USER MANUAL Model No: 4010...
- Page 6 (4 & 5). Ensure securely tightened. Step 7: Finally, insert the 4 clampers (12) into any desired location by pushing them through the circular holes on the table tops (1). Imported by Oypla.com LLP, Uxbridge, UB8 2FX USER MANUAL Model No: 4010...
