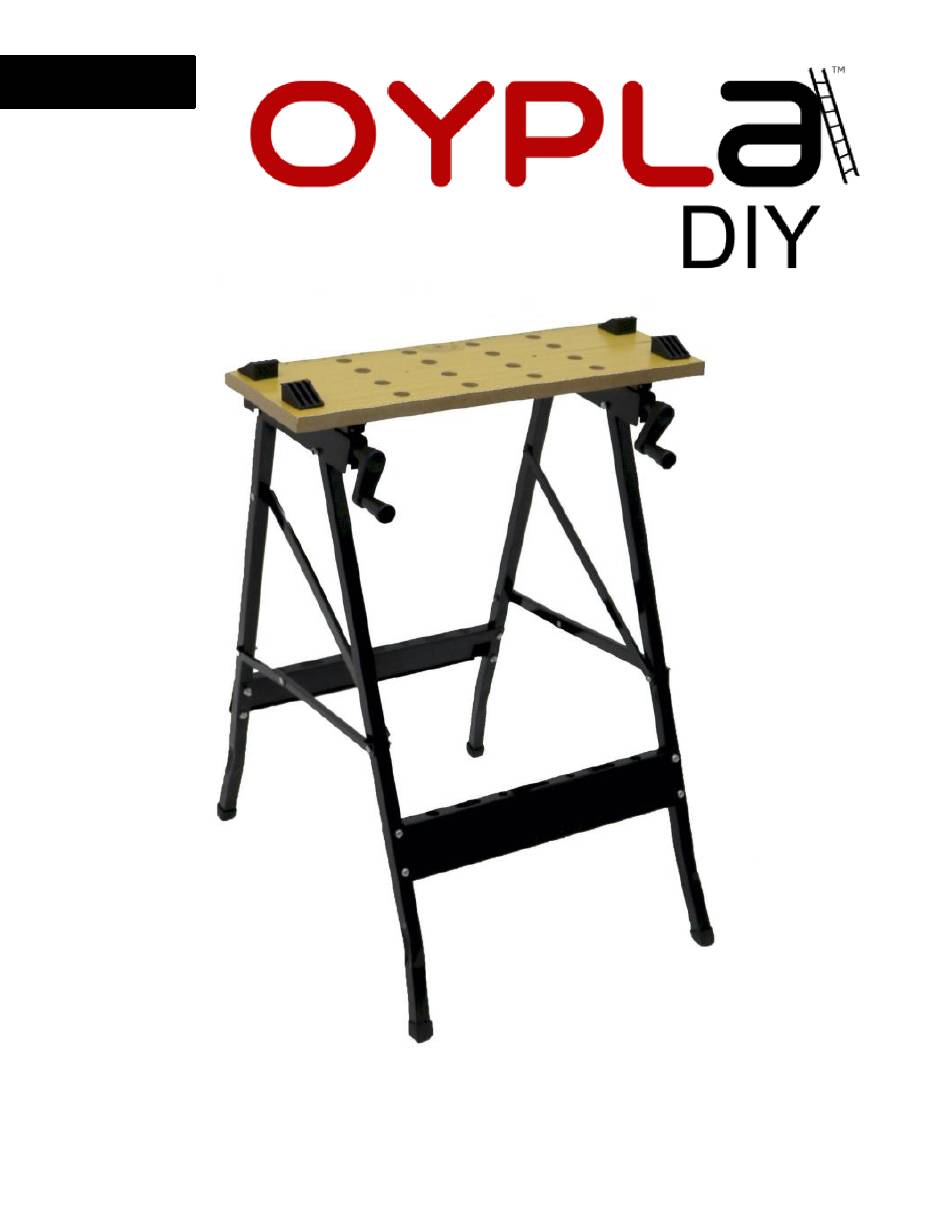

- Page 1 User Manual Workbench USER MANUAL Model No: 4010...
- Page 2 All nuts must be tightened before use. • Keep away from fire. • Clean only with a damp cloth. Do not use strong industrial cleaning substances. • If the product is damaged or has any defects, please contact cservice@oypla.com USER MANUAL Model No: 4010...
-
Page 3: Parts List
4.8mm x 16mm Slide Base Bolts M6 x P4.0 x 28mm Washers Ø13 x Ø6 x 0.8 Nuts (hex) M6 x P1.0 Cross Bar Leg Frame Plastic Pad Bolts (hex) Nuts (nylon) M6 X P1.2 Clamper USER MANUAL Model No: 4010... - Page 4 (11) from the outside and attach the washers (11) and nuts (12) from the inside. Tighten bolts and nuts with spanners and screwdrivers. Step 5: Select suitable holes on table top to fix the clampers (13). USER MANUAL Model No: 4010...
