5. Using Phillips-head screws (F3c), fasten the upper back panel
(P4) to the lower back panel (P5) and the lower back panel to the
cabinet bottom (P3).
6. Tighten all back panel screws completely.
7. Starting with the front of the cabinet, and using the Allen wrench
(provided), tighten all of the bolts completely.

Install Shelves

Plan your shelf heights and install the 2 shelves (P6 and P6m) starting
from the bottom. The shelves are supported by the metal loops on
the side walls of the cabinet.
1. Determine the placement of the 2 shelves (P6—1 shelf without
magnets, P6m—1 shelf with magnets).
2. Place the shelf in the cabinet so that the long edge with the holes
(P6) or the long edge with the magnets (P6m) is toward the front
of the cabinet.

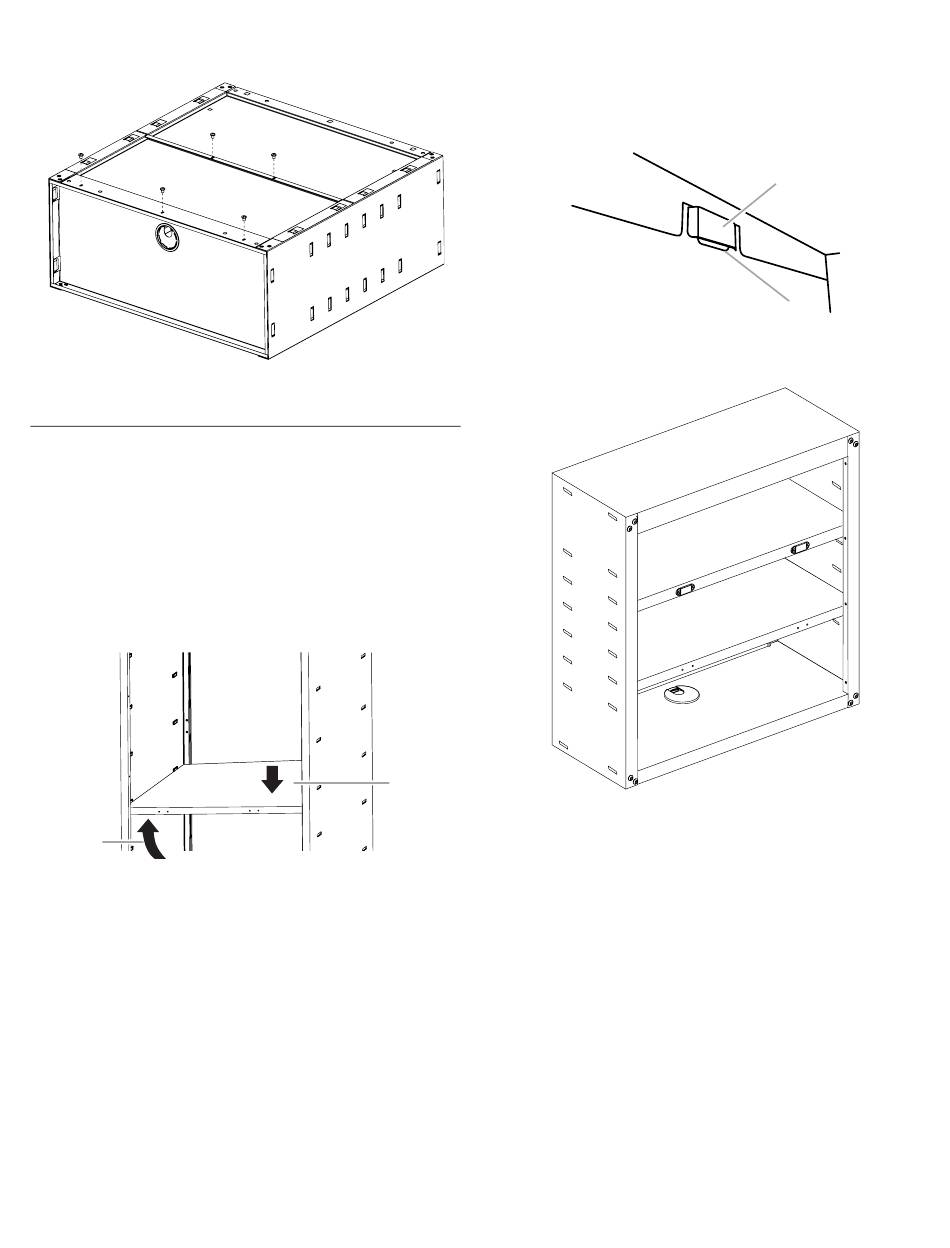

3. Tilt the shelf so that one end is higher than the other as shown.
NOTE: The higher end of the shelf should be directly above the
cabinet loop at the desired height.
B
A. Push down
B. Lift up
4
4. Push the shelf edge down so that the shelf tabs go into the
cabinet loops.
5. Lift up on the lower end of the shelf so that it is above the desired
cabinet loop and push the shelf down into place.
NOTE: Check that the shelf tabs are in place behind all the
cabinet loops, as shown.
6. Repeat steps 2 through 5 to install the other shelf.
A
A. Cabinet loop
B. Shelf tab
