BluStream HEX11WP-RX Quick Reference Manual

Introduction

FEATURES:

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Extends HDMI at 1080p up to a distance of 70m
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD
Master Audio transmission
• Supports CEC and RS-232 pass-through
• Supports bi-directional IR pass-through to compatible HDBaseT™ device
• Supports 12V-48V PoC from compatible Blustream HDBaseT™ transmitter / matrix products
• Compatible with all Blustream HDBaseT™ transmitter / matrix products*
• Magnetic faceplate surround allowing both UK & EU backbox compatibility
• HDCP 2.2 support
*Technical performance is subject to the features supported on the connected HDBaseT™ device.
Contact:
support@blustream.com.au
HEX11WP-RX
Quick Reference Guide

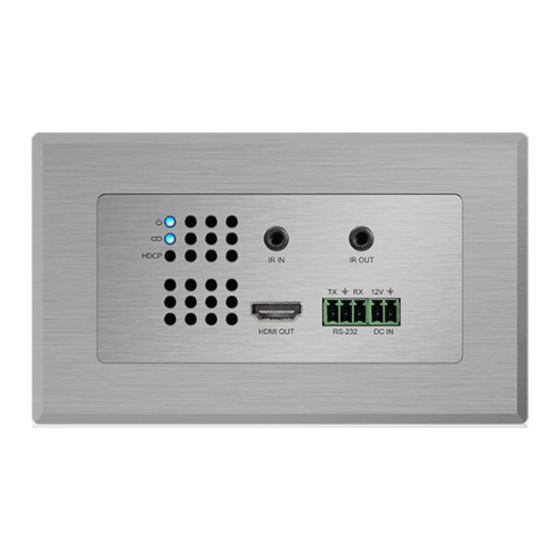

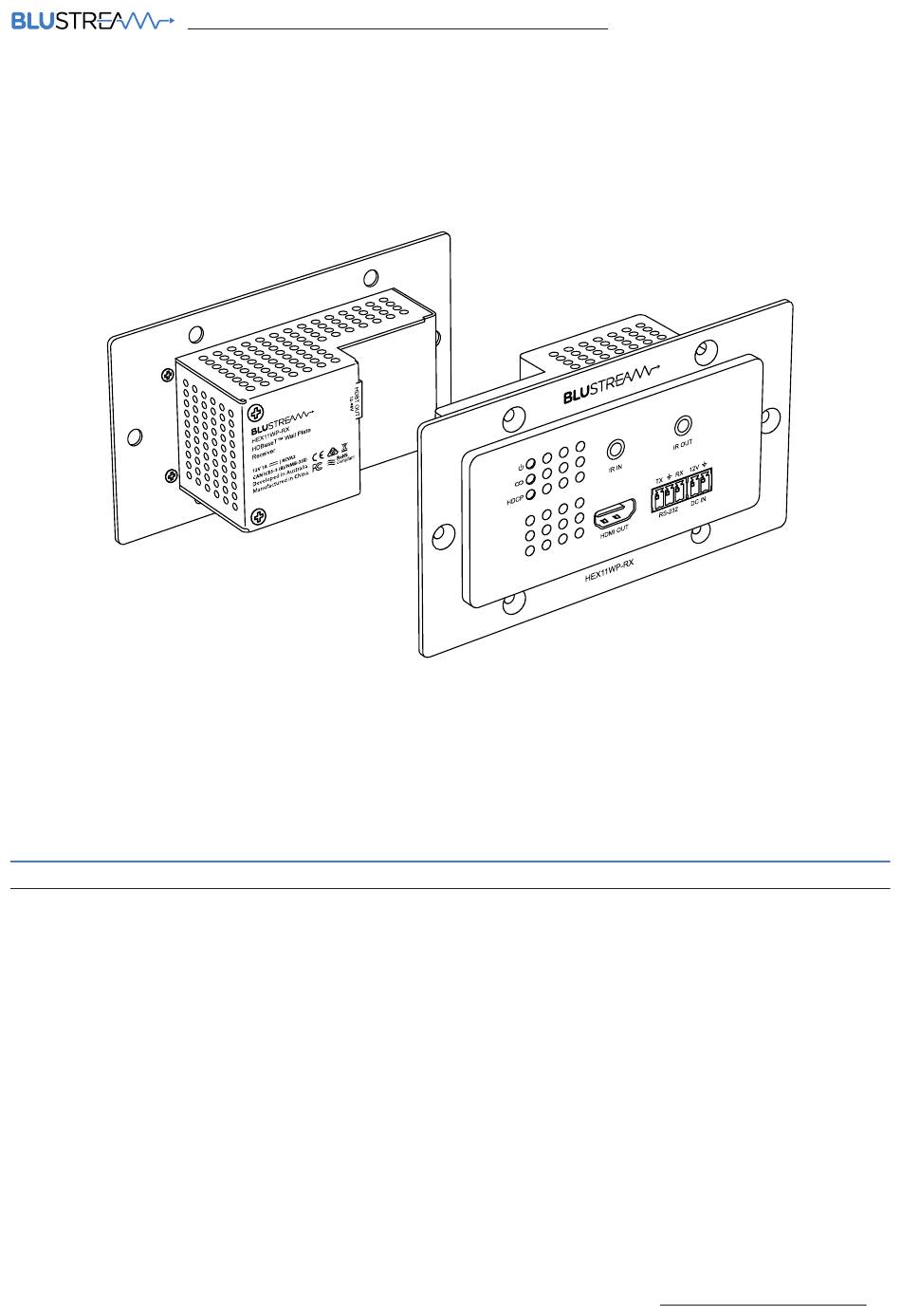

Our HEX11WP HDMI Wall Plate HDBaseT™ Receiver is a 4K solution designed to
receive a HDBaseT™ signal from a compatible HDBaseT™ transmitter up to 70m
at 1080p (40m 4K 60Hz 4:2:0/4K 30Hz 4:4:4). The HEX11WP-RX has been designed
to work with all Blustream HDBaseT™ transmitter and matrix solutions, be
installed in both UK and European backboxes and can be powered locally or from
compatible Blustream HDBaseT™ products.
|
support@blustream-us.com
HEX11WP-RX
|
support@blustream.co.uk
QUICK REFERENCE GUIDE
01
