Introduction

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR

• Extends HDMI 1080p up to a distance of 70m over a single CAT cable

• Supports 4K 60Hz 4:4:4 UHD video up to 40m

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• Automatic downscaling of up to 4K 60Hz 4:4:4 video input to 1080p

• Supports ARC (Audio Return Channel) from connected display via HDMI or Optical digital inputs (when used with

compatible Blustream transmitter / matrix)

• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission

• Bi-directional RS-232 pass-through

• Supports bi-directional IR pass-through to compatible HDBaseT™ device

• Supports PoC (Power over Cable) from Blustream matrix or transmitter products

• HDCP 2.2 support

RX70CS

Quick Reference Guide

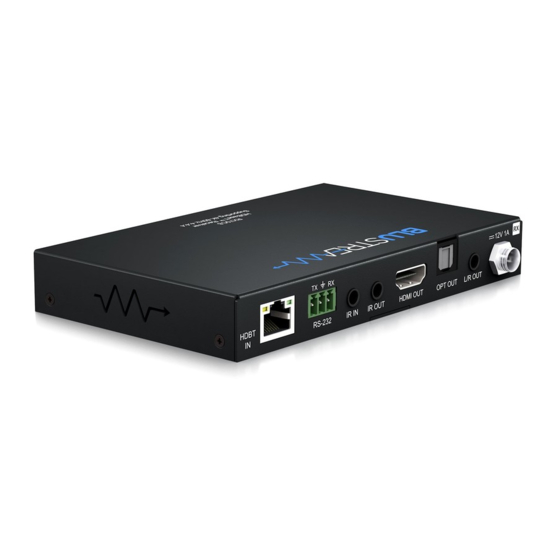

Our RX70CS HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ ARC Receiver

offers market leading features and outstanding value utilising CSC technology.

The product extends HDMI, Bi-directional IR & RS-232 and and is powered by the

matrix up to lengths of 70m (4K 40m). The Receiver features ARC support when

used with compatible Blustream hardware and simultaneous analogue stereo and

Optical Toslink audio breakout.

www.blustream.com.au

RX70CS

QUICK REFERENCE GUIDE

www.blustream-us.com

www.blustream.co.uk

Table of Contents

Do you have a question about the RX70CS and is the answer not in the manual?

Page 1 Quick Reference Guide Introduction Our RX70CS HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ ARC Receiver offers market leading features and outstanding value utilising CSC technology. The product extends HDMI, Bi-directional IR & RS-232 and and is powered by the matrix up to lengths of 70m (4K 40m).
Page 2 Advanced Functions The RX70CS has been designed to partner with all Blustream HDBaseT™ matrix products and will receive audio and video from these devices, as well as bi-directional IR and RS-232 control. Advanced functions such as ARC and CSC will only function with a compatible Matrix or Transmitter product.
Page 3 When installing CAT cables it is advised that you use the best possible CAT cable quality possible. HDMI distribution products will only work if used with CAT5e standard cable or above. Blustream recommends using a CAT6 (or better) cable for your installations, especially when running over longer distances, in areas of high EMI, or for 4K signal distribution.

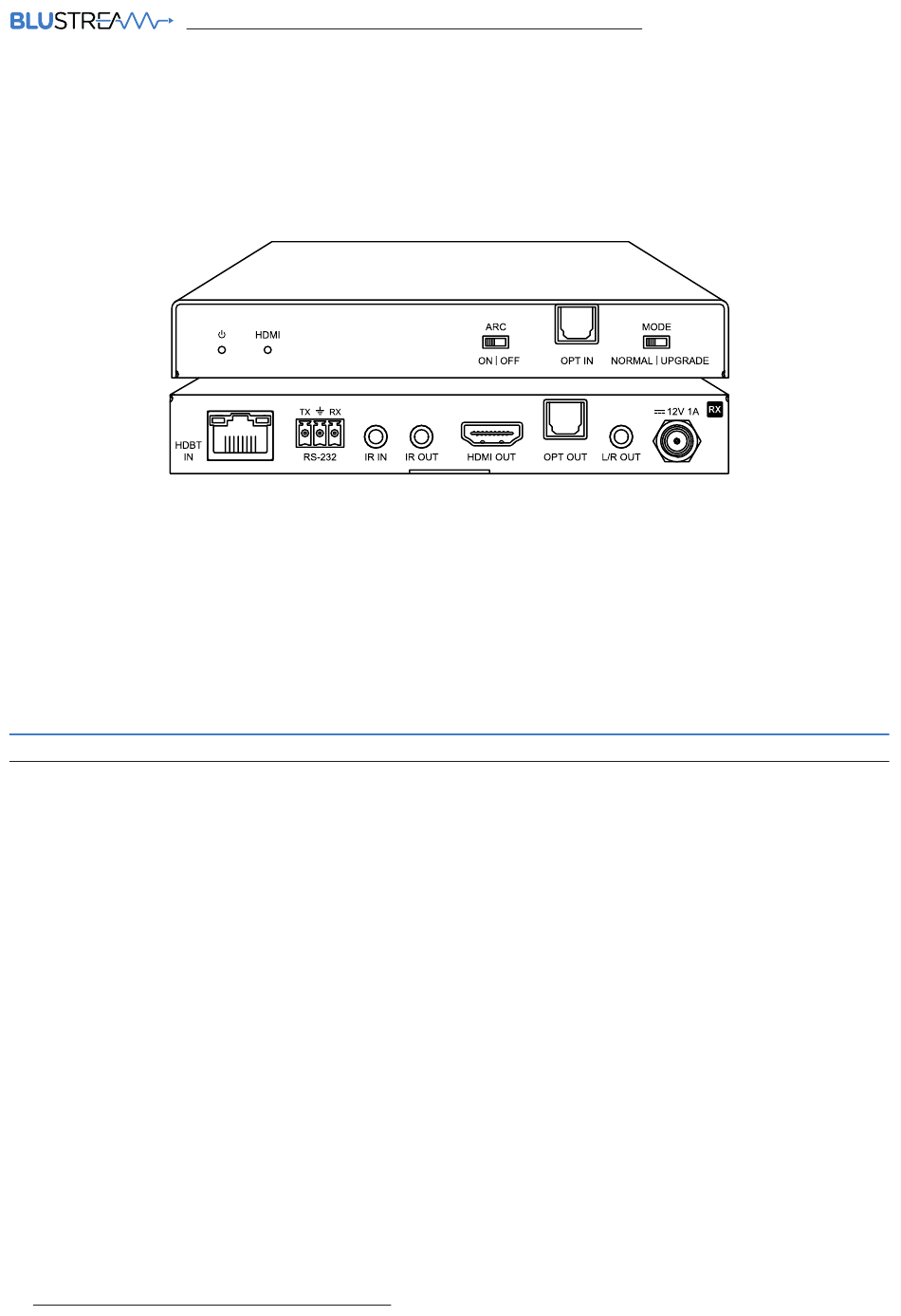

Page 4 Package Contents RX70CS RX70CS • Video Input Connectors: 1 x HDBaseT™ RJ45 connector • 1 x RX70CS • 1 x Mounting Bracket Set • Video Output Connectors: 1 x HDMI Type A, female • 1 x Quick Reference Guide • RS232 Input Port: 1 x 3-pin Phoenix connector •...
