Cisco SFE2010 Datasheet

© 2008-2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Cisco SFE2010 48-Port 10/100 Ethernet Switch
Cisco Small Business Managed Switches
Secure, Reliable Switching for Growing Small Businesses

Highlights

Connects up to 48 network devices - PCs, printers, and servers - to share and transfer files
●
and videos across your network
Resilient Clustering provides the ability to add more switches as needed, with the ability to
●
manage a stack as a single switch to support growing businesses
Intelligent QoS helps ensure a consistent network experience and supports networked
●
applications including voice, video, and data storage
Strong security protects network traffic to keep unauthorized users off the network
●
Simplified, web-based management for easy installation and configuration
●

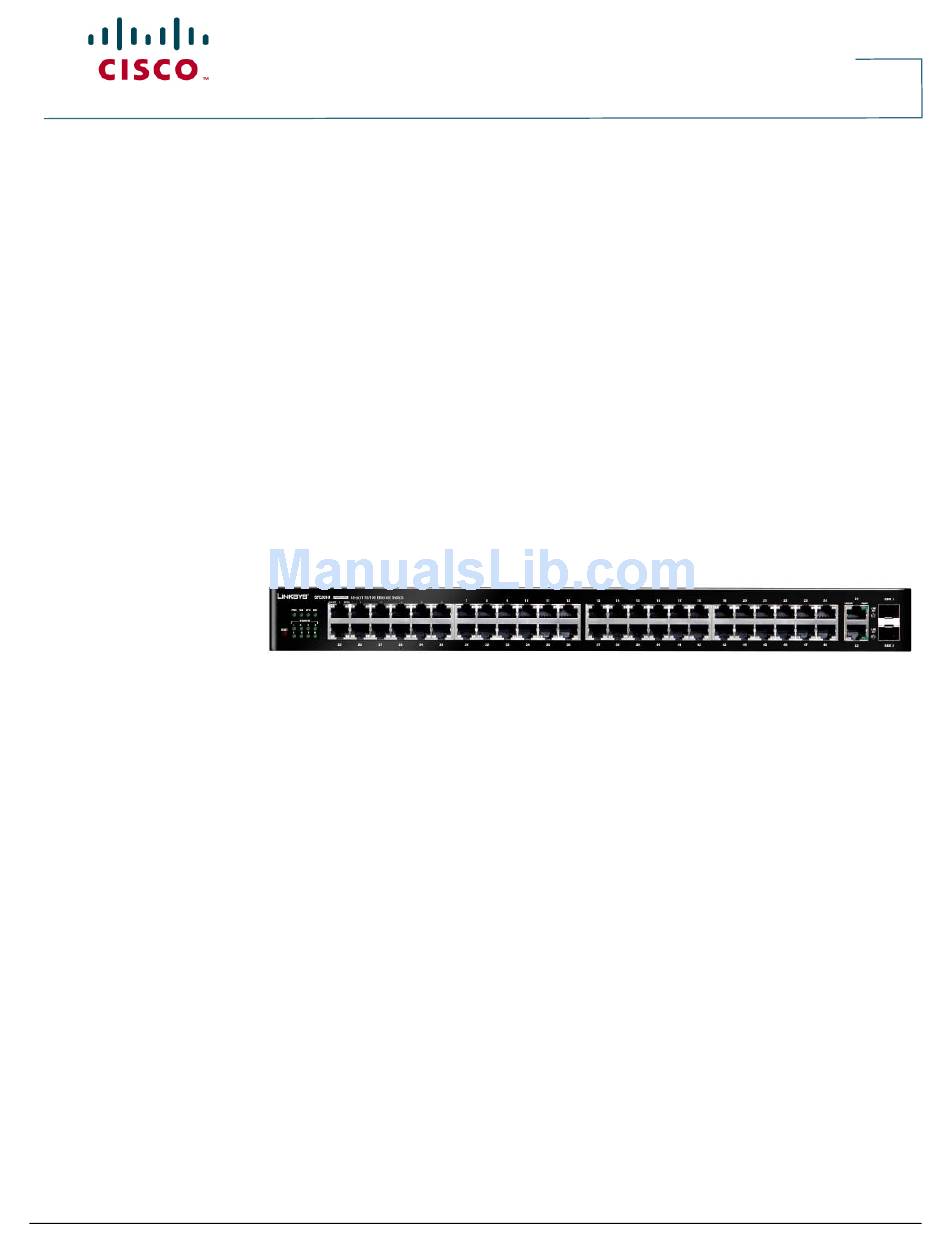

Figure 1. Cisco SFE2010 48-Port 10/100 Ethernet Switch

Product Overview

®
The Cisco SFE2010 48-Port 10/100 Ethernet Switch (Figure 1) allows you to expand your
network securely. Web-based configuration of the switch is secured using SSL.
The Cisco SFE2010 is optimized for maximum system availability, with fully redundant stacking,
redundant power options, and dual images for resilient firmware upgrades. The switch helps
secure the network through IEEE 802.1Q VLANs, IEEE 802.1X port authentication, access control
lists (ACLs), denial-of-service (DoS) prevention, and MAC-based filtering. The enhanced quality of
service (QoS) and traffic-management features help ensure clear and reliable voice and video
communications.
The Cisco SFE2010 provides resilient stacking for up to four units, or 192 ports. A stack of units is
managed as a single switch with one web management interface. The SFE2010 switch can coexist
in a stack with the Cisco SFE2000 and SFE2000P 24-Port 10/100 Ethernet Switches and the
Cisco SFE2010P 48-Port 10/100 Ethernet Switch, for a maximum of 192 ports in a stack. The
stacking capability includes master/backup unit behavior, ring and chain architecture, and hot
insertion and removal of units.
An intuitive, highly secure management interface provides access to the comprehensive feature
set of the Cisco SFE2010, for a better-optimized, more secure network.
Data Sheet
Page 1 of 5
