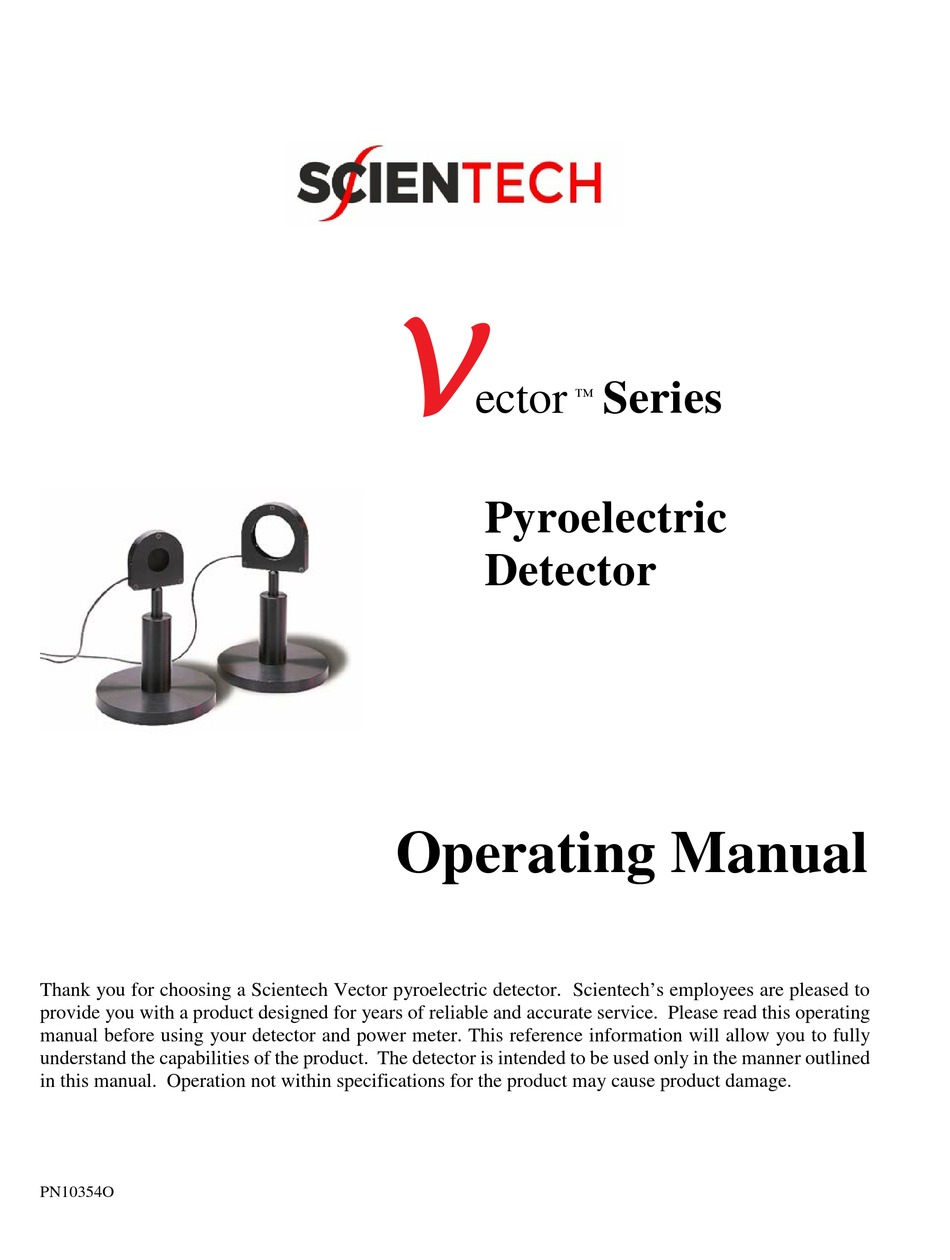

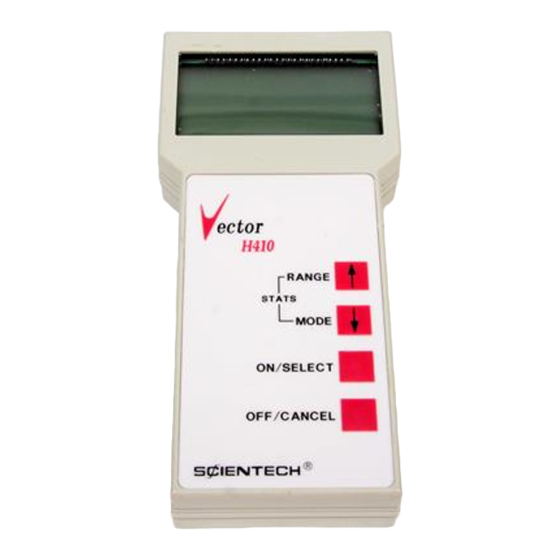

Thank you for choosing a Scientech Vector pyroelectric detector. Scientech's employees are pleased to
provide you with a product designed for years of reliable and accurate service. Please read this operating
manual before using your detector and power meter. This reference information will allow you to fully
understand the capabilities of the product. The detector is intended to be used only in the manner outlined
in this manual. Operation not within specifications for the product may cause product damage.
PN10354O
V
ector
Pyroelectric
Detector
Operating Manual
Series
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vector Series and is the answer not in the manual?

Questions and answers

Related Manuals for ScienTECH Vector Series

Summary of Contents for ScienTECH Vector Series

  • Page 1 Detector Operating Manual Thank you for choosing a Scientech Vector pyroelectric detector. Scientech’s employees are pleased to provide you with a product designed for years of reliable and accurate service. Please read this operating manual before using your detector and power meter. This reference information will allow you to fully understand the capabilities of the product.

  • Page 2: Table Of Contents

    Pyroelectric Detector Absorption Characteristics ..................6 Correcting Pyroelectric Detector Operating Parameters for Use at Different Wavelengths ....6 Detector Operation Without a Power meter .....................7 Scientech Calibration Service .........................7 Limited Warranty .............................7 Returned Material Procedure ........................8 Disposal of Electrical and Electronic Equipment: ...................8 HD Pyroelectric Absorption vs.

  • Page 3: Detector Operating Parameters

    ETECTOR PERATING ARAMETERS Pyroelectric Detector 1: Model No: __________ Serial No: __________ Calibration Wavelength: __________nm or µm Output Sensitivity: __________V/J Calibration Temp: __________°C Pyroelectric Detector 2: Model No: __________ Serial No: __________ Calibration Wavelength: __________nm or µm Output Sensitivity: __________V/J Calibration Temp: __________°C PN10354O...

  • Page 4: Vector™ Pyroelectric Detector Specifications

    ™ P ECTOR YROELECTRIC ETECTOR PECIFICATIONS Model P 25 PHF 25 PHD 25 PHDX 25 PHDX25UV SP 25 SPHF 25 SPHD 25 Aperture Diameter 25.4 mm 25.4 mm 25.4 mm 25.4 mm 25.4 mm 25.4 mm .193-26μm .193-10.6μm .4-2μm .193-2μm .193-26μm .193-10.6μm Spectral Response...

  • Page 5: Ce Mark Certification

    A 3 meter BNC interconnect cable is included for all standard models. A BNC cable is permanently hardwired to slim profile models. If you are using a Scientech power meter, connect the detector to the power meter with its cable. Follow the detailed set up instructions that are in the power meter’s instruction manual.

  • Page 6: Pyroelectric Detector Absorption Characteristics

    Due to variability in the manufacturing process the absorption characteristics of the HD and P model detectors can vary in the UV region (190 to 400nm). Scientech recommends optical calibration at 266nm if the detector is to be used in the UV region instead of relying on an absorption rate in the chart at the end of this manual.

  • Page 7: Detector Operation Without A Power Meter

    Scientech product specifications for a period of three (3) years. The product warranty period begins on the date of shipment from Scientech. Scientech warrants that its products shall conform to applicable Scientech specifications and drawings and will meet all the functional and performance requirements when properly installed, operated, and maintained in accordance with Scientech’s operating manual.

  • Page 8: Returned Material Procedure

    Product. ETURNED ATERIAL ROCEDURE Should it become necessary to return any product to Scientech for any reason including calibration, please visit Scientech’s website at www.scientechinc.com to obtain an RMA (returned material authorization) number and complete the form. You may also contact our Product Service Department at (800)525-0522 or (303)444-1361 or Fax (303)444-9229 or email inst@scientechinc.com.

  • Page 9: Hd Pyroelectric Absorption Vs. Wavelength

    HD P YROELECTRIC BSORPTION VS AVELENGTH Use this table for all standard and slim profile HD model pyroelectric detectors. Wavelength Absorption Wavelength Absorption Wavelength Absorption Wavelength Absorption μm μm μm μm 0.200 93.66 0.480 94.71 0.735 93.99 0.990 93.34 0.210 93.78 0.485 94.75...
  • Page 10 Wavelength Absorption Wavelength Absorption Wavelength Absorption Wavelength Absorption μm μm μm μm 1.245 91.78 1.510 91.70 1.775 90.84 2.016 90.87 1.250 91.79 1.515 91.66 1.780 90.86 2.019 91.03 1.255 91.76 1.520 91.58 1.785 90.83 2.020 90.69 1.260 91.75 1.525 91.59 1.790 90.78 2.022...
  • Page 11 Wavelength Absorption Wavelength Absorption Wavelength Absorption Wavelength Absorption μm μm μm μm 2.129 90.76 2.255 90.17 2.390 89.92 2.557 89.30 2.130 90.41 2.258 90.14 2.392 89.92 2.562 89.25 2.132 90.05 2.260 90.11 2.395 89.91 2.567 89.23 2.135 90.41 2.262 90.12 2.396 89.72 2.572...
  • Page 12 Wavelength Absorption Wavelength Absorption Wavelength Absorption Wavelength Absorption μm μm μm μm 2.855 89.26 3.233 88.79 3.725 88.11 4.394 87.66 2.862 89.24 3.241 88.75 3.736 88.10 4.409 87.64 2.868 89.25 3.249 88.75 3.747 88.09 4.424 87.63 2.874 89.23 3.257 88.76 3.758 88.07 4.440...
  • Page 13 Wavelength Absorption Wavelength Absorption Wavelength Absorption Wavelength Absorption μm μm μm μm 5.357 86.95 6.682 86.05 8.879 84.32 13.09 80.67 5.379 86.95 6.717 86.06 8.940 84.27 13.23 80.54 5.401 86.94 6.752 86.07 9.002 84.22 13.36 80.36 5.424 86.90 6.787 86.00 9.065 84.17 13.50...

  • Page 14: Hf Model Pyroelectric Detector Absorption Vs. Wavelength

    HF M ODEL YROELECTRIC ETECTOR BSORPTION VS AVELENGTH Use this table for standard and slim profile high frequency (HF) model pyroelectric detectors. Wavelength Absorption Wavelength Absorption Wavelength Absorption Wavelength Absorption 0.188 66.96 0.239 59.27 0.290 54.97 0.680 51.99 0.189 66.91 0.240 59.02 0.291...
  • Page 15 Wavelength Absorption Wavelength Absorption Wavelength Absorption Wavelength Absorption 1.19 57.51 1.72 59.65 2.080 60.24 2.273 60.01 1.20 57.58 1.73 59.60 2.083 60.25 2.277 59.99 1.21 57.75 1.74 59.65 2.087 60.26 2.281 59.99 1.22 57.93 1.75 59.70 2.090 60.25 2.285 59.99 1.23 58.09 1.76...
  • Page 16 Wavelength Absorption Wavelength Absorption Wavelength Absorption Wavelength Absorption 2.506 59.78 2.792 59.49 3.151 59.47 3.616 59.36 2.511 59.75 2.798 59.46 3.158 59.47 3.626 59.35 2.516 59.74 2.804 59.44 3.166 59.47 3.636 59.35 2.520 59.75 2.810 59.50 3.174 59.48 3.646 59.35 2.525 59.74 2.816...
  • Page 17 Wavelength Absorption Wavelength Absorption Wavelength Absorption Wavelength Absorption 4.242 58.64 5.152 58.08 6.557 57.69 9.018 58.14 4.256 58.66 5.172 58.07 6.591 57.67 9.081 58.20 4.270 58.60 5.193 58.04 6.624 57.73 9.145 58.26 4.284 58.59 5.214 58.05 6.658 57.81 9.210 58.32 4.299 58.66 5.235...
  • Page 18 Wavelength Absorption Wavelength Absorption Wavelength Absorption Wavelength Absorption 14.434 44.72 16.446 29.57 19.109 42.50 22.802 47.84 14.596 44.02 16.657 27.22 19.395 43.95 23.210 48.44 14.762 43.45 16.873 25.74 19.689 45.40 23.633 48.80 14.932 43.14 17.095 26.08 19.992 46.70 24.071 47.13 15.106 42.72 17.324...

  • Page 19: P Model Pyroelectric Detector Absorption Vs. Wavelength

    ODEL YROELECTRIC ETECTOR BSORPTION VS AVELENGTH Use this table for standard and slim profile painted (P) model pyroelectric detectors. Wavelength Absorption Wavelength Absorption Wavelength Absorption μm μm μm 0.30 96.850 1.50 94.931 4.00 80.251 0.40 96.850 1.60 94.094 4.22 77.191 0.50 96.850 1.70...
