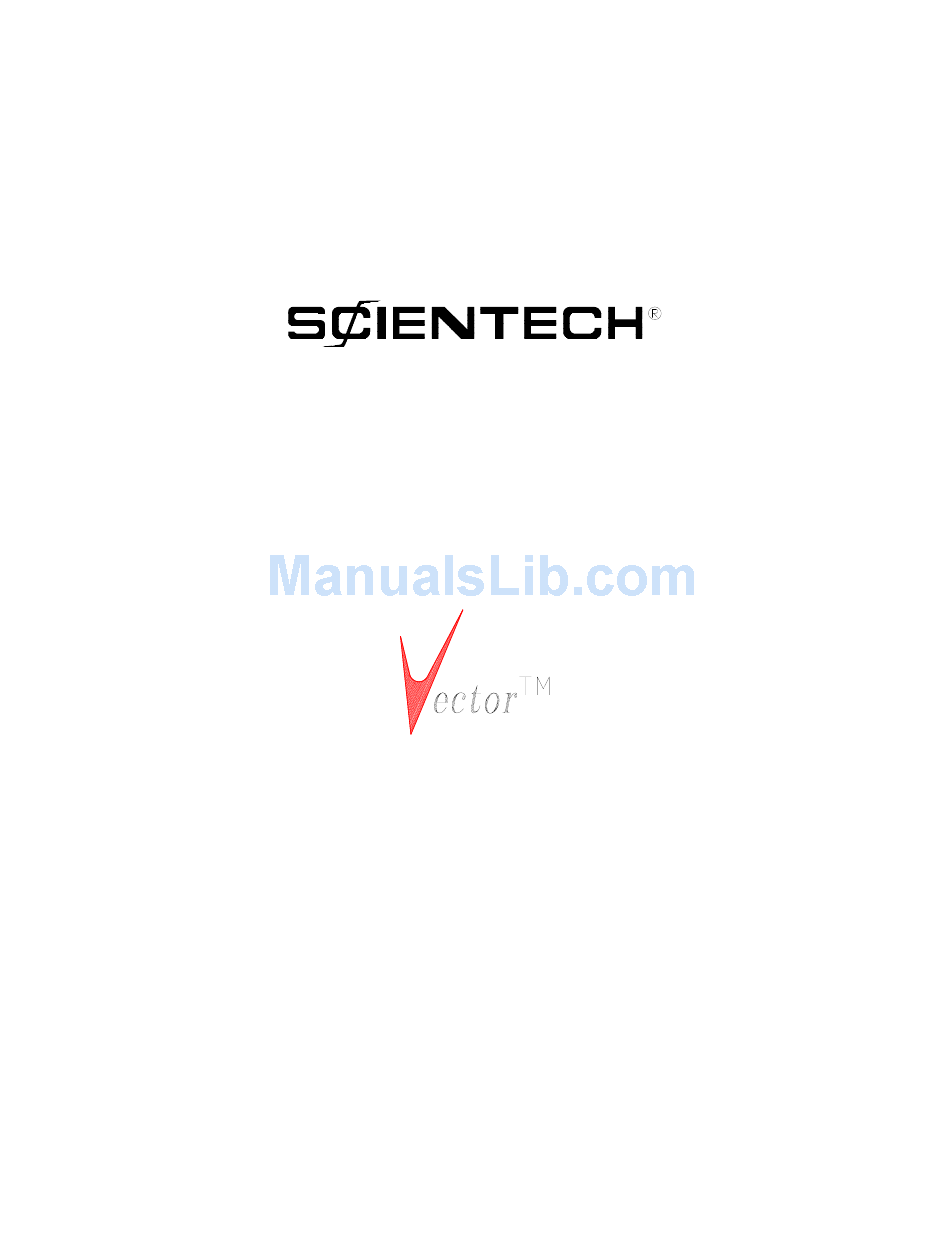

  • Page 1 Pyroelectric Detector Setup and Operating Procedures PN10354M...
  • Page 2 Thank you for choosing a Scientech Vector pyroelectric detector. Scientech, an ISO 9001 registered company, and our employees are pleased to provide you with a product designed for years of reliable service. Please read this manual completely before using your indicator. This information will enable you to fully utilize the equipment and should be located nearby for reference.
  • Page 3 ™ P ECTOR YROELECTRIC ETECTOR PECIFICATIONS Model P 25 PHF 25 PHD 25 PHDX 25 PHDX25UV SP 25 SPHF 25 SPHD 25 Aperture Diameter 25.4 mm 25.4 mm 25.4 mm 25.4 mm 25.4 mm 25.4 mm Spectral Response .193-26µm .193-10.6µm .4-2µm .193-2µm .193-26µm...

  • Page 4: Unpacking And Setup

    A 3 meter BNC interconnect cable is included for all standard models. A BNC cable is permanently hardwired to slim profile models. If you are using a Scientech indicator, connect the detector to the indicator with its cable. Follow the detailed set up instructions that are in the indicator’s instruction manual. If you are not using a Scientech indicator, operating requirements are contained in this manual.
  • Page 5 NOTE: Due to variability in the manufacturing process the absorption characteristics of the HD and P model detectors can vary in the UV region (190 to 400nm). Scientech recommends optical calibration at 266nm if the detector is to be used in the UV region instead of relying on an absorption rate in the chart at the end of this manual.

  • Page 6: Factory Recalibration

    All Scientech Laser Power and Energy Measurement Systems are warranted against defects in materials and workmanship for two (2) years from date of delivery. During the warranty period, Scientech will repair, or at its option replace at no charge, components that prove to be defective. The equipment must be returned, shipping prepaid, to Scientech's product service facility.
  • Page 7 HD P YROELECTRIC BSORPTION VS AVELENGTH Use this table for all standard and slim profile HD model pyroelectric detectors. Wavelength Absorption Wavelength Absorption Wavelength Absorption Wavelength Absorption µm µm µm µm 0.200 93.66 0.480 94.71 0.735 93.99 0.990 93.34 0.210 93.78 0.485 94.75...
  • Page 8 Wavelength Absorption Wavelength Absorption Wavelength Absorption Wavelength Absorption µm µm µm µm 1.245 91.78 1.510 91.70 1.775 90.84 2.016 90.87 1.250 91.79 1.515 91.66 1.780 90.86 2.019 91.03 1.255 91.76 1.520 91.58 1.785 90.83 2.020 90.69 1.260 91.75 1.525 91.59 1.790 90.78 2.022...
  • Page 9 Wavelength Absorption Wavelength Absorption Wavelength Absorption Wavelength Absorption µm µm µm µm 2.129 90.76 2.255 90.17 2.390 89.92 2.557 89.30 2.130 90.41 2.258 90.14 2.392 89.92 2.562 89.25 2.132 90.05 2.260 90.11 2.395 89.91 2.567 89.23 2.135 90.41 2.262 90.12 2.396 89.72 2.572...
  • Page 10 Wavelength Absorption Wavelength Absorption Wavelength Absorption Wavelength Absorption µm µm µm µm 2.855 89.26 3.233 88.79 3.725 88.11 4.394 87.66 2.862 89.24 3.241 88.75 3.736 88.10 4.409 87.64 2.868 89.25 3.249 88.75 3.747 88.09 4.424 87.63 2.874 89.23 3.257 88.76 3.758 88.07 4.440...
  • Page 11 Wavelength Absorption Wavelength Absorption Wavelength Absorption Wavelength Absorption µm µm µm µm 5.357 86.95 6.682 86.05 8.879 84.32 13.09 80.67 5.379 86.95 6.717 86.06 8.940 84.27 13.23 80.54 5.401 86.94 6.752 86.07 9.002 84.22 13.36 80.36 5.424 86.90 6.787 86.00 9.065 84.17 13.50...
  • Page 12 HF M ODEL YROELECTRIC ETECTOR BSORPTION VS AVELENGTH Use this table for standard and slim profile high frequency (HF) model pyroelectric detectors. Wavelength Absorption Wavelength Absorption Wavelength Absorption Wavelength Absorption µm µm µm µm 0.200 58.05 0.68 51.99 1.19 57.51 1.70 59.91 0.210...
  • Page 13 Wavelength Absorption Wavelength Absorption Wavelength Absorption Wavelength Absorption µm µm µm µm 2.067 60.27 2.257 60.06 2.487 59.79 2.768 59.39 2.070 60.28 2.261 60.05 2.491 59.80 2.774 59.45 2.073 60.24 2.265 60.05 2.496 59.81 2.780 59.44 2.077 60.24 2.269 60.05 2.501 59.80 2.786...
  • Page 14 Wavelength Absorption Wavelength Absorption Wavelength Absorption Wavelength Absorption µm µm µm µm 3.120 59.47 3.576 59.37 4.188 58.92 5.052 58.11 3.128 59.47 3.586 59.36 4.201 58.80 5.071 58.09 3.135 59.47 3.596 59.36 4.215 58.63 5.091 58.09 3.143 59.48 3.606 59.36 4.229 58.56 5.111...
  • Page 15 Wavelength Absorption Wavelength Absorption Wavelength Absorption Wavelength Absorption µm µm µm µm 6.365 57.97 7.870 57.74 10.31 60.33 14.93 43.14 6.396 57.83 7.918 57.73 10.39 60.59 15.11 42.72 6.428 57.83 7.966 57.73 10.47 60.88 15.28 41.67 6.460 57.76 8.015 57.73 10.56 61.18 15.47...
  • Page 16 ODEL YROELECTRIC ETECTOR BSORPTION VS AVELENGTH Use this table for standard and slim profile painted (P) model pyroelectric detectors. Wavelength Absorption Wavelength Absorption Wavelength Absorption µm µm µm 0.30 96.850 1.50 94.931 4.00 80.251 0.40 96.850 1.60 94.094 4.22 77.191 0.50 96.850 1.70...
