OWNERS MANUAL
Form 120015
Inverters
TM
ISO 9001:2000 Certified Company

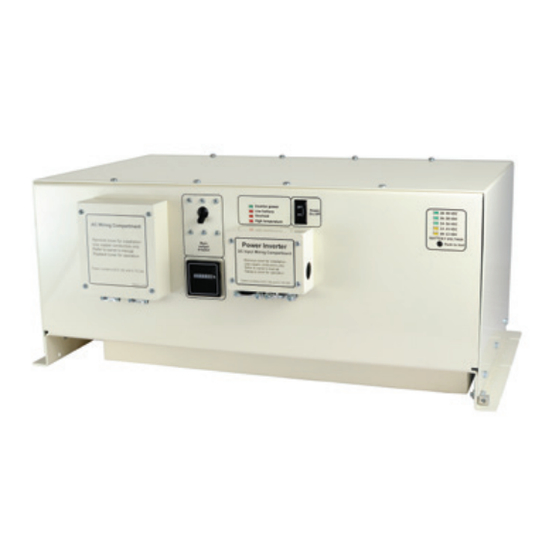

DC to AC Power Inverters
24/3000H-3PH
24/4500H-3PH
24/6000H-3PH
Including Options:
R6: Remote switch 24Vdc
Models
120015E
January 2016
Advertisement
Related Manuals for Magnum Dimensions 24/3000H-3PH
Summary of Contents for Magnum Dimensions 24/3000H-3PH
- Page 1 4467 White Bear Parkway St. Paul, MN 55110 Phone: 651-653-7000 Fax: 651-653-7600 E-mail: inverterinfo@sensata.com Web: www.dimensions.sensata.com January 2016 OWNERS MANUAL ISO 9001:2000 Certified Company DC to AC Power Inverters Models 24/3000H-3PH 24/4500H-3PH 24/6000H-3PH Including Options: R6: Remote switch 24Vdc Form 120015...
- Page 2 FOR SENSATA TECHNOLOGIES spark. Do not mount in a confined battery or gas compartment. INVERTER MODELS CAUTION: Working in the vicinity of lead- 24/3000H-3PH acid battries is dangerous. Batteries gener- 24/4500H-3PH ate explosive gases during operation. There 24/6000H-3PH is a risk of acid exposure. There is also a...
- Page 3 3.06.2 The remote switch should be single pole and have at. least a 5 amp rating, such as Leviton No. 1330-2. The Cable gauge Line fuse wire used should be at least 18 gauge. 24/3000H-3PH 400 amp 24/4500H-3PH 500 amp 24/6000H-3PH 600 amp...
- Page 4 3.06.3 The switch should be mounted at 4. OPERATION a convenient location in a listed outlet box 4.01 To operate the inverter, switch the with approved strain relief. output circuit breaker switch to “ON”. Also 3.06.4 The remote switch should be switch “ON”...
- Page 5 FIGURE 1 3 PHASE INVERTER Output Battery Voltage On/Off Switch Circuit Breaker Indicators Violet wire Running Time Meter Customer supplied On/Off Switch Ground Neutral L2 + 12 VDC* Fuse 24 Volt Auxiliary Battery Pack * +24 V for units with a model designation ending in "R24". Page 5...
- Page 6 Limited Warranty Terms & Conditions SHIPPING TERMS: F.O.B. St. Paul Minnesota. Freight prepaid and billed, subject to prior credit approval. MINIMUM ORDER: $50.00 Net Price LOSS OR DAMAGE: Loss or damage in transit are the responsibility of the carrier. Any claim should be filed with the delivering transport company.
