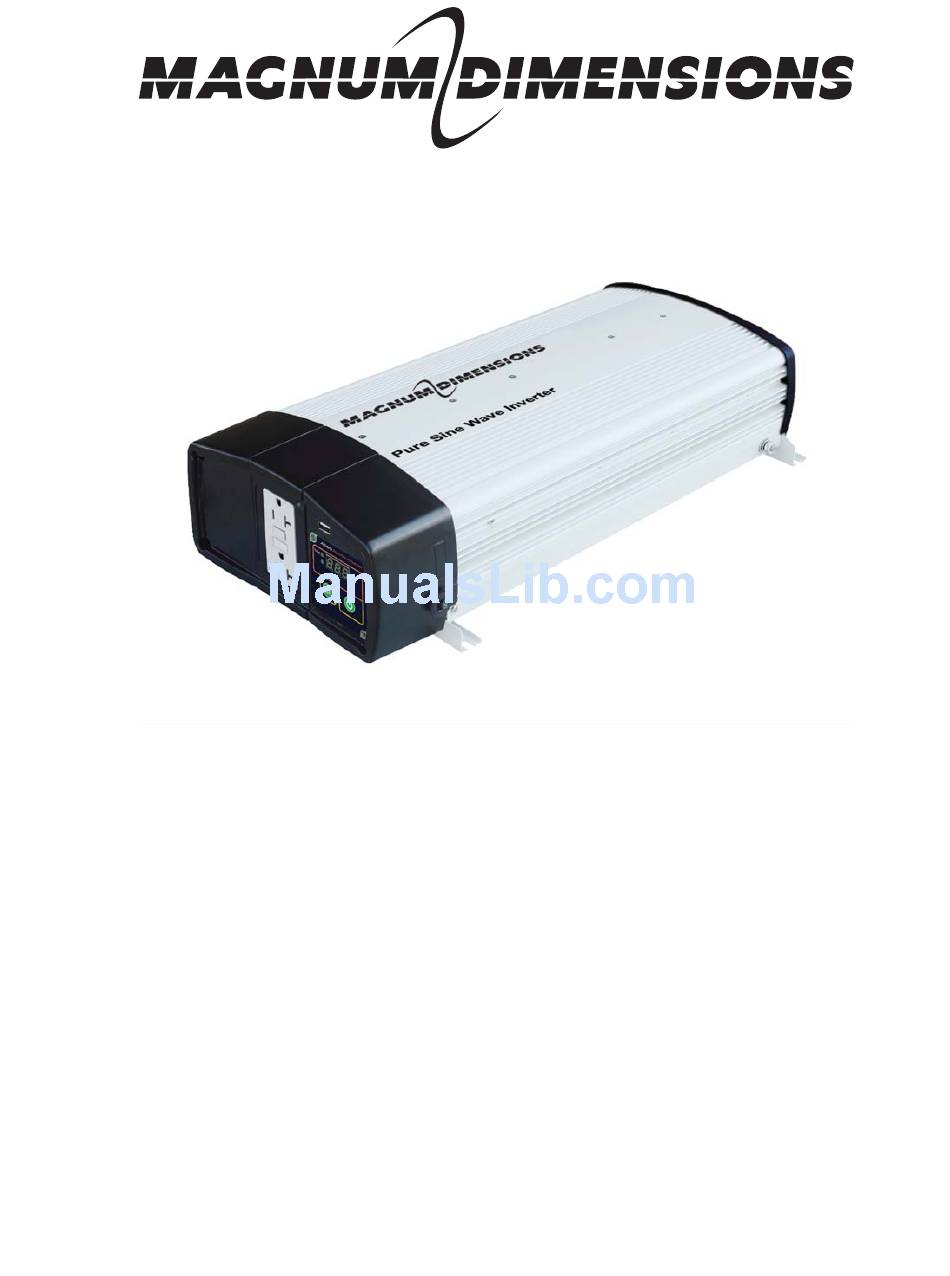

- Page 1 CSW2012-X Pure Sine Wave Inverter Owner’s Manual...
- Page 2 CSW2012-X inverter can reasonably be expected to cause the failure of that life-support device or system, or to affect the safety or effectiveness of that device or system. If the CSW2012-X inverter fails, it is reasonable to assume that the health of the user or other persons may be endangered.
- Page 3 IMPORTANT PRODUCT SAFETY INSTRUCTIONS This manual contains safety instructions that must be followed during the installation and operation of this product. Read all instructions and safety information on the inverter and in this manual before installing or using. Safety Symbols To reduce the risk of electrical shock, fi...
-
Page 4: Table Of Contents
Table of Contents 1.0 Introduction ................1 1.1 Features ................. 1 1.2 How this Inverter Works ............4 1.3 Advantages of a Pure Sine Wave Inverter ........4 2.0 Installation ................5 2.1 Pre-Installation ................ 5 2.1.1 Installation Guidelines ............5 2.1.2 Unpacking and Inspection ........... - Page 5 Figure 1-4, AC Waveforms ..............4 Figure 2-1, Basic System Diagram ............6 Figure 2-2, Approved Mounting Positions ..........8 Figure 2-3, CSW2012-X Dimensions ............. 8 Figure 2-4, DC Cable to Battery Terminals ........... 15 Figure 2-5, DC Cable to Inverter’s DC Terminals ........15 Figure 2-6, AC Wiring (20A By-Pass and GFCI output)) ......
-
Page 6: 1.0 Introduction
CSW2012-X inverter. Features The front panel of the CSW2012-X inverter is equipped with the following features (see Figure 1-1): AC Wiring Access Cover – when this cover is removed, it provides access to the AC wiring terminals used to hardwire all inverter AC input and output wiring (see Figure 1-2). -
Page 7: Figure 1-2, Front Panel Features (Cover Removed)
1.0 Introduction The following front panel features are available on the CSW2012-X inverter when the access cover is removed (See Figure 1-2): Info: To access and view the AC terminal block and ground termi- nal, remove the four Phillips screws holding the AC wiring access cover. -
Page 8: Figure 1-3, Back Panel Features
1.0 Introduction The back panel of the CSW2012-X inverter is equipped with the following features (See Figure 1-3): 11. Model Number – the model number of the inverter and other information. 12. Cooling Fan(s) – intake cooling fans that automatically turn on when the inverter’s internal temperature rises above 122°F (50°C). -
Page 9: How This Inverter Works
Without compromising quality or performance, the CSW2012-X provides you with all the advantages of a pure sine wave inverter at a much lower cost than many on the market. -
Page 10: 2.0 Installation
Pre-Installation Before proceeding, read the entire Installation section to determine how best to install your CSW2012-X inverter. The more thorough you plan in the beginning, the better your inverter needs will be met. There is a simplifi ed system diagram shown in Figure 2-1. This diagram should be reviewed to assist you in planning and designing your installation. -
Page 11: Figure 2-1, Basic System Diagram
2.0 Installation AC Main Panel AC Source (Branch Circuit Breaker to (120VAC, 60 Hz Sinewave) Inverter: 30A max) CSW2012-X Inverter AC IN AC OUT* Sub-Panel Disconnect Ground (Vehicle chassis, DC ground bus, Outlet or engine negative bus) AC Loads (L1/N1 = 30A max,... -
Page 12: Locating And Mounting The Inverter
The CSW2012-X inverter should only be installed and mounted in a location that meets the following requirements: Clean and dry – The inverter should not be installed in an area that allows dust, fumes, insects, or rodents to enter or block the inverter’s ventilation... -
Page 13: Figure 2-2, Approved Mounting Positions
Note: CSW2012-X cannot be mounted with DC terminals facing down. Figure 2-2, Approved Mounting Positions 12.5’’ (31.8 cm) 17.1’’ (43.5 cm) Back (DC Side) Front (AC Side) 4.5’’ (11.5 cm) Figure 2-3, CSW2012-X Dimensions © 2015 Sensata Technologies... -
Page 14: Wiring The Inverter - General Requirements
Wiring the Inverter – General Requirements This section describes the requirements and recommendations for wiring the CSW2012-X inverter. Before wiring the inverter, carefully read all instructions. The NEC (National Electric Code, ANSI/NFPA 70) for the United States and the CEC (Canadian Electrical Code) for Canada provide the standards for safely wiring residential and commercial installations. -
Page 15: Dc Wiring
2.0 Installation DC Wiring This section describes the inverter’s required DC wire sizes, the recommended disconnect/overcurrent protection, and how to make the DC connections to the inverter and the battery bank. WARNING: Even though DC voltage can be regarded as “low voltage”, signifi... -
Page 16: Dc Wire Sizing
OEM as a complete system. Table 2-2, DC Wire/Overcurrent Device for Rated Use CSW2012-X Full Load C urrent 190 amps Maximum C ontinuous C urrent¹... -
Page 17: Dc Overcurrent Protection
See Table 2-1 for the torque requirements. Info: The DC terminal and Hex nuts on the CSW2012-X are made of stainless steel, which has a high likelihood of galling or thread seizing while being tightened—causing the bolts to strip or to snap/... -
Page 18: Wiring The Battery Bank
2.4.6 Appliances and Run Time The CSW2012-X inverter can power a wide range of household appliances including small motors, hair dryers, clocks, and other electrical devices. As with any appliance using batteries for power, there is a certain length of time that it can run—this is called “run time.”... -
Page 19: Wiring The Inverter To The Battery Bank
2.0 Installation 2.4.7 Wiring the Inverter to the Battery Bank CAUTION: The inverter is NOT reverse polarity protected—if positive terminal of the battery is connected to the negative terminal of the inverter and vice versa, severe damage to the inverter will occur and this will void the warranty. -
Page 20: Figure 2-4, Dc Cable To Battery Terminals
M8-1.25 Hex nut Lock washer DC cable with ring lug Inverter’s DC + terminal CAUTION: Ensure nothing is placed CSW2012-X between the DC terminal Inverter and the ring lug. Figure 2-5, DC Cable to Inverter’s DC Terminals © 2015 Sensata Technologies... -
Page 21: Ac Wiring
GFCI protection is not required, then wire to the L1/N1 output terminals. When wired to the L1/N1 output terminals, the pass-thru capacity of the CSW2012-X is limited by the internal transfer relay contacts, which is 30A (3000W) maximum for resistive loads (lower for inductive loads such as electric motors, etc.). -
Page 22: Ac Neutral To Safety Ground Bonding
The input neutral and output neutrals must not an any time be connected together or damage to the inverter may occur. The CSW2012-X inverter has automatic neutral-to-ground switching to specifically work in multiple source or mobile (i.e., truck/RV/boat) applications. -
Page 23: Ac Terminal Block Connections
2.5.4 AC Terminal Block Connections The CSW2012-X has a two-pole AC input terminal block, a four-pole AC output terminal block and one AC ground screw to connect the inverter’s AC input and output wiring. These terminal blocks (see Figure 1-2, Items 9 and 10) allow a service/distribution panel (main panel) to be wired to the inverter’s input, and also allows a dedicated panel (sub-panel) between the... - Page 24 2.0 Installation Wiring the Inverter AC Output WARNING: DO NOT connect the inverter’s output to an AC power source. This could cause severe damage to the inverter and is not covered under warranty. The AC Output has three types of AC connections: •...
-
Page 25: Figure 2-6, Ac Wiring (20A By-Pass And Gfci Output))
2.0 Installation CSW2012-X Series Inverter See NOTE below Maximum 20-amp breaker (single pole) required to inverter AC input NOTE: In mobile installations, the neutral is typically not connected to ground in main panel. Main Panel Sub-Panel and Outlet (Utility/Generator (Inverter Loads) -
Page 26: Figure 2-7, Ac Wiring (30A By-Pass)
2.0 Installation CSW2012-X Series Inverter See NOTE below Maximum 30-amp breaker (single pole) required to inverter AC input NOTE: In mobile installations, the neutral is typically not connected to ground in main panel. Main Panel Sub-Panel and Outlets (Utility/Generator (Inverter Loads) -
Page 27: 2.5.6 Removing The Display Panel
2.0 Installation 2.5.6 Removing the Display Panel The display panel on the inverter can be removed and installed in a different location using a longer 6-pin standard telephony cable (also referred to as a RJ12 cable). See Figure 2-8. • Remove the 2 screws at the front of the display panel, and then disconnect the small cable from the inverter. -
Page 28: Testing The Inverter
2.0 Installation Testing the Inverter Before proceeding, you must fi rst test whether the inverter was successfully installed. Use the functional test below to ensure the inverter is functioning properly. 2.6.1 Inverter Functional Test After all electrical connections to the inverter, batteries, AC source, and loads (using a sub-panel) have been completed, follow these steps to test the installation and the inverter’s operation. -
Page 29: 3.0 Operation
(or battery bank). When the CSW2012-X is first connected to battery power, it is off. To turn the inverter on, press and hold the Power button until a beep sound is heard (about 1 second). -
Page 30: Display Panel Operation
3.0 Operation Display Panel Operation This section provides information on the display panel (Figure 1-1, Item 5). Figure 3-1, Display Panel 3.3.1 LED Indicators The LED indicators on the front display panel are used to indicate the inverter’s status. Use Table 3-1 to determine the inverter status. Table 3-1, Display Functions/Statuses Status LED Display LED... -
Page 31: Figure 3-2, Inverter Setting Flow Chart
3.0 Operation 3.3.3 Inverter Settings (enter Setting Mode) To change an inverter setting, enter Setting mode by pressing the Power and Select buttons together for about 5 seconds until a beep is heard. Use Figure 3-2 to set the inverter settings. See Table 3-2 for information on the different settings available for the inverter. -
Page 32: Table 3-2, Inverter Settings
3.0 Operation Table 3-2, Inverter Settings Inverter Settings The inverter is disabled. The AC Output terminals are getting power from the utility (AC input) only. When utility power is not available, the unit will not provide an AC backup function from the inverter and the display will automatically turn off in approximately 10 seconds. -
Page 33: Understanding Loads
Running several loads at once – Sometimes the total surge requirement of all the loads is higher than the CSW2012-X inverter can deliver. You may want to turn them on individually to ensure that the inverter does not have to deliver the starting current for all the loads at once. -
Page 34: Troubleshooting
4.0 Troubleshooting Troubleshooting When the inverter shows an error code, use Table 4-1 to determine what condition triggered the error/warning code and what corrective action is needed. Use Table 4-2 to troubleshoot your inverter based on the symptoms. Table 4-1, Inverter Error Codes Code Condition Corrective Action... -
Page 35: Table 4-2, Troubleshooting
4.0 Troubleshooting Table 4-2, Troubleshooting Problem Possible Cause/ Solution Condition AC output turns Search mode (PS2) Normal condition when in on and off. enabled, and the AC Search mode. The load load is <10W. connected must be below the AC load sense threshold of 10W;... - Page 36 4.0 Troubleshooting Problem Possible Cause/ Solution Condition During AC Unit is set to “Non- Change the PS0 setting to a input power Backup” mode (PS0) different setting if you want outage, there and AC input power is to turn the inverter on. With is no AC output not available.
- Page 37 4.0 Troubleshooting Problem Possible Cause/ Solution Condition Heavy This is a normal Due to a sudden high DC spark when condition. It occurs surge (inrush) current connecting the when the internal that charges the internal battery power. DC input capacitors big capacitors and quickly (fi...
- Page 38 4.0 Troubleshooting Problem Possible Cause/ Solution Condition The GFCI outlet There is a neutral-to- Locate and remove the trips as soon ground bonding in the neutral-to-ground bonding on as the load load side. the AC load side. If the output is connected of the inverter is connected to to either L2/...
- Page 39 4.0 Troubleshooting Problem Possible Cause/ Solution Condition The input Make sure to measure Just after the E01 occurs, battery under- the battery voltage the battery voltage rapidly voltage warning just before the increases since the battery (E05) and/or E01 battery under- is not under a load condition shutdown alarm voltage shutdown in...
-
Page 40: Specifi Cations
5.0 Specifi cations Specifi cations Table 5-1, CSW2012-X Specifi cations Model CSW2012-X Electrical Specifi cations Continuous Power 2000 W Surge Power (Peak) 4000 W AC Output Voltage (12.5V) 120 VAC RMS ± 5% AC Output Current 16.6 AAC AC Output Voltage Range... -
Page 41: Appendix A - Battery Information
Appendix Appendix A - Battery Information Battery Bank Sizing The size of the battery bank determines how long the inverter can power the AC loads without recharging. The larger the battery bank, the longer the run time. Size your battery bank to the system’s AC load requirements and the length of time required to run the load from the batteries. -
Page 42: Parallel Wiring
Appendix Parallel Wiring Wiring the batteries in parallel increases the total run time the batteries can operate the AC loads. A parallel connection combines overall battery capacity by the number of batteries in the string. Even though there are multiple batteries, the voltage remains the same. -
Page 43: Appendix B - Preventive/Periodic Maintenance
Appendix B - Preventive/Periodic Maintenance Recommended Inverter and Battery Care The CSW2012-X inverter is designed to provide you with years of trouble-free service. Even though there are no user-serviceable parts, it is recommended that every 6 months you perform the following maintenance steps to ensure optimum performance and extend the life of your batteries. -
Page 44: Appendix C - Regulatory And Fcc Information
Appendix C - Regulatory and FCC Information Regulatory Compliance The CSW2012-X has been tested and listed to UL 458, 5th Edition (Power Converters/Inverters for use in the US; and is also certified to CSA C22.2 No. 107.1-01 (General Use Power Supplies) for use in Canada. It has been tested and certified to these product safety standards by Intertek Testing Services (known as ETL), which is a Nationally Recognized Testing Laboratory (NRTL). -
Page 45: Appendix D - Limited Warranty
Appendix Appendix D - Limited Warranty Sensata Technologies warrants the CSW2012-X inverter to be free from defects in material and workmanship that result in product failure during normal usage, according to the following terms and conditions: The limited warranty for this product extends for a maximum of 12 months from the product’s original date of purchase. - Page 46 Magnum-Dimensions Products Manufactured by: Sensata Technologies 2211 West Casino Rd. Everett, WA 98204 Phone: 425-353-8833 Fax: 425-353-8390 Web: www.Magnum-Dimensions.com PN: 64-0074 Rev B...
