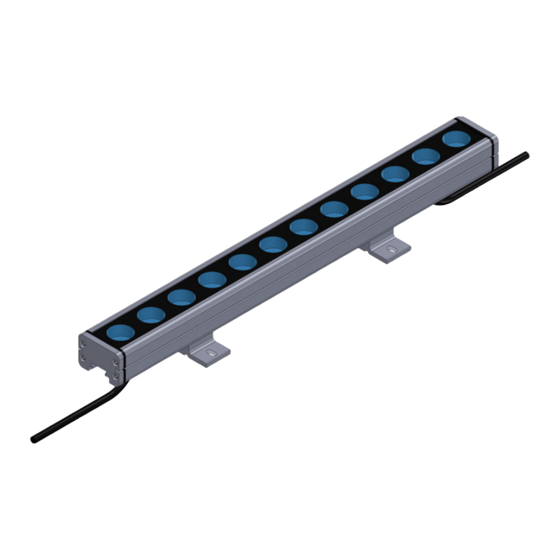

GENLED ACOLYTE ARMOR Series Installation Manual

AC MINI

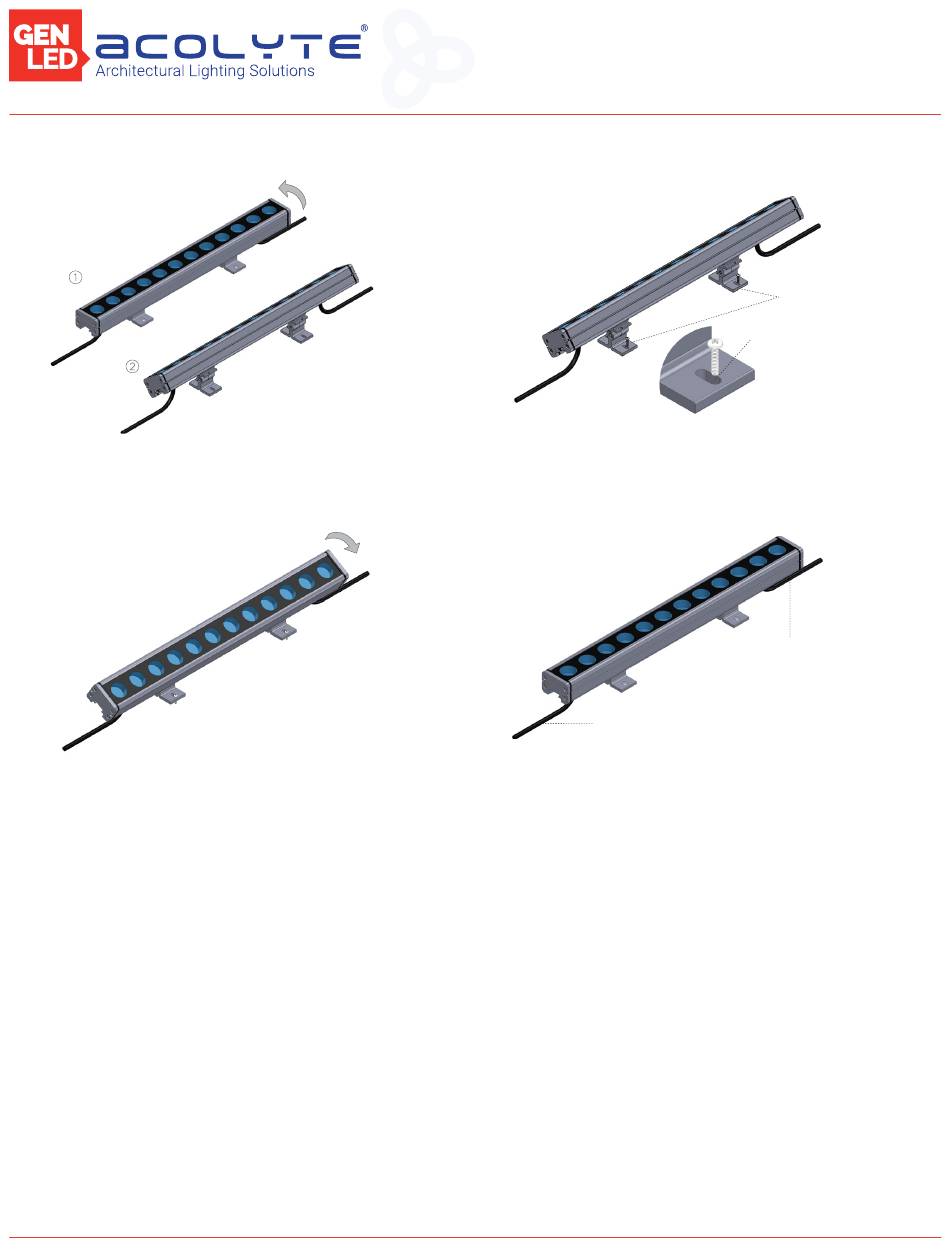

1. Tilt the fixture top to one side and position the fixture at the
desired location.
3. Rotate the fixture in the opposite direction and fasten the
screws on the other side of the tiltable stand.
®
GENLED Acolyte | Architectural Lighting Solutions
2. Secure the fixture in place by fastening the screws through the
screw holes on one side of the tiltable stand.
4. Connect input cable to the power supply. Daisy-chain the
connector on the opposite end to the next fixture if desired.
®
GENLED Acolyte is a quality division of GENLED
A C M I N I I N S T A L L A T I O N G U I D E
Tech Support: (+1) 212 629 6830 *301
Max screw diameter
0.185" (4.7 mm)
6-pin power + data connector
to additional fixture
6-pin 120V AC + data connector to T-Connector
Brands™ | www.GENLEDBrands.com/Acolyte |
A R M O R S E R I E S
Tech@GENLEDBrands.com
Tiltable Stand
Page 1
