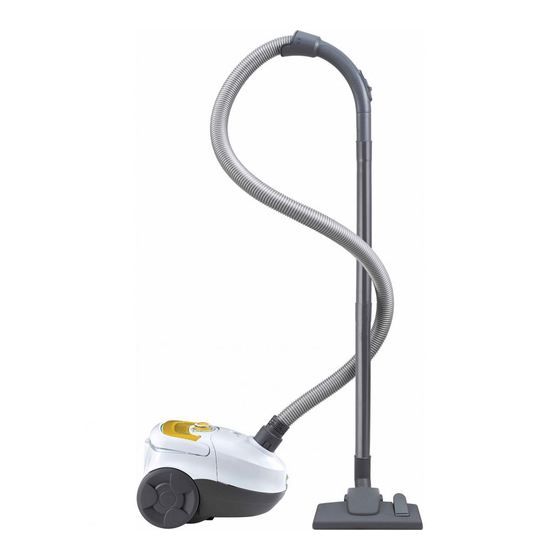

- Page 1 User Manual Book Vacuum Cleaner Quillo Series VC 3213 Gevole Series VC 1505...
- Page 2 Thank you for your trust in choosing MODENA products for your household needs. With your satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped with state-of-the-art technology to assist you in your daily activities. This is your guidebook containing everything you need to know about our product.
- Page 3 CONTENTS PAGE. • Introduction • Part 1 : Name of Parts • Part 2 : Installation • Part 3 : How to Use • Part 4 : Maintenance • Part 5 : Precaution Action • Part 6 : Problem & Solution •...
-
Page 4: Name Of Parts
Part 1: Name of Parts VC 3213 N, Y, U Cable rewind button VC 1505 Handle Handle-held Handle switch Filter Set screw Handle-held Body switch Handle-held power switch Dust barrel switch Dust barrel Charge base Motor brush Adapter... -
Page 5: Installation
10. Contact the dealer or call center for repairs and aftersales service. 11. If the power cord is damaged, contact MODENA call center for replacement. 12. This unit is not meant to be used by children, mentally or physically challenged, or those who lack the experience and knowledge regarding the unit. -
Page 6: Connecting The Vacuum Cleaner
CONNECTING THE VACUUM CLEANER Remove flexible pipe Remove the cord plug from the socket before releasing the flexible pipe from the air inlet. VC 3213 N, Y, U Press the flexible pipe until it clicks into the locking position. Press and pull the flexible pipe to release. VC 1505 Main unit assembling Motor brush assembling... - Page 7 Installing and connecting additional pipes and accessories Install additional pipes on Connect additional Install accessories to the the handle. pipes. additional pipe. Emptying and replacing dust bag After removing the flexible pipe, open the cover by pressing the lock button and pull it upwards. Then, remove the dust bag.
-
Page 8: Part 3: How To Use
Cleaning the rotating brush VC 1505 1. Unscrew the bottom brush screw to unlock it (look at the picture) 2. Remove the brush from its place and clean it through. a. Type of dust bag 1. Cloth To remove the dust from the cloth dust bag, remove the pins on the bottom of the bag to release the dirt inside the bag, clean the bag and pin the bottom part again. - Page 9 Nozzle brush usage. Floor/Carpet Extend / release the brush to clean the hard floor surface. Retract / pull the brush to clean the carpet. Small brush Used to clean the dust on the curtain, book, shelf, lampshade and other objects. Used to clean the gap, corner, radiator and the gap between the sofas.
- Page 10 − Check the voltage specifications on the vacuum cleaner whether it matches with the voltage in your house. If it doesn’t match, contact the MODENA Call Center for further information. − Do not leave the vacuum cleaner while it is still connected to the socket. Always unplug the power cord from the socket if the vacuum cleaner is not used.
- Page 11 − Special attention is required for usage on stairs. − If the air inlet, pipe nozzle or telescopic pipe is obstructed, immediately deactivate the vacuum cleaner and clear the obstruction before restarting it. − Make sure you plug the power cord to the socket with dry hands. −...
-
Page 12: Problem & Solution
Part 6: Problem & Solution In the event of operational issues, check the following problems and solutions below before contacting our Call Center: Problem Cause Solution Replace or clean the dust bag Dust bag and the cylindrical and the cylindrical filter. filter are obstructed. -
Page 13: Specification
Part 7: Specification VACUUM CLEANER VC 3213 N VC 3213 Y VC 3213 U Type Color Green Yellow Blue Nozzle material Fiber Fiber Fiber Main Feature Blower function Cloth filter Cloth paper Filter for motor / cylinder Filter for blower Overload safety / Motor Wheel Suction controller... - Page 14 VACUUM CLEANER VC 1505 Type Dry Handy 2 in 1 Color Rose Gold Nozzle material Fiber Main Feature Blower function Cloth filter Cloth paper Filter for motor / cylinder Filter for blower Overload safety / Motor Wheel Suction controller Accessories Nozzles Flexible hose Pipe...
