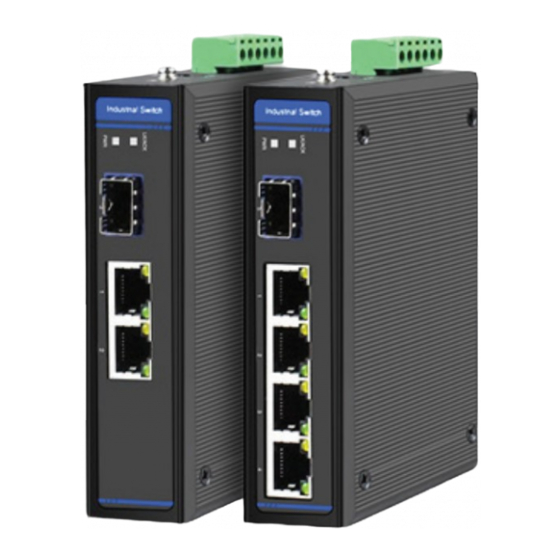

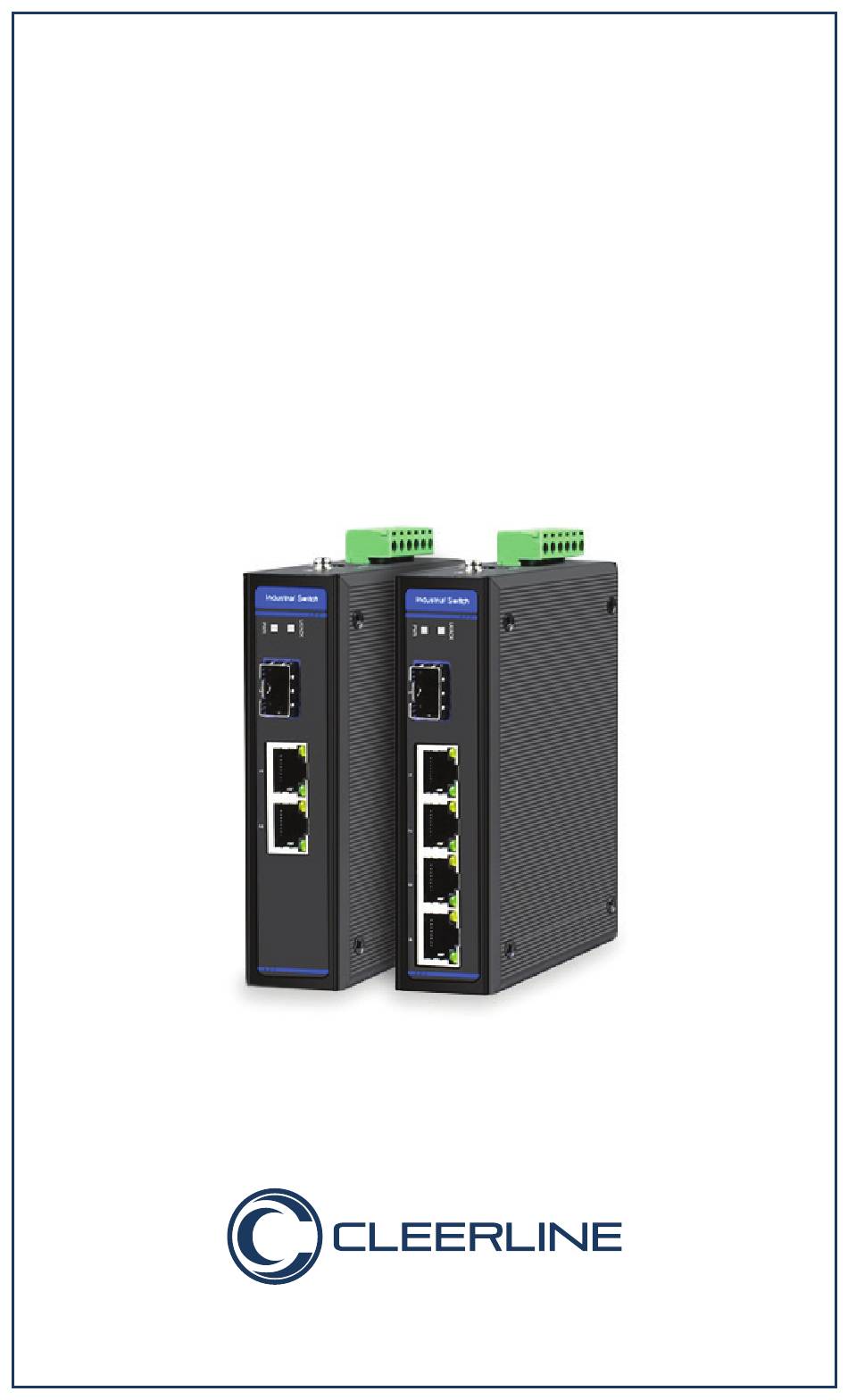

- Page 1 SSF-1x2-Rugged / SSF-1x4-Rugged Industrial Ethernet Switch Manual www.cleerlinefiber.com...
- Page 2 Industrial Ethernet Unmanaged...
-
Page 3: Ordering Information
Industrial Ethernet Unmanaged INDUSTRIAL ETHERNET SWITCHES Ordering Information SSF-1x2-RUGGED Gigabit Ethernet Switch 2x 10/100/1000Base-Tx to 100/1000Base-X SFP slot, PoE 60W budget DIN rail and Wall inst. SSF-1x4-RUGGED Gigabit Ethernet Switch 4x 10/100/1000Base-Tx + 1x 100/1000Base-X SFP slot ports, DIN rail and Wall installation... - Page 4 Industrial Ethernet Unmanaged Technical Specifications by Model MODEL SSF-1X2-RUGGED SSF-1X4-RUGGED TP ports (RJ45) 2 x 10/100/1000 4 x 10/100/1000 SFP slots 1 x 100/1000 1 x 100/1000 LEDs Network Protocols CSMA/CD CSMA/CD Bandwidth Packet buffer size Packet max. size (bytes)
- Page 5 Off – No link; On – UTP link OK; Blinking – data traffic UTP YELLOW present Off – Switch failed; On – Switch operating normally Note: Gigabit models require approx. 10 seconds from “Power On” to start operating Switch Front Plate View (common front view, may vary with model) Models SSF-1x2-RUGGED SSF-1x4-RUGGED...
-
Page 6: Top Panel View
Industrial Ethernet Unmanaged Top Panel View (Common top view, may vary with model) Models SSF-1x2-RUGGED SSF-1x4-RUGGED Top panel has terminal screw block for PWR1 and PWR2 input as well as Alarm Relay output, alternate DC5V power jack and M3 grounding screw. - Page 7 Industrial Ethernet Unmanaged Rear Panel View with DIN rail and Wall Mounting Brackets (common rear view, may vary with model) Models SSF-1x2-RUGGED SSF-1x4-RUGGED DIN Rail Mounting Procedure All Industrial switches from the SSF-RUGGED series have DIN rail bracket mounted from factory to the rear panel of the unit. If Wall mounting is needed, please first remove the DIN rail bracket.
-
Page 8: Wall Mounting Procedure
Industrial Ethernet Unmanaged Wall Mounting Procedure All Industrial switches from SSF-RUGGED series have DIN rail bracket mounted from factory to the rear panel of the unit. If Wall mounting is needed, please first remove the pre-installed DIN rail bracket. Secure the wall mounting brackets to the switch as in the below diagram. You will need 4x M3 screws for the wall mounting brackets (included) and screws for wall securing that should have head diameter larger than 6mm and screw body less than 3.5mm (these screws are not included in the package)
