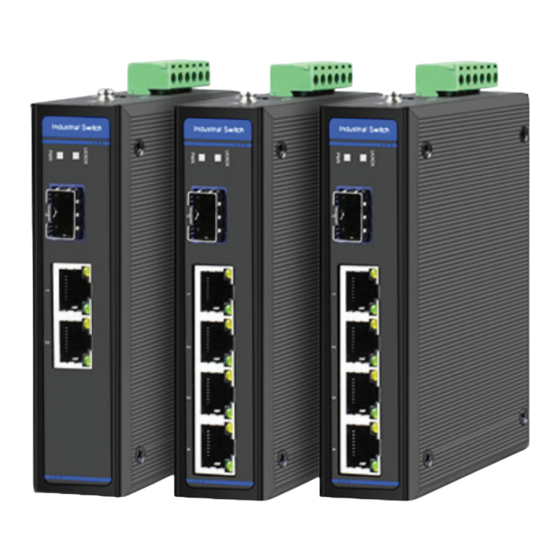

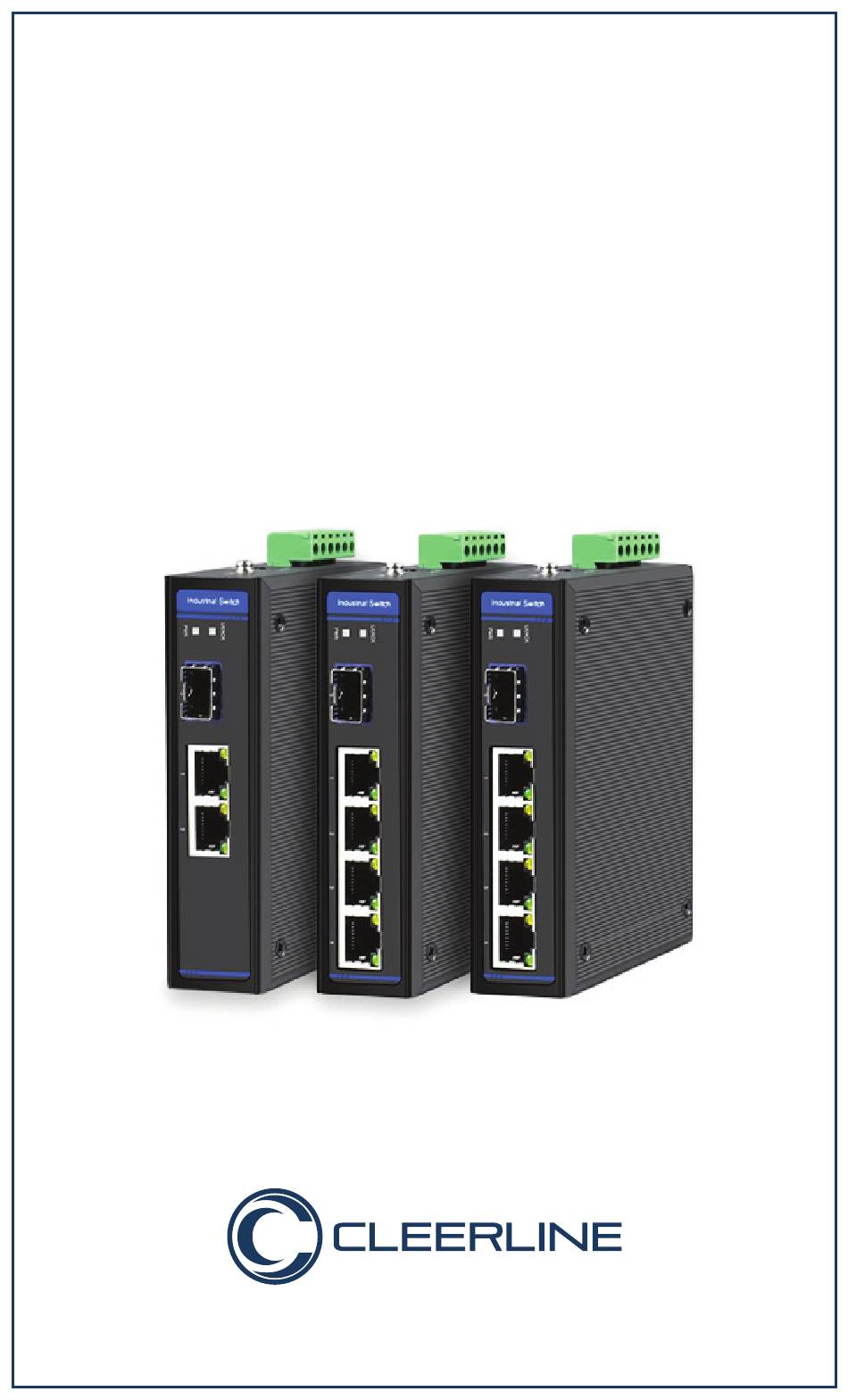

- Page 1 SSF-1x2-RUGGED / SSF-1x4-RUGGED / SSF-1x4POE-RUGGED Industrial Ethernet Switch Manual www.cleerlinefiber.com...
- Page 2 100/1000Base-X SFP slot, PoE+ 60W budget DIN rail and wall installation. SSF-1x4-RUGGED Gigabit Ethernet Switch 4x 10/100/1000Base-Tx + 1x 100/1000Base-X SFP slot ports, DIN rail and wall installation SSF-1x4POE-RUGGED Gigabit Ethernet Switch 4x 10/100/1000Base-Tx to 100/1000Base-X SFP slot, PoE+ 120W budget DIN rail and wall installation. Overview The Industrial Ethernet models listed above are high performance and reliable Ethernet switches.
- Page 3 Industrial Ethernet Unmanaged Technical Specifications by Model MODEL SSF-1X2-RUGGED SSF-1X4-RUGGED SSF-1X4RUGGED-POE TP ports 2 x 10/100/1000 4 x 10/100/1000 4 x 10/100/1000 (RJ45) SFP slots 1 x 100/1000 1 x 100/1000 1 x 100/1000 LEDs Network CSMA/CD CSMA/CD CSMA/CD Protocols Bandwidth Packet buffer size...
- Page 4 Industrial Ethernet Unmanaged Industrial Compliance by Model MODEL SSF-1X2-RUGGED SSF-1X4-RUGGED SSF-1X4RUGGED-POE FCC Part 15 Subpart FCC Part 15 FCC Part 15 Subpart B Class A, EN 55022 Subpart B Class A, B Class A, EN 55022 Class A EN 55022 Class A Class A EN 61000-4-2 (ESD) Level 3 Criteria B, EN 61000-4-3 (RS) Level 3 Criteria A, EN 61000-4-4 (EFT) Level 3 Criteria A, EN 61000-4-5...
- Page 5 Blinking – data traffic present Off – Switch failed; On – Switch operating normally Note: Gigabit models require approx. 10 seconds from “Power On” to start operating Switch Front Plate View (common front view, may vary with model) Models SSF-1x2-RUGGED SSF-1x4-RUGGED SSF-1x4POE-RUGGED...
- Page 6 (Common top view, may vary with model) Models SSF-1x2-RUGGED SSF-1x4-RUGGED SSF-1x4POE-RUGGED Top panel has terminal screw block for PWR1 and PWR2 input as well as Alarm Relay output, alternate DC5V power jack and M3 grounding screw. Alarm Relay Wiring The alarm relay is closed during normal operation. If a fault is...
- Page 7 (common rear view, may vary with model) Models SSF-1x2-RUGGED SSF-1x4-RUGGED SSF-1x4POE-RUGGED DIN Rail Mounting Procedure All Industrial switches from the SSF-RUGGED series have DIN rail bracket mounted from factory to the rear panel of the unit. If wall mounting is needed, first remove the DIN rail bracket.
- Page 8 Industrial Ethernet Unmanaged Wall Mounting Procedure All Industrial switches from the SSF-RUGGED series have DIN rail bracket mounted from factory to the rear panel of the unit. If wall mounting is needed, first remove the pre-installed DIN rail bracket. Secure the wall mounting brackets to the switch as in the below diagram. You will need 4x M3 screws for the wall mounting brackets (included) and screws for wall securing that should have head diameter larger than 6mm and screw body less than 3.5mm (these screws are not included in the package).
