- Page 1 User manual Stand up, stand and transfer aid Hoists edition 23/21...
-
Page 3: Foreword
We would like to thank you for your trust extended to us and for purchasing the Vita-Lift 210 stand aid. The stand up and transfer aid Vita-Lift 210 distinguishes itself by its quality, security, easy operation and modern design. For optimal use of this aid, we ask you and possible other users to carefully read this operating manual. -
Page 4: Table Of Contents
Table of contents Table of contents Topic Page Foreword ……………………………………… Table of contents ……………………………… Safety instructions …………………………… Warranty and product liability ……………… CE sign and position ………………………… Indications and prophylaxis ………………… 10 Purpose of use ………………………………… 10 Product overview ……………………………… 11 ………………………………... -
Page 5: Safety Instructions
Safety instructions Safety instructions The stand up and transfer aid Vita-Lift 210 training courses. is CE-marked and fulfils the requirements In the event of specific or difficult of the lastest directives. It was developed in applications, the user manual represents a line with most recent findings. - Page 6 • The operating manual is intended for retailers and users of the stand up and • The Vita-Lift 210 may only be used by transfer aid Vita-Lift 210, (or their carers). persons of a suitable stature and physical aptitude.
- Page 7 • Clean the stand up and transfer aid carer or user. Vita-Lift 210 in accordance with the instructions given in the chapter • Do not use the Vita-Lift 210 before „cleaning”. checking the wheels of the aid. • Please ensure before use the product •...
- Page 8 Safety instructions We constantly develop new aids and improve existing products. We are happy to receive your suggestions of every description. Page 8/32 (23/21)
-
Page 9: Warranty And Product Liability
ATO FORM reserves the right to inspect the The warranty can only be sustained if the product being claimed for and the relevant ATO FORM product is in use in the same documentation before agreeing to the country where it was purchased and if... -
Page 10: Indications And Prophylaxis
The Vita-Lift 210 may be used to assist indi- willingness of the patient to use the aid. viduals from sitting to standing, transporting The aid is delivered via an authorised tech- ans walking. -
Page 11: Product Overview

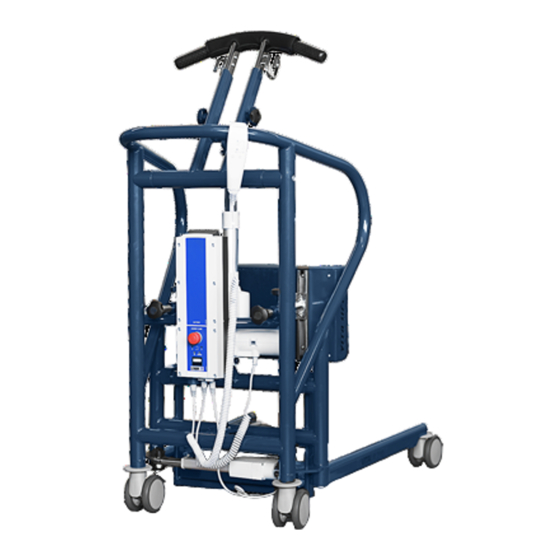

Product overview Product overview 8.1 Basic model Hooks to secure the belt loops Lifting arm Actuators with emergency lowering Battery box Braked wheels hand control Knee pad unit Frame Footplate 10 Legs (width adjustable) with step protection 11 Control unit incl. Emergency stop button 12 Connections for actuators, hand control... -
Page 12: Accessories /Options
Product overview 8.2 Accessories /Options 14 Standard belt 15 Standard seat belt 16 Standard belt incl. abdominal belt 17 Standard belt incl. abdominal belt with suede insice cover 18 Coat role For a complete overview of our extensive range of accessories for the Vita-Lift ®... -
Page 13: Initial Operation
Initial operation Initial operation The reseller is to unpack the unit, ensure that the components and accessories listed in the scope of delivery are all present and undamaged, and give the buyer the initial instructions on use of the aid. Above all the reseller should read through the complete present user manual carefully, in order to then explain it to the customer in detail. -
Page 14: Assembly And Adjustment
LED displays (ON/Charge) flash on. As soon as full capacity is reached, the orange LED display „Charge“ goes out. The operation of the Vita-Lift 210 is not available while loading! Therefore we recommend to charge the battery after using evry day. - Page 15 Assembly and adjustment Operation of the electrical parts Make sure that the emergency stop button (red button) on the control box is not pressed. If the button is pressed in, then hold and rotate the red button clockwise an the button will pop out and the unit will function.
- Page 16 In dangerous situations push the red on the base unit emergency-stop-button on the control unit immediately. Image 5 Image 6 After using the Vita-Lift 210 please always push the emergency-stop-but- ton, otherwise the battery is going to unload. Page 16/32 (23/21)
- Page 17 Assembly and adjustment Operation the emergency lowering In the case of a manual operation fault, the electrical functions can also be operated via the two micro push-buttons of the emergency control on the control unit. The electrical emergency lowering (Image 7 –...
- Page 18 During use: If the battery is discharged while using the Vita-Lift 210 the client can be moved to the lower position by making use of the emer- gency lowering (on the control unit). The battery must be loaded immediately.
-
Page 19: Accessories /Options
Image 12 10.2 Accessories /Options For a complete overview of our extensive range of accessories for the Vita-Lift 210 see item 11.2 Types and accessories on page 21. Page 19/32 (23/21) -
Page 20: Types Of Models
Types and accessories 11 Types and accessories 11.1 Basic model Item No. Description VI-1210 Stand up and transfer aid Vita-Lift 210 Page 20/32 (23/21) -
Page 21: Accessories / Options
Calf belt fitting *always add to VI-3095 Calf belt fitting order The most up-to-date overview of our extensive range of accessories for Vita-Lift 210 and their description as well as much more useful information can be found on our homepage www. ato-form.com. -
Page 22: Technical Details
Technical details 12 Technical details Vita-Lift 210 Overall length 1056 Overall width outside 610 – 1020 Overall width inside 528 – 938 Overall height 1002 Lifting height (extended) 890-1540 Chassis height Turnign circle ø 1056 Electric drive Volt Supply Volt... - Page 23 Technical details Construction: Control Box: • The stand-up aid is consists of: Service indicator, informing that it is time for a service visit a powder-coated tubular steel frame, • Internal charger chrome-plated adjustable metal Diode display (LED indicators) components, foam padded supporting elements with comfortable and easy-to- clean leatherette upholstery, 4 polyamide Operating conditions...
-
Page 24: Cleaning And Disinfection
Cleaning and disinfection 13 Cleaning and disinfection Leftovers, dirt and dust are always to be Disinfection: removed. Moving parts work easier, if you For disinfecting, use household disinfectants apply one drop of oil after cleaning. and consider the following indications: Cleaning the metal parts: The assistant must wear suitable protective The painted and chromed parts of the stand... - Page 25 Page 25/32 (23/21)
-
Page 26: Maintenance And Overhaul
No signs of damage or wear Please contact your specialist dealer to carry out corrective maintenance works for your Frame Vita-Lift 210. • Metal parts; no signs of damage or wear, The device should be checked by the especially for adustable parts manufacturer at the latest after 3 years. - Page 27 Maintenance and overhaul Date Service performed Name Sign Page 27/32 (23/21)
-
Page 28: Operating Life And Re-Use
Operating life and Re-use 15 Operating life and Re-use The Vita-Lift 210 is made from high quality The product Vita-Lift 210 was designed so materials and is subject to a continuous it could be reused after the application of quality control in our house. Because of various measures. -
Page 29: Faults, Repairs, Spare Parts
Faults, Repairs, Spare parts 16 Faults, Repairs, Spare parts If your toilet seat lift Vita-Lift 210 cannot be Only original accessories and original spare operated? parts may be used. Non-compliance with these instructions and repairs carried out or Please ensure….. -
Page 30: Storage
17 Storage Keep this operating manual in a safe place, The current version of these where you or care and maintenance staff instructions for use can be have access to it. found on our homepage in the download area. You can find more informati- on about the product on our homepage at www.ato-form. - Page 31 Disposal of battery operated devices The battery pack must not be disposed of together with normal household waste at the end of its service life. Please observe the legal requirements in your area. Your municipal government and locally based waste disposal companies will be happy to provide you with information in this regard.
- Page 32 Hoists ■ Customized solutions ■ Thank you for your interest in our products. For questions please contact ATO FORM GmbH or your specialist dealer. Ihr ATO FORM Team ATO FORM GmbH, Zur Lauterhecke 34, 63877 Sailauf, Germany Tel. +49 6093 944-0, Fax +49 6093 944-444 E-Mail: info@ato-form.com...
