- Page 1 User guide Standing up and transfer aid HMV 22.29.01.1006 Lifter edition 01/11...
- Page 2 Page 2...
- Page 3 Dear Customer! We want to thank you for your confidence in purchasing our product. The VITA-LIFT ist distinguished by its quali- ty, safety and ease of use. To use this aid optimally, we ask you and any other users to read the instructions carefully.
-
Page 4: Table Of Contents
Contents Contents Theme Page General warnings and safety notes ……………………………… 5 Warranty and product liability …………… 5 Purpose …………………………………… 6 Product overview ………………………… 7 Delivery and installation ………………… 8 Operation of the electric actuators ……… 9 Operation of the mechanical parts ……… 9 Operation –... -
Page 5: General Warnings And Safety Notes
General warnings and safety notes Warranty and product liability General warnings and safety notes The VITA-LIFT is owned with CE-Sign and incorporates the latest findings. The Produc- tion is subject to continuous quality control. The VITA-LIFT can be loaded to max. -
Page 6: Purpose
You furthermore have the possibility to use extensive accessories from the ATO FORM program. We wish you much success while using your VITA LIFT. -
Page 7: Product Overview

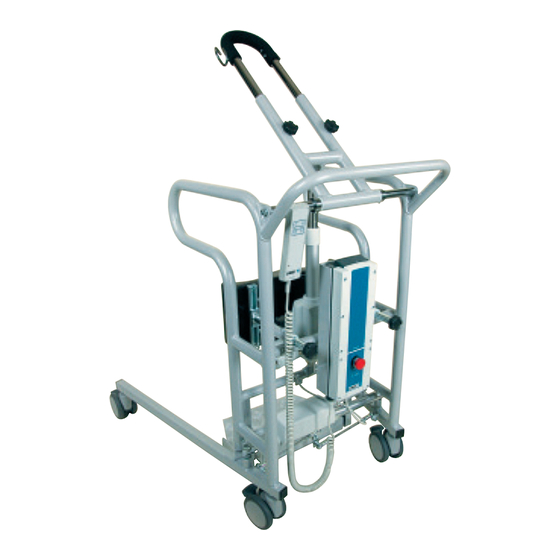

Procuct overview Parts 1 Hooks to secure the belt loops 7 Knee pad unit 2 Lifting arm 8 Frame 3 Actuators 9 Footplate 4 Battery box 10 Legs (width adjustable) 5 Braked wheels 11 Control unit incl. emergency stop button 6 hand switch ➋... -
Page 8: Delivery And Installation
„Charge“ goes out. During use: If the battery is discharged while using the VITA-LIFT the client can be moved to the lower position by making use of the emer- gency lowering (on the control unit). The battery must be loaded immediately. -
Page 9: Operation Of The Electric Actuators
operation electric actuators operation mechanical parts Operation of the electric actuators Lift Before you use the standing up aid, please Sink insure, that the emergency-stop-button (product overview, page 7, pos. 11) is not pushed. if applicable solve the button by turning the knob. -
Page 10: Operation - General Procedures
➊ Push the VITA-LIFT approach the patient and lock the brakes of the wheels. Hang the loops of the sling in the appropriate hooks (pos. 1). Please make sure to straddle the ➌... -
Page 11: Types
Types / Accessories Types VI-3000 stand up aid VITA-LIFT, color silver Accessories for the stand up aid VITA-LIFT are currently following accessories available: VG-0101 Sling, Size 1 VG-0102 Sling, Size 2 VG-0201 Sling with removable seat, Size 1 VG-0202 Sling with removable seat, Size 2... -
Page 12: Maintenance And Repair
Maintenance and repair Cleaning and Care Maintenance and repair Before each use of the VITA LIFT please If repairs are needed on your VITA LIFT, check the brakes for proper function. please contact your dealer. The braked wheels must stop rotating. If they do, the brakes must be set by your dealer. -
Page 13: Technical Details
Technical details Technical details Stand up and transfer aid VITA-LIFT Total length 900 mm Total width outside 500 bis 900 mm Total width inside 440 bis 840 mm Overall height 960 mm Jib heigt 890 bis 1540 mm Electric engine... -
Page 14: Spare Parts
Spare parts Spare parts The Vita-Lift ist guaranteed and liable for two years by ATO FORM. Only original equipment and accessoires should be used. When neglect and/or repairs through non authorized persons occur, any guarantee of the Vita-Lift and its components are rende- red invalid. - Page 15 Page 15...
- Page 16 For questions please contact us or our dealer and sales representative. Your ATO FORM Team Your sales representative ATO FORM GmbH, Zur Lauterhecke 34, D-63877 Sailauf phone +49 60 93/9 44-0, Fax +49 60 93/9 44-4 44 www.ato-form.com E-Mail: info@ato-form.com...
