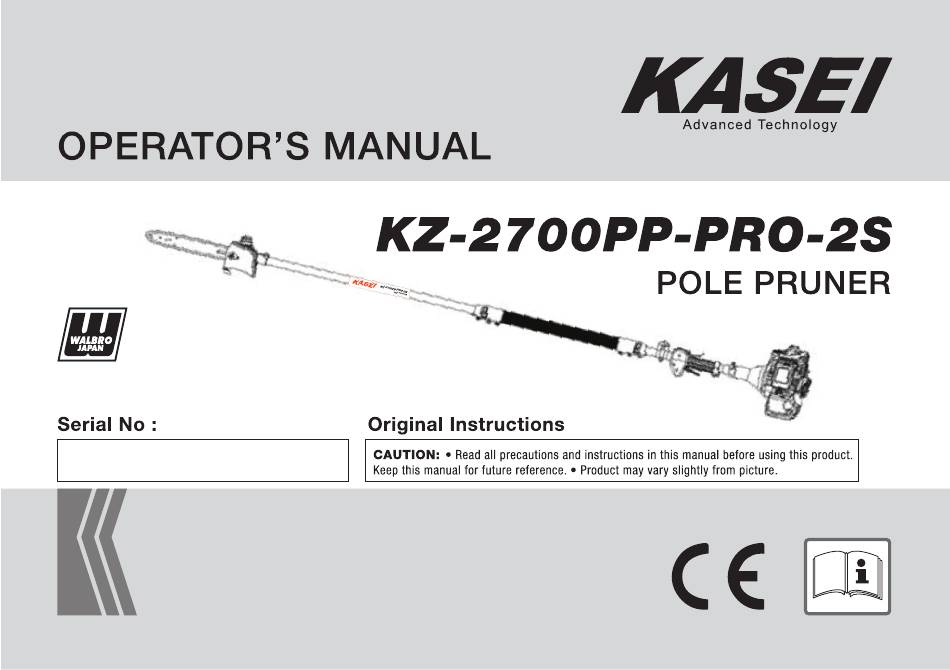

Kasei KZ-2700PP-PRO-2S Operator's Manual
  1. Manuals
  2. Brands
  3. Kasei Manuals
  4. Lawn and Garden Equipment
  5. KZ-2700PP-PRO-2S
  6. Operator's manual

Kasei KZ-2700PP-PRO-2S Operator's Manual

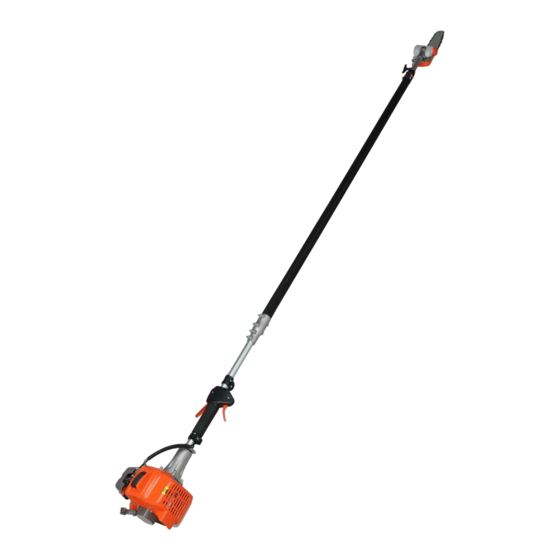

Pole pruner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KZ-2700PP-PRO-2S and is the answer not in the manual?

Questions and answers

Related Manuals for Kasei KZ-2700PP-PRO-2S

Summary of Contents for Kasei KZ-2700PP-PRO-2S

  • Page 2: Table Of Contents

    CONTENTS Introduction...….....…..…............…....1 Technical Data..…....…..…................2 Symbols Warning......................3 Safety Rules & Precautions....................5 Using The Unit........................13 Mounting The Bar And Chain..................15 Adjusting the Throttle Cable....................17 Fuel& Oil Mixture......................17 Chain Lubricant.......................19 Preparing For Operations....................21 Operating Instructions.....................24 Taking Care of the Guide....................25 Engine Management .....................26 Transportation guard the Machine..................28 Checking and Replacing the Chain Sprocket..............28 Maintaining and Sharpening the Saw Chain..............29...

  • Page 3: Introduction

    INTRODUCION Thank you for your purchasing the pole saw of our Company. The present manual explains how to handle the pole saw well. Before using it, please read this operator's manual carefully, operate the machine correctly and engage in your task with safely.By the way, due to changes of specifications, all details of your machine may not agree with this manual.

  • Page 4: Technical Data

    K Z - 2 7 0 0 P P - P R O - 2 S...

  • Page 5: Symbols Warning

    SYMBOLS WARNING Important: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and more safely. SYMBOLS NAME EXPLANATION Indicates danger, warning or caution.
  • Page 6 No Smoking Do not smoke when mixing fuel or filling fuel tank. Use 2-stroke oil for air cooled engines. Beware of chain saw kickback Movement of chain saw upward from log and avoid contact with bar tip WARNING DANGER The engine exhaust from this product contains chemicals to cause cancer,birth defects, of other reproductive harm.

  • Page 7: Safety Rules & Precautions

    SAFETY RULES & PRECAUTIONS Proper and safety precautions must be observed. Like all power equipment this unit must be handled carefully. DO NOT EXPOSE YOURSELF OR OTHERS TO DANGER Follow these general rules. Do not permit others to use this machine unless they are thoroughly responsible and have read, and understand the machine manual and are trained in its operation.
  • Page 8 Never start or run the engage inside a closed room or building. Fumes from the exhaust contain dangerous carbon monoxide. Never attempt to make engine adjustments while the unit is running and strapped to the operator. Always make Do not use the unit if it is damaged or poorly adjusted. Never remove the machine's guard. Serious injury to the operator or bystanders could result as well as damage to the machine.
  • Page 9 Clean the machine completely, especially, the fuel tank, its surroundings, and the air cleaner. When refueling, be sure to stop the engine and confirm that it is cooled down. Never refuel when the engine is running or hot. When gasoline spills, be sure to wipe it up completely and properly dispose of those materials before starting the engine.
  • Page 10 After the engine has stopped, the muffler is still hot. Never place the machine in any places where there are flammable materials (dry grass, etc.), combustible gasses or combustible liquids. Pay special attention to operation in the rain or just after the rain as the ground may be slippery. If you slip or fall to the ground or into a hole, release the throttle lever immediately.
  • Page 11 Unit vibrations can cause an improperly tightened fuel filler cap to loosen or come off and spill quantities of fuel. In order to reduce the risk of fuel spillage and fire, tighten the fuel filler cap by hand as securely as possible. To reduce the risk of fire and burn injuries, start the engine at least 10 feet (3 m) from the fueling spot, outdoors only.Start and operate your pole pruner without assistance.For specific starting instructions, see theappropriate section of your manual.Proper starting methods reduce the risk of injury.Place the pole...
  • Page 12 Danger! Your power tool is not insulated against electric shock. To reduce the risk of electrocution, never operate this power tool in the vicinity of any wires or cables (power, etc.) which may be carrying electric current. The power tools are equipped with a catalytic converter, which is designed to reduce the exhaust emissions of the engine by a chemical process in the muffler.
  • Page 13 To Avoid Kickback :The best protection from kickback is to avoid kickback situations:1. Be aware of the location of the guidebar nose at all times.2. Never let the nose of the guide bar contact any object. Do not cut limbs with the nose of the guide bar. Be especially careful near wire fences and when cutting small, tough limbs, which may easily catch the chain.3.
  • Page 14 Keep the chain, bar and sprocket clean;replace worn sprockets or chains. Keep the chain sharp.You can spot a dull chain when easy-to-cut wood becomes hard to cut or burn marks appear on the wood. Keep chain at proper tension.Tighten all nuts, bolts and screws except the carburetor adjustment screws after each use.For maintenance items please also refer to the maintenance chart in this manual.Do not clean your machine with a pressure washer.

  • Page 15: Using The Unit

    USING THE UNIT Preparations: Wear suitable protective clothing,observe safety precautions. Adjust telescoping shaft to the required length . Starting the engine. Put on the shoulder strap. Cutting Sequence: To allow branches a free fall, always cut the lower branches first. Prune heavy branches (large diameter) in several controllable pieces.
  • Page 16 Cross-cut: To avoid pinching the bar in the cut,position the cutting attachment with the hook against the branch and then perform the cross-cut from the top downwards. Relieving cut: To avoid tearing the bark on thick branches, always start by performing a relieving cut (1) on the underside of the branch.

  • Page 17: Mounting The Bar And Chain

    Mounting the Bar and Chain Removing the chain sprocket cover: Unscrew the nut and remove the cover. Turn the screw (1)counterclockwise until the tensioner slide (2) butts against the left end of the housing slot, then back it off 5 full turns. Guide-bar and chain adjustments can only be made with the engine stopped.
  • Page 18 Tensioning the Chain: Retensioning during cutting work: Stopping the engine Loosen the nut. Hold the bar nose up. Use a screwdriver to turn the tensioning screw (1) clockwise until the chain fits snugly against the underside of the bar. While still holding the bar nose up,tighten down the nut firmly. Go to "Checking Chain Tension".A new chain has to be retensioned more often than one that has been in use for some time.

  • Page 19: Adjusting The Throttle Cable

    Adjusting the Throttle Cable A properly adjusted throttle cable is the precondition for correct operation in thefull throttle, starting throttle and idle positions. Adjust the throttle cable only when the unit is completely and properly assembled. Press down the throttle trigger lockout (1) and squeeze the throttle trigger (2) (full throttle) –...
  • Page 20 MIXTURE RATIO IS 30:1 GASLINE-30 PART OIL-1 PART Fuel mixture at the rate other than 30:1 may cause damage to the engine,Ensure mixture ratio is correct. GASOLINE FUEL Use branded 90 octane or higher nolead gasoline The engine uses two-stroke fuel, a mixture of known to be of good quality.

  • Page 21: Chain Lubricant

    Chain Lubricant For automatic and reliable lubrication of the chain and guide bar – use only an environmentally compatible quality chain and bar lubricant. Biological chain oil must be resistant to aging since it will otherwise quickly turn to resin. This results in hard deposits that are difficult to remove, especially in the area of the chain drive and chain.
  • Page 22 Opening the filler cap Filling up with chain oil The bayonet-type oil tank filler cap with hinged grip can be Filling up with chain oil ● opened and closed without tools. Take care not to spill chain oil while To open the tank, swing the grip to the vertical position. refilling and do not overfill the tank.

  • Page 23: Preparing For Operations

    PREPARING FOR OPERATIONS Adjusting the Telescoping Shaft Always shut off the engine and fit the chain guard. Loosen the screw. ● ● Adjust shaft to the required length. Tighten down the screw firmly. ● Fitting the Harness The type and style of the harness depend on the market. Put on ●...
  • Page 24 Starting method 1: Remove the blade scabbard. Check that the chain is not touching the ground ● or any other obstacles. Place the unit on the ground: It must rest securely ● on the engine support and the hook. If necessary, rest the hook on a raised support (e.g.
  • Page 25 As soon as the engine runs: Make sure the carburetor is correctly adjusted. The saw chain must not rotate when the engine is idling. Your machine is now ready for operation. Shut off the engine: Push the slide control in the direction of the arrow on the stop symbol to STOP. At very low outside temperatures: As soon as the engine runs: Blip the throttle trigger to disengage the starting throttle position.

  • Page 26: Operating Instructions

    Operating Instructions During break-in period: A factory-new machine should not be run at high revs (full throttle off load) for the first three tank fillings. This avoids unnecessary high loads during the break-in period. As all moving parts have to bed in during the break-in period, the frictional resistances in the engine are greater during this period.The engine develops its maximum power after about 5 to 15 tank fillings.

  • Page 27: Taking Care Of The Guide

    After Finishing Work: Slacken off the chain if you have retensioned it at operating temperature during cutting work. Storing your saw for ● ● a short period Wait for the engine to cool down. Drain the fuel tank. Store the machine in a dry location. Check the tightness of all accessible screws and nuts (not adjusting screws) at regular intervals and retighten if necessary.

  • Page 28: Engine Management

    Engine Management Cleaning the Air Filter: If there is a noticeable loss of engine power Turn the choke knob to Take out the ● ● screw (1) and remove the filter cover (2). Clean away loose dirt from around the filter. Grip ●...
  • Page 29 Checking the Spark Plug: Clean dirty spark plug. Check electrode gap (A) and readjust if necessary – ● ● see"Specifications". Use only resistor type spark plugs of the approved range. ● Rectify problems which have caused fouling of spark plug:– Too much oil in fuel mix.–...

  • Page 30: Transportation Guard The Machine

    Transportation guard the Machine For periods of 3 months or longer Drain and clean the fuel tank in a well ventilated area. Dispose of fuel properly in accordance with local ● ● environmental requirements. Run the engine until the carburetor is dry – this helps prevent the carburetor ●...

  • Page 31: Maintaining And Sharpening The Saw Chain

    Maintaining and Sharpening the Saw Chain Cutting effortlessly with a correctly sharpened chain A properly sharpened chain slices through wood effortlessly and requires very little feed pressure.Do not work with a dull or damaged chain as it will increase the physical effort required, produce unsatisfactory results and a higher rate of wear.
  • Page 32 Cutter shapes:Micro = Semi-chisel The specified angles A and B are obtained automatically if the recommended files or sharpening tools and correct settings are used.The angles must be the same on all cutters. If the angles are uneven: Chain will run roughly, not in a straight line,wear quickly and finally break.As these requirements can be met only after sufficient and constant practice: Use a file holder :A file holder must be used for manual resharpening...
  • Page 33 If the cutters are not the same length,they will have different heights. This makes the chain run roughly and can cause it to break. Find the shortest cutter and then file all other ● cutters back to the same length. It is best to have this work done in the workshop on an electric grinder.

  • Page 34: Maintenance And Care

    Maintenance and Care The following intervals apply to normal operating conditions only. If your daily workingtime is longer or operating conditions are difficult (very dusty work area, etc.),shorten the specified intervals accordingly. Complete machine Visual inspection (condition, leaks) Clean Control handle Check operation Air filter Clean...
  • Page 35 The following intervals apply to normal operating conditions only. If your daily workingtime is longer or operating conditions are difficult (very dusty work area, etc.),shorten the specified intervals accordingly. A l l a c c e s s i b l e Retighten screws and nuts ( n o t a d j u s t i n g...
  • Page 36 We recommends our servicing dealer. NOTICE! Daily maintenance, including the checking for loose fasteners, fuel leaks and damaged parts (e.g. cracks in the saw blade). WARNING! Before use the machine,you must have regarding regular maintenance, pre-operating procedures and daily maintenance routines,otherwise improper maintenance and care can cause risk of injury and damage.

  • Page 37: Main Parts

    Main Parts 1 Handle Hose 2 Fixed Drive Tube 3 Carrying Ring 4 Slide Control 5 Throttle Trigger Lockout 6 Throttle Trigger 7 Spark Plug Boot 8 Choke Knob 9 Air Filter Cover 10 Fuel Tank 11 Machine Support 12 Clamp 13 Oilomatic Saw Chain 14 Guide Bar 15 Oil Tank...
  • Page 38 12 Clamp 1 Handle Hose 23 Chain Tensioner Clamp the telescopic drive tube. For holding and controlling the unit Permits precise adjustment of 13 Oilomatic Saw Chain with the hand during operation. chain tension. A loop consisting of cutters, tie 2 Fixed Drive Tube 24 Fuel Filler Cap straps and drive links.
  • Page 39 INSPECTION & MAINTENANCE For safety use, make sure the machine is cleaned every three-months. Before working, make sure to inspect the filter and the nozzle,and ensure there is no impurity. After working, make sure there is no water in the pump and the hose. If the machine needs to be repaired in the guarantee period, please return the machine to the shop.
  • Page 40 Warranty Card CUSTOMER COPY Product Name Date of Delivery Purchaser’s Name & Address KZ-2700PP-PRO-2S POLE PRUNER Dealer Sign Product Serial No. Dealer’s Office Seal Customer Sign. Invoice / DN No. I/We accept the terms and conditions of Warranty as in the Warranty Card.
  • Page 41 1. LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement.
  • Page 42 ISO 9001-2015 1st Free Service Coupon CERTIFIED COMPANY FREE SERVICE COUPON (30 Days / 30 hrs (Which ever is earlier) Purchase bill no. Date KZ-2700PP-PRO-2S POLE PRUNER Model Dealer’s Office Seal & Signature PDI Date Serial Number Service No. Conditions: Operations listed have been performed to my entire satisfaction without any labour charges. Only consumables were charged.
  • Page 43 Small Maintenance. Big Savings. Small Maintenance. Big Savings. Small Maintenance. Big Savings.
  • Page 45 Imported & Marketed by Imported & Marketed by RATNAGIRI IMPEX PVT LTD Multi-products, Annapurna House, #1/1G, multi-applications 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Customer Care : 1800-425-3036 email: info@ratnagiriimpex.com www.ratnagiriimpex.com AN ISO 9001:2015 CERTIFIED COMPANY...
