Method Statement for Fitting a 2 point panic device (XDB5760SV)
and external access device (XSA5003SV)
Method Statement for Fitting 2 point panic device XDB5760SV and external access

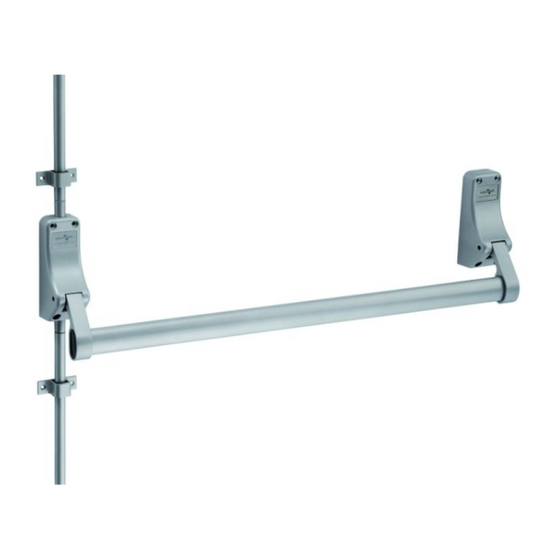

This document is to outline the method for how to install a 2 point panic device (XDB5760SV) onto a
blank steel door and also work in junction with an external access device (XSA5003SV). This work
should be carried out by a trained technician and checked by another technician once completed.
This document should be used in accordance with the risk assessment for the same task.

Method

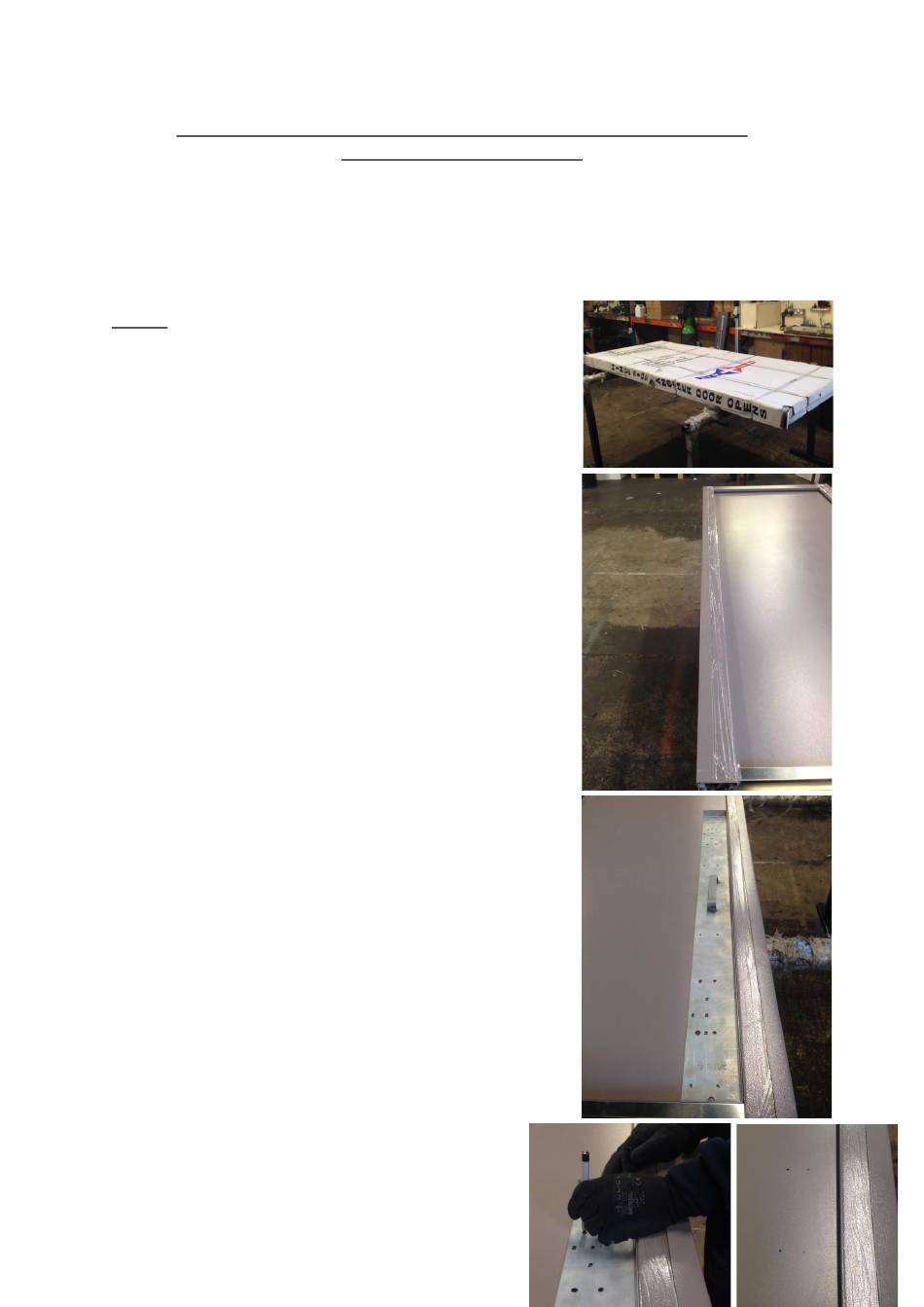

1. Using the folk lift truck collect the correct
door from the ware house and place the door
onto the trestles in your work area.
2. Remove all of the outer packaging from the
product, make sure to put the cardboard and
bubble wrap to one side as you will need this
later to re-package the door. Put the
strapping into the bin.
3. Remove all of the clear film from the door
leaf on the inside and outside and make sure
that the door is in perfect condition. If there
are any imperfections or marks on the door
leaf you must swap it or bring it to the
attention of the manager for
assessment/approval.
4. Move the door set to the edge of your
trestles with the outer face of the door facing
down. You must check that the door leaf is
sitting flush in the frame and tight up to the
seal.
5. Place the 2 point template onto the door leaf
so it sits inside the frame. Move the template
towards the hinge side of the door and make
sure it is sitting flush with the threshold and
hinge side of door frame.
6. Using a felt tip pen mark out the 4 holes in
the middle of the template. These 4 holes
should create a rectangle shape and this is
where the hinge side mechanism box is
fitted.
7. Move the template over to the opening side
of the door frame and make sure that the
template is tight into the corner.
Device XSA 5003 SV to a steel door
