AERF WIRELESSBAND 1.0 Instruction Manual

EN
IP55 2 yrs
100m 1 Ch
Output
Battery
1. GENERAL
One channel wireless system communication for either resistive, mechanical or pneumatical safety edges.
1.1 SAFETY INDICATIONS
- Reaction time < 60ms
- EN13849-1 Cat2 PL-C with TEST.
- Device with SELV/PELV Power Supply

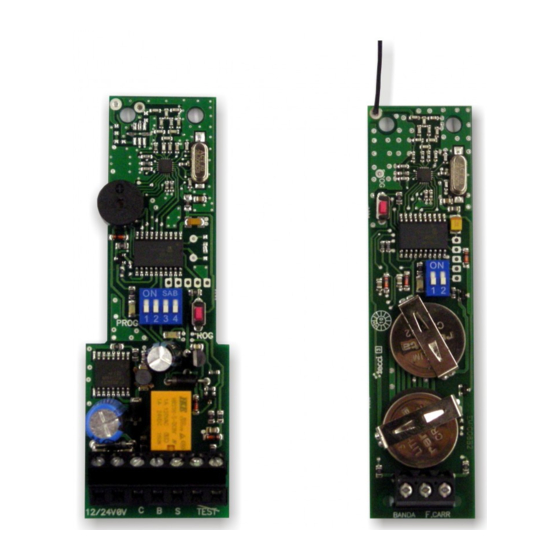

2. TRANSMITTER
4
3
7
6
5
2.1 TRANSMITTER REGULAR CONNECTIONS
1 2 3
Safety
Common Inhibitor
Edge
Select 8K2 or mechanical safety
edge in transmitter options (option 1)
2.2 OTHER TRANSMITTER CONNECTIONS
1 2 3
Safety
Common Inhibitor
Edge
Select 8K2 or mechanical safety
edge in transmitter options (option 1)
2.3 TRANSMITTER OPTION SELECTOR
ON
Resistive safety edge
SAFETY EDGE 1
1 2
TYPE ON
Contact safety edge
1 2
ON
869,85 Mhz (same as receiver)
2
TRANSMITTER
1 2
ON
FREQUENCY
868,95 Mhz (same as receiver)
1 2
WIRELESSBAND 1.0
Instruction Manual
(WIRELESSBAND 1.0)
14 tx
1
1- Terminals
2- Battery1 CR2032
3- Battery 2 CR2032
2
4- LED
5- DIP - Switch
6- Push button
7- Antenna
Contact Inhibition
3. RECEIVER
3
6
4
2
7
5
3.1 RECEIVER CONNECTIONS
1 2 3 4 5 6
VCC1 VCC2 C B S TEST
~ -
~
+/ /
12/24V
AC/DC
OUTPUT TYPE
- Contact (3-5)
- Resistive safety edge 8k2 (3-4)
Safety OK
Fail / Sensor active /
Sensor not memorized
3.2 LED INDICATOR
LED ON - Security OK
LED OFF - Obstacle detected
3.3 RECEIVER OPTION SELECTOR
ON
Enabled (Normative UNE-EN 13849-2)
1
CLASS 2
1 2 3 4
ON
Disabled (Default)
1 2 3 4
ON
869,85 Mhz (same as transmitter)
2
TRANSMITTER
1 2 3 4
ON
FREQUENCY
868,95 Mhz (same as transmitter)
1 2 3 4
ON
N.O. contact
3
RECEIVER
1 2 3 4
TYPE TEST
ON
N.C. contact
1 2 3 4
ON
Enabled
AUTOMATIC
4
1 2 3 4
FREQUENCY
ON
Disabled
AGILITY
1 2 3 4
Translation of the original instructions
1- Terminals
2- LED 1
3- Push button
4- DIP - Switch
1
5- LED 2
6- Buzzer
7- Antenna
7
TEST RELAY
(Choose transmitter
option 3 for contact
NO or NC)
8K2
B
C
B
C
S
S
1 - 2
