QUICK START
40/50L3400U (United States model)
40/50L3400UC (Canada model)
Unpack the box
1. Remove the components and TV from
the box. Save the packing materials in
case you need them later.
2. Remove the documentation for
important information.
Notice
• Subject to Change.
Product specifications, configurations, prices,
system/component/options availability are all
subject to change without notice.
Check the components
• For the United States, the Standard Limited
Your TV comes with:
Warranty is located at
• Remote control and batteries.
support.toshiba.com/warranty.
• Several documents, including the Resource
• For Canada, the terms and conditions of
Guide, and Standard Limited Warranty
the Limited One (1) Year Warranty on Parts and
(L3400U and L3400UM only).
Labour can be found at
• Pedestal stand and hardware.
www.toshiba.ca/support Click on Televisions,
• All other cables and adapters are sold separately.
Select Warranty, then Select Standard Warranty
• If any items are missing or damaged, notify
& Service Plans and Select Flat Panel
Television (bilingual).
your dealer immediately.
Choosing a location for your LED TV
To display your TV on the included Pedestal Stand:
Observe the following safety precautions:
1. Read and follow the pedestal assembly instructions section in this document.
Before beginning pedestal assembly, carefully lay the TV facedown on a
flat, cushioned surface such as a quilt or blanket. Leave the bottom of the
unit protruding over the edge of the surface and assemble the pedestal as
indicated below.
Extreme care should always be used when attaching or removing the pedestal
stand to avoid damage to the display panel.
2. Assemble the pedestal stand with the hardware provided.
3. After assembling the pedestal, place the TV on a sturdy, level surface that can
support the weight of the TV.
4. Be sure to secure the TV to a wall stud, pillar, surface, or other immovable structure.
Always place the TV on a sturdy, level, stable surface that can support
the weight of the unit. Secure the TV using one of the following
methods:
(1) Secure the TV with a mounting screw (Recommended).
• Place the TV on a sturdy surface that has a sufficient
thickness and screw the unit on the surface securely by using
the mounting screw and the fall-prevention screw hole.
• If secured to furniture or other movable objects, the furniture must
be secured to an immovable structure using the method shown in
item 2 below.
(2) Secure the TV with a sturdy strap to a wall stud, pillar, or
other immovable structure. When connecting the strap:
- attach the strap to the TV using the hooks on the back of
the TV, the clips on the pedestal, or the hole in the base of
the pedestal as available.
- make sure the strap is tight, secure, and parallel to the floor.
VESA Mounting Pattern
40" TV
Hook Sturdy strap
Two stand screws
(as short as possible)
(Sample illustration)
40/50L3400UM (Mexico model)
The Resource Guide contains important safety precautions not included in this
document. Please review completely prior to using this product. Complete
instructions are contained in the User's Guide located on Toshiba's web site at :
For United States: support.toshiba.com
For Canada: www.toshiba.ca/support/ceg
For Mexico:
http://www.toshiba.com.mx/tdmConsumo/Informacion/Contacto.aspx?ID=SPT"
A High-Definition signal is needed to receive a High-Definition picture.
Once you have a High-Definition signal you need to connect it to a
High-Definition input on your TV. Not all channels are currently
broadcasting in HD. Standard analog TV channels and HD channels, even
on the same network, broadcast on different channels. (Example: ABC
analog may be on channel 4, while ABC-HD may be on channel 104.)
Get detailed product information:
L3400U series: A comprehensive User's Guide for your model
is available at support.toshiba.com, as well as up-to-date
product information.
L3400UC series: For up-to-date product information,
visit www.toshiba.ca/support/ceg.
For detailed product specifications, Select Product, then
select Model and select Model Number.
L3400UM series:
A comprehensive User's Guide for your model is available at
http://www.toshiba.com.mx/tdmConsumo/Informacion/Co
ntacto.aspx?ID=SPT".
To display your TV using a Wall Bracket:
If you decide to wall mount your LED TV, always use a wall bracket
Listed by an independent laboratory (such as UL, CSA, ETL) that is
appropriate for the size and weight of the TV:
Two people are required for installation to avoid injury or
damage to the TV.
1. Unplug and remove any cables and/or other component connectors
from the rear of the TV.
2. Follow the instructions provided with your wall bracket. Before
proceeding, make sure the appropriate bracket(s) are attached to the
wall and the back of the TV as described in the instructions provided
with the wall bracket.
Always use the screws supplied or recommended by
the wall mount manufacturer.
VESA Mounting Pattern
TV Size
Hole Pattern (H x V)
40"
200mm x 200mm
50"
400mm x 200mm
VESA Mounting Pattern
50" TV
Hook Sturdy strap
Two stand screws
(as short as possible)
(Sample illustration)

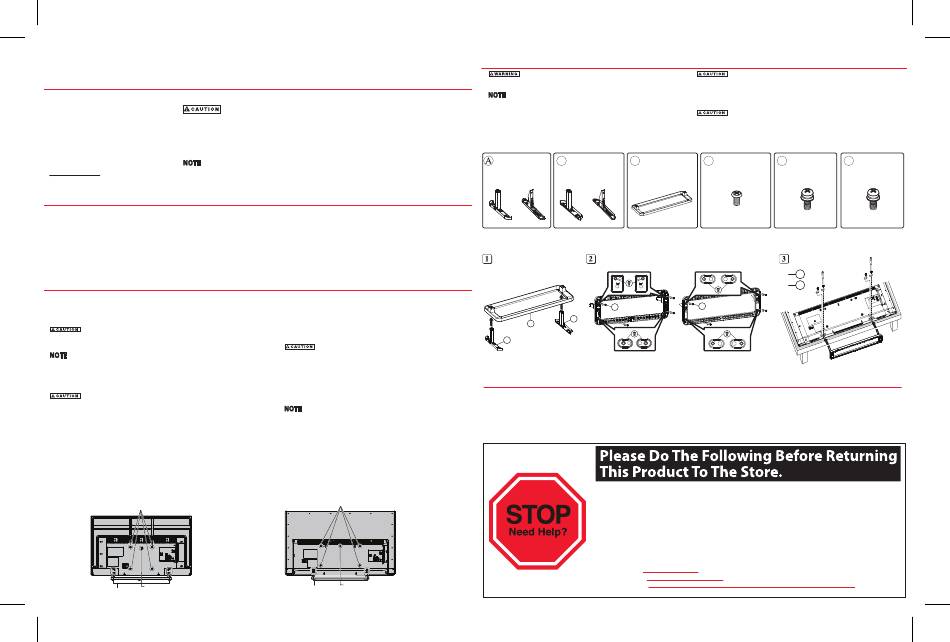

Pedestal Assembly Instructions
To prevent possible electric shock, protect the power
cord from being pinched when attaching the pedestal
stand.
Extreme care should always be used when attaching the
pedestal stand to avoid damage to the LCD panel.
For safety information, please review the User's Guide online:
For United States: support.toshiba.com
For Canada: www.toshiba.ca/support/ceg
For Mexico:
http://www.toshiba.com.mx/tdmConsumo/Informacion/Conta
cto.aspx?ID=SPT"
B
40/50L3400U/UC/UM
40/50L3400U/UC/UM
LEFT x 1
RIGHT x 1
40"
50"
40"
40/50L3400U/UC/UM model
B
C
A
Register Your Toshiba Television
Enhance your ownership experience by taking a few minutes to register your Toshiba product at register.toshiba.com (for L3400U
and L3400UM series) or support.toshiba.ca/warranty/ (for L3400UC series). Completing product registration allows Toshiba to
provide you with product information updates, special offers and promotions. Failure to complete product registration will not
diminish your rights under the Standard Limited Warranty.
Screw Size
M6
M8
L3400U/UC/UM Series
Before beginning pedestal assembly, carefully lay the
front of the LCD Panel face down on a flat, cushioned
surface such as a quilt or blanket. Leave the bottom of the
unit protruding over the edge of the surface and assemble
pedestal as indicated below.
Two people are required for installation to avoid injury or
damage to the TV.
C
D
E
40/50L3400U/UC/UM
40/50L3400U/UC/UM
x 1
x 4
50"
M4 ; L8mm
40''
50''
40"
50"
D
D
If you are experiencing a technical problem or have questions regarding operation, authorized service centers,
warranty or parts, please contact our Customer Support Center at:
For L3400U series (United States model):
(800) 631-3811 From Inside the United States
(949) 583-3050 From Outside the United States
For L3400UC series (Canada model):
1-800-268-3404 From within Canada
For L3400UM series (Mexico model):
9126-5165 and 9126-5166 for Mexico
01-800-712-67-64 lada 800 for Mexico
Many questions regarding parts, service, and warranties can be answered by visiting the Customer Support Section
of our website:
L3400U series: support.toshiba.com
L3400UC series: www.toshiba.ca/support/ceg
L3400UM series: http://www.toshiba.com.mx/tdmConsumo/Informacion/Contacto.aspx?ID=SPT"
THANK YOU
F
40L3400U/UC/UM
50L3400U/UC/UM
x 4
x 4
M4 ; L12mm
M5 ; L10mm
E
F
