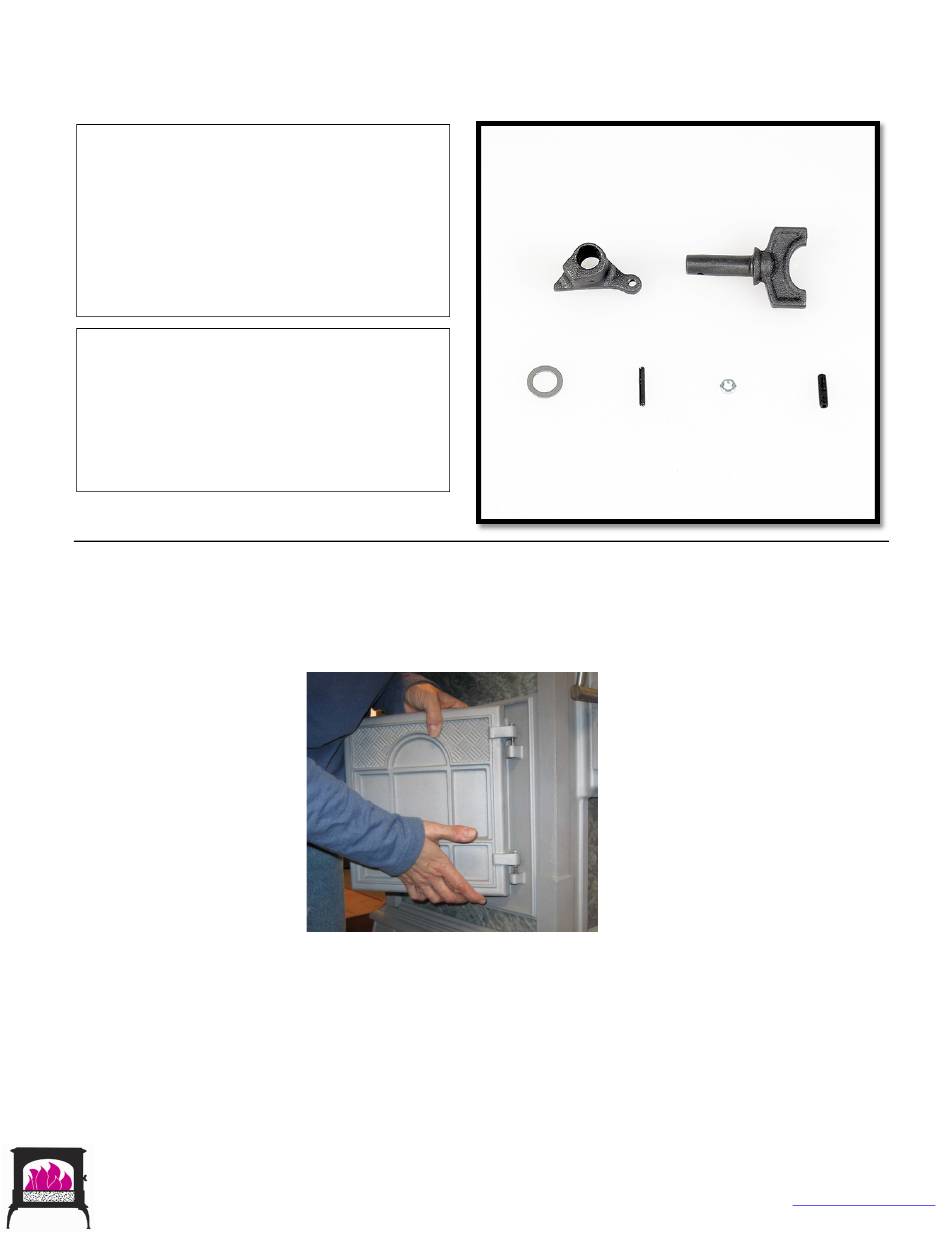

Part#W-232/W-233: Door Latch and Knob Replacement

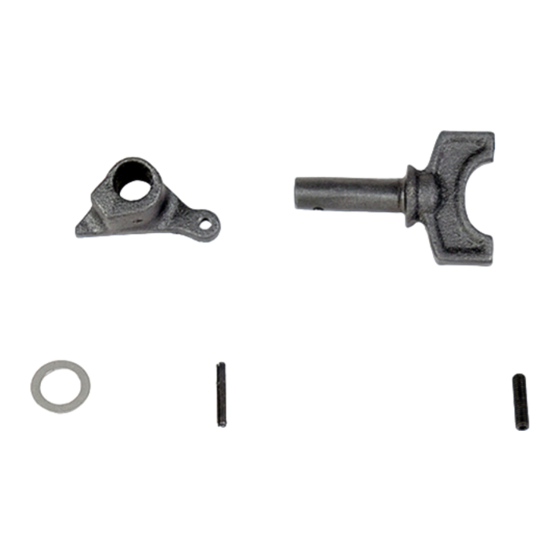

Parts Needed:

(1) W-232 Knob part
(1) W-233 Latch part
(1) 1/8" x 7/8" Roll pin
(1) Set screw
(1) Nut

Tools Needed:

5/32" Hex key wrench
3/32" Hex key wrench
PB Blaster or similar penetrating liquid
Ball peen hammer
3/8" Wrench
1.
Make sure the stove is cool.
2.
Remove the door from the stove. Open the door fully and lift straight up. It may be
helpful to move the door back and forth while lifting.
3.
Place the door face down on a suitable work surface. Spray the set screw (on the side of
the latch) with penetrating liquid to help loosen it. Do not spray liquid on the door stone
(Keystone) as it may cause staining.
Woodstock
Soapstone
Company, Inc.
Rev. Date 7/23/2021
Model 204 Keystone, 202 Palladian
66 Airpark Rd., West Lebanon, NH 03784
Phone: 1-800-866-4344
Email:
info@woodstove.com
Web: www.woodstove.com
