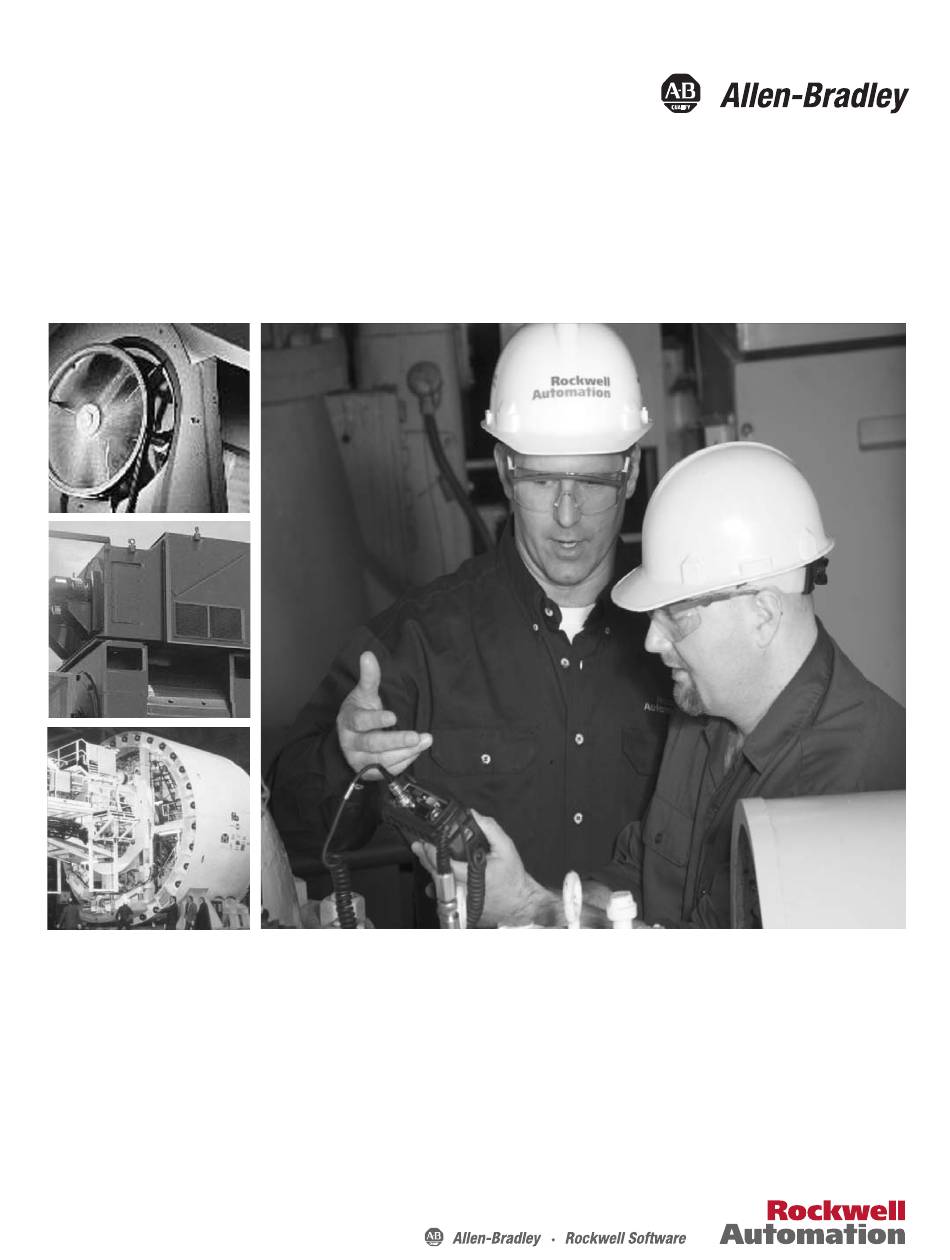

- Page 1 User Manual Run Up Coast Down Extension Module for the Dynamix 2500 Data Collector Catalog Number 1441-DYN25-MRUC...
- Page 2 In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.
-
Page 3: Table Of Contents
Delete Run Up/Coast Down Files ....... . . 45 Index Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... - Page 4 Table of Contents Notes: Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
-
Page 5: Optional Extension Modules
The RUCD test records and analyzes data from intermittent events and transient vibration signals from non-steady state machines. Additional Resources on page 6 for a listing of available publications. (1) This is an activation license for the Dynamix 2500 data collector. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... -
Page 6: Additional Resources
Provides declarations of conformity, certificates, and other certification details. You can view or download publications at http://www.rockwellautomation.com/ literature. To order paper copies of technical documentation, contact your local Allen-Bradley distributor or Rockwell Automation sales representative. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... -
Page 7: Install An Extension Module
1. Open the base cover at the bottom of the Dynamix 2500 data collector. 2. Place the extension module SD card contact side-up into the unit until it is firmly seated in place. 3. Close the base cover. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... - Page 8 7. Press F1 (Extn Mgr). The Extension Manager screen appears showing the current extension module installations. 8. Press 0 (Shift) to display the Install extension function. 9. Press F2 (Install) to install the new extension module. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
-
Page 9: Uninstall Extension Modules
1. Press 0 (Shift) from the Setup Utility screen to display the Extension Manager function. The Extension Manager function remains on the screen for about three seconds after releasing 0 (Shift). Extension Manager 2. Press F1 (Extn Mgr). Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... - Page 10 This screen lists the extension modules currently installed and the on the unit. 3. Select the extension module you want to uninstall and press F3 (Select). F3 (Select) toggles the selection on and off. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
- Page 11 6. Press F2 (Yes) to uninstall the extension module. 7. Press F4 (Esc) to exit the Extension Manager screen. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
-
Page 12: Manage Extension Modules
The F2 (Hide) toggles between Hide and Show depending if the selected extension module is hidden or not. You have to exit and re-enter the Extension Manager after hiding an extension module to have the Show function appear. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... -
Page 13: Extension Module Battery Status Indicators
Table 1 - Extension Module Battery Icon Descriptions Battery Icon Meaning Battery status is good: >30% life remaining. Battery status is low: >10% life remaining. Battery status is very low: <10% life remaining. Battery is charging. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... - Page 14 Chapter 1 Installing Optional Extension Modules Notes: Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
- Page 15 (increase in speed), coast down (decrease in speed), or other applications causing transient phenomena. You use the data to analyze a machine’s critical speeds and resonant frequencies. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
- Page 16 The recorded data is saved in the form of a Microsoft .wav time waveform file. You can analyze this file and viewed in a variety of different formats including: • Bode Plot • Nyquist Plot • Table • Waterfall • Spectrogram Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
-
Page 17: Set Up Run Up/Coast Down Measurements
4. Select or type the parameter value. 5. Press Left arrow to save your selection. 6. Press F2 (Save) to save the current settings to a file. Save Run Up/Coast Down Measurements on page 40 for details. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... - Page 18 • Coast down -The data collection starts when the machine speed falls below Stop Spd. • Manual - Manually start data collection by pressing F4 (Start). No tachometer signal is required for this mode. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
-
Page 19: Collect Run Up/Coast Down Measurements
1. Using the a tachometer cable, connect the reference input device to the POWER/USB/TRIGGER connector and the transducer to connector A. 2. Align the reference input device (tachometer, optical tachometer, or strobescope) to capture shaft speed. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... - Page 20 Press F4 (Back) to return to the RUCD - Setup screen and increase the Range setting. Data collection is complete when the specified Stp Speed or Maximum Acquisition Time is reached, or you press F3 (Stop). Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
- Page 21 Displays the magnitude and phase over a varying rpm. Displaying Measurements by Using a Bode Plot on page Nyquist Displays the selected orders as complex data. Displaying Measurements Using a Nyquist Plot on page Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
-
Page 22: Displaying Measurements By Using A Bode Plot
2. Select the parameter and press the Right arrow to open a list of values. 3. Select or type in the parameter value. 4. Press the Left arrow to save your selection. Bode Plot Parameters on page 23 to help you configure the parameters. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... - Page 23 • Linear - The plot grid centers are linearly spaced in Y between the centers of the first and last grid. • Log - The plot grid centers are logarithmically spaced in Y between the centers of the first and last grid. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
-
Page 24: Display The Bode Plot
• To sequence through the traces, press the Up and Down arrows. The order number of the current trace is displayed in the top left corner of the screen. To move the cursor along the trace, press the Left and Right arrows. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... -
Page 25: Displaying Measurements Using A Nyquist Plot
4. Press the Left arrow to save your selection. Use the descriptions in Nyquist Plot Parameters on page 26 to help you configure the parameters. 5. When you are finished, press F3 (Display) to display the Nyquist plot. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... - Page 26 The order numbers to be tracked and displayed on the plot. .001…166 orders This value cannot exceed the Max No Orders value set in the RUCD Setup screen. Run Up/Coast Down Setup Parameters on page Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
-
Page 27: Display The Nyquist Plot
Display the Table on page 30 for more information. • To display the data in a Bode plot, press 0 (Shift) and then F1 (Bode). Display the Bode Plot on page 24 for more information. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... -
Page 28: Displaying Measurements In Table Format
Sets the stop speed of the recorded data for the table. 10…3600 rpm This defaults to the Stop Spd value set in the RUCD Setup screen. Run Up/Coast Down Setup Parameters on page Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... - Page 29 The order numbers to be tracked and displayed in the table. .001…166 orders This value cannot exceed the Max No Orders value set in the RUCD Setup screen. Run Up/Coast Down Setup Parameters on page Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
-
Page 30: Display The Table
Nyquist plot, press 0 (Shift) and F4 (Bode). Display the Bode Plot on page • To display the data in a Nyquist plot, press 0 (Shift) and F1 (Nyquist). Display the Nyquist Plot on page Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... -
Page 31: Displaying Measurements Using A Waterfall
Sets the stop speed of the recorded data for the plot. 10…3600 rpm This defaults to the Stop Spd value set in the RUCD Setup screen. Run Up/Coast Down Setup Parameters on page Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... - Page 32 Your selection affects the Freq Range and LF Cutoff parameters. Freq. Range (EU) The maximum frequency for the measurement. 10…2000 Hz The frequency range is determined by the X-axis parameter. 600…120000 CPM .001…166 Orders Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
-
Page 33: Display The Waterfall Plot
2. Select or type in a parameter value. 3. Press the Left arrow to save your selection. Use the descriptions in Waterfall Plot Setup Parameters on page 34 to help you configure the parameters. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... - Page 34 Cursor Movement Use the Up and Down arrows to sequence through the displayed spectra. The active spectrum displays in green. The zero positions of the X and Y-axis move to Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
- Page 35 After the highest zoom level is reached, the above procedure will cause you to zoom out. There are more zoom levels available when there are fewer spectra displayed in the plot. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
-
Page 36: Displaying Measurements Using A Spectrogram
Spectrogram Plot Parameter Descriptions on page 37 to help you configure the parameters. 5. When you are finished, press F3 (Display) to display the Spectrogram plot. Display the Spectrogram Plot on page 38 for more information. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... - Page 37 • Hz - Displays spectra in Hertz, cycles per second. • CPM - Displays spectra in cycles per minute. Orders • Orders - Displays spectra in orders of the operating speed. Your selection affects the Freq Range and LF Cutoff parameters. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
-
Page 38: Display The Spectrogram Plot
Use the descriptions in Spectrogram Plot Setup Parameters on page 39 help you configure the parameters. 4. When you are finished and ready to display data, press F3 (Display) to view the Spectrogram. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... - Page 39 • Use the Up and Down arrows to sequence through the displayed spectra. • Use the Left and Right arrows to move the cursor on the active spectrum. Press P to quickly move the cursor to the next significant peak. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
-
Page 40: Save Run Up/Coast Down Measurements
3. When the entry is complete, press F4 (OK). The setup parameters are saved along with the measurement IMPORTANT when you press F4 (Save) on the RUCD - Save Data screen. 4. When you are finished, press F1 (Cancel). Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... -
Page 41: Recall A Setup
Follow these steps to recall a setup. 1. Select RUCD on the Main Menu and press Enter. The RUCD screen appears. 2. Select Recall and press Enter. The RUCD - Load Setup screen appears. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... - Page 42 You can edit the settings or start collecting data: • For information on editing the settings, see Set Up Run Up/Coast Down Measurements on page • For information on collecting RUCD measurements, see Collect Run Up/Coast Down Measurements on page Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
-
Page 43: Review Run Up/Coast Down Measurements
The RUCD - Review Data screen appears. 3. Select the filename that you want review and press F3 (Open). If you select a .wav file, the RUCD - WAV Setup screen appears. Otherwise the appropriate plot setup screen appears. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... - Page 44 The speed used in the .wav file to start collecting data. These parameters are not available if Mode is set to Manual. Stop Spd (RPM) The speed used in the .wav file to stop collecting data. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
-
Page 45: Screen Capturing
2. Select Review Data to delete a measurement or Recall Data to delete a setup and press Enter. The RUCD - Review Data screen appears. 3. Select the appropriate filename or select all to delete all the files. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011... - Page 46 Chapter 2 Run Up/Coast Down Extension Module 4. Press 0 (Shift) and F4 (Delete) to delete the selected files. 5. Press F2 (Yes) to delete. Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
- Page 47 19 deleting data 45 LF Cutoff 23 Display Select screen 21 license Nyquist plot 25 extension module 11 Nyquist plot screen 27 Lines 32 overview 15 recalling setup 41 Review Data screen 43 Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
- Page 48 Stop Spd 44 Stop Spd 37 Time Interval 37 X-axis 37 Y-axis 39 Z-axis 39 X-axis 32 Speed Interval 23 Start Spd 19 Stop Spd 19 Y-axis 23 Table Format 28 Table parameters Z-axis 34 Rockwell Automation Publication 1441-UM006A-EN-P - May 2011...
