- Page 3 EQUIPMENT INFORMATION INTRODUCTION COMPONENT DESCRIPTIONS OPERATOR INSTRUCTIONS INSTALLING + ADJUSTING SKELETAL™ CUMMERBUND INSTALLING + ADJUSTING SINGLE STRAPS INSTALLING BALLISTIC PROTECTION DONNING + DOFFING ADJUSTING RIDE HEIGHT (SHOULDER STRAPS) OPTIONAL ACCESSORIES 6x6” SIDE POUCH (SKELETAL™ ATTACHMENT) 6x6” SIDE POUCH (FRONT CARRIER ATTACHMENT) 6x12”...
-
Page 4: Equipment Information
EQUIPMENT INFORMATION... - Page 5 EQUIPMENT INFORMATION INTRODUCTION The Jumpable Plate Carrier™ (JPC) is a lightweight and minimal armor vest designed for maximum mobility, weight savings, and packability. At less than one pound for the entire carrier, the JPC™ offers a variety of configuration options to suit an operator’s needs in terms of protection and comfort. It features our Skeletal™ cummerbund system with our patent-pending Integrated Attachment System that allows pouches to be mounted on both the inside and outside of the cummerbund, shedding unnecessary weight and bulk while improving ventilation.

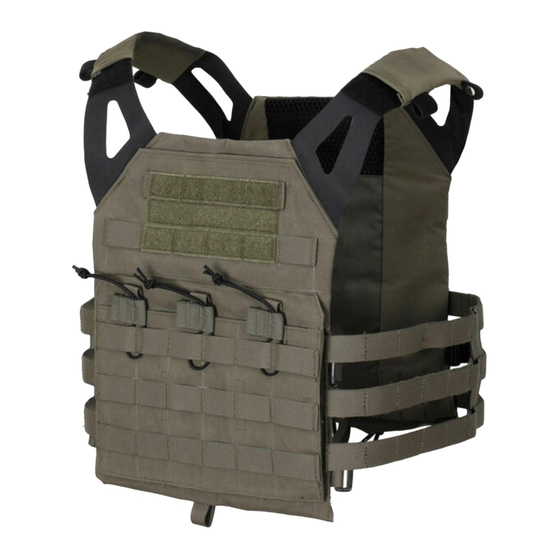

- Page 6 JUMPABLE PLATE CARRIER (JPC) COMPONENT DESCRIPTIONS Vest shown disassembled to depict separate components. Not shown to scale. 1. FRONT CARRIER Supports low-vis protection up to Level IV standalone plates. MOLLE webbing on outer surface. Holds three magazines. Easy-access top admin pouch for storage.
- Page 7 EQUIPMENT INFORMATION 3. 3-BAND CUMMERBUND Our Skeletal™ cummerbund that enhances performance by cutting weight without sacrificing functionality. Allows pouches to be mounted on the inside or outside of cummerbund. Comes with elastic cords to install and secure to the vest (not pictured). 4.
-
Page 8: Operator Instructions
OPERATOR INSTRUCTIONS... - Page 9 OPERATOR INSTRUCTIONS INSTALLING + ADJUSTING SKELETAL™ CUMMERBUND 1. Lay rear carrier flat as shown. Insert cummerbund ends through three 2. Using included elastic cord, weave together the ends of the Skeletal™ openings near the side edges of the carrier. Ensure that loop panels of cummerbunds from the top to the bottom in a zigzag pattern.
- Page 10 JUMPABLE PLATE CARRIER (JPC) INSTALLING + ADJUSTING SINGLE STRAPS 1. Lay rear carrier flat as shown. Locate strap buckles near side edges of carrier. Ensure that loop panels of strap are facing up. Insert non hook- and-loop end of single strap up and through buckle as illustrated.
- Page 11 OPERATOR INSTRUCTIONS INSTALLING BALLISTIC PROTECTION 1. Lay carrier flat as shown. Open carrier along bottom edge of interior side. Locate plate pocket. 2. Insert ballistic protection. JPC supports low-vis protection up to Level IV standalone plates. If inserting plates, the concave side of the plate should be facing towards body when the vest is worn.
- Page 12 JUMPABLE PLATE CARRIER (JPC) DONNING + DOFFING 1. Remove any headgear. Place vest over head as shown, centering both 2. Open front panel flap of carrier and attach hook panels of front and back panels on the body. cummerbund (or single straps) to loop panels of front carrier.
- Page 13 OPERATOR INSTRUCTIONS ADJUSTING RIDE HEIGHT (SHOULDER STRAPS) 1. Front and back ballistic plate vertical position (ride height) is adjusted by changing the length of the shoulder straps where the front and back carriers connect. To change setting, begin by rolling back stretch fabric of shoulder cover as shown.
-
Page 14: Optional Accessories
OPTIONAL ACCESSORIES... - Page 15 OPTIONAL ACCESSORIES 6x6” SIDE POUCH (SKELETAL™ ATTACHMENT) 1. Lay cummerbund flat as shown. Position side plate pouch under 2. Weave the hook strap of the plate pouch through the webbing openings cummerbund so that the pouch straps open towards the top edge and of the cummerbund and pouch.
- Page 16 JUMPABLE PLATE CARRIER (JPC) 6x6” SIDE POUCH (FRONT CARRIER ATTACHMENT) 1. Lay front carrier flat as shown. Open front flap of carrier. Locate two 2. Secure pouch to buckles by weaving straps back through webbing on buckles on side edge of carrier. Position side pouch so that straps face pouch and securing hook and loop panels together as shown.
- Page 17 OPTIONAL ACCESSORIES 6x12” FLANK POUCH 1. Lay front carrier flat as shown. Unsnap all three pouch straps as 2. Weave the pouch straps through the webbing openings of the shown and lay underneath Skeletal™ cummerbund as shown. Position cummerbund and pouch. The strap should first go through the opening flank pouch so that the straps face upward and opening of pouch opens in between the two layers of cummerbund webbing, then through the towards the rear of the carrier.
- Page 18 JUMPABLE PLATE CARRIER (JPC) MBITR/MAG POUCH 1. The MBITR/mag pouch comes in both left and right side versions for 2. Close front flap to ensure proper placement. This pouch accessory both sides of the front carrier. To install pouch, lay front carrier flat as is compatible with both Skeletal™...
