Aeropro AP7335S Operating Instruction And Safety Manual

Operating Instruction and safety manual

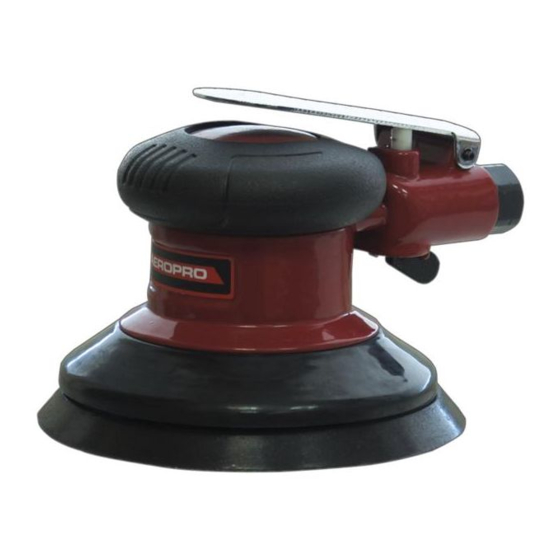

AP73 35S W/ 5" Sanding Pad

Residual risks

Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The following
hazards may arise in connection with the tool's construction and design:
1. Damage to lungs if an effective dust mask is not worn.
2. Damage to hearing if effective hearing protection is not worn.
3. Health defects resulting from vibration emission if the power
tool is being used over longer period of time or not adequately
managed and properly maintained.
4. Wear eye protection.

Technical data:

Sanding Pad
Free speed
Air consumption
Operating pressure
Air inlet size

Important Safety Rules

1. Always wear safety goggles or glasses.
2. Always ensure machine is switched off before connecting to air supply.
3. Disconnect any machine from the air supply before changing blades or discs, and before servicing any type of
machine.
4. Always keep your air tool clean and lubricated. Daily lubrication is essential to avoid internal corrosion and possible
failure.
5. Do not wear watches, rings bracelets or loose clothing when using air tools.
6. Using only light weight coil hoses from a tool to the wall or compressor coupling. Do not fit quick change couplings onto
the machine as vibration can cause the coupling to fail.
7. Do not overload the machine. Allow the tool to operate at its optimum speed for maximum efficiency.
8. Do not increase the air pressure above the manufacturers recommended level, as excessive overload can cause the
machine casing to split. Also this creates excessive wear on moving parts and possible failure.
9. In the interests of safety and possible damage to the machine/operator, always ensure that the machine has stopped
before putting it down after use.
10. Always ensure that the work piece is firmly secured leaving both hands free to control the machine.
IMPORTANT:
Upon receipt of the product, read and follow all safety
rules, operating instructions before first use it. And retain
this manual for future reference.
5" (125mm) or " (150mm) Weight
6
10,000rpm
4.5cfm(128 l/min)
90psi(6.3bar)
1/4"
AP7336S W/ 6 " Sanding Pad
A-Weighted sound pressure level
Sound power level
Vibration in the handle
Air hose size
2017
1.54Lbs(0.7kgs)
82.5 dB(A)
90.5 dB(A)
2
3.06 m/s
3/8"
